Tuba 30 Build (I upgraded Bill plans) Thank me later Bill

#1 Post by darklango »

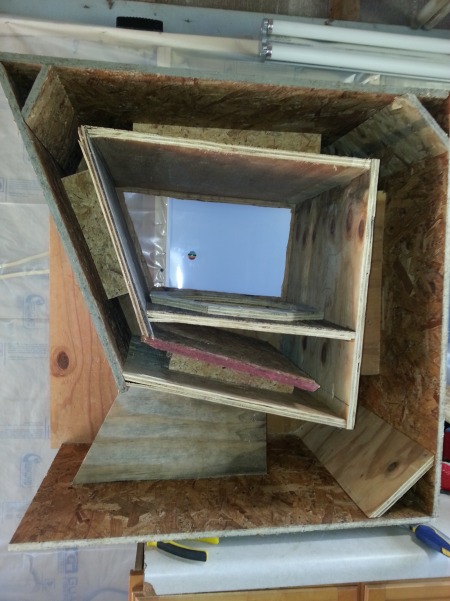

This build consist of wood glue, Asian Ply1/2, Asian Ply 3/4, and OSB 1/2. Cant wait to hear this baby :hyper: :hyper: :hyper: :hyper: :hyper: :hyper: :hyper:
Attachments
Top
User avatar
Bill Fitzmaurice
Site Admin
Posts: 29016
Joined: Tue May 02, 2006 5:59 pm

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#2 Post by Bill Fitzmaurice »

OSB? :wall:
Top
darklango
Posts: 11
Joined: Sat Apr 13, 2013 8:45 pm

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#3 Post by darklango »

Bill Fitzmaurice wrote:OSB? :wall:

:D :D

I wanted to practice b4 we did the real box. But I'm curious on how its sounds now
Top
miked
Posts: 1209
Joined: Fri Oct 23, 2009 4:18 am
Location: San Antonio, TX

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#4 Post by miked »

I hear you on practicing before using the expensive wood. But don't expect this box to last long. OSB will delaminate quickly with the pressure the box will be under. PL probably filled all the gaps in the OSB, but the box won't last long if you move it much.

Hopefully you're building the real thing out of 1/2" Baltic Birch.
Top
User avatar
Ian Westwood
Posts: 301
Joined: Wed Jan 16, 2013 11:35 am
Location: Apple Valley, CA

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#5 Post by Ian Westwood »

miked wrote:PL probably filled all the gaps in the OSB
Not sure if it is my eyes, but I can't see much evidence of PL squeeze out... or any glue for that matter. Is this a dry fit / practice build?

Authorized BFM Builder
Top
sine143
Posts: 3066
Joined: Sat Feb 06, 2010 3:27 pm
Location: Raleigh NC

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#6 Post by sine143 »

The forst section in the horn also does not look quit right to me. Notice how as it goes around the bend the horn gets smaller. Id double check the measurments
Built:
2x Tuba 30s delta12lf loaded (gone)
4x Otop12 d2512 loaded
8x t48s (18, 18, 24, 24, 30, 30) 3015lf loaded
2x AT (1 mcm, 1 gto 804)
2x SLA Pro (dayton pa6, 6 goldwood piezo loaded)
1x bastard XF208

2x OT212 (delta pro 450a loaded, eminence psd)
Top
User avatar
Ian Westwood
Posts: 301
Joined: Wed Jan 16, 2013 11:35 am
Location: Apple Valley, CA

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#7 Post by Ian Westwood »

sine143 wrote:Notice how as it goes around the bend the horn gets smaller
I think that is correct... as far as I know the T30 is the only one like this. Not sure why, or what you would call the restriction in speaker building parlance?

Authorized BFM Builder
Top
miked
Posts: 1209
Joined: Fri Oct 23, 2009 4:18 am
Location: San Antonio, TX

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#8 Post by miked »

"Horn path clogification?" :lol:
Top
sine143
Posts: 3066
Joined: Sat Feb 06, 2010 3:27 pm
Location: Raleigh NC

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#9 Post by sine143 »

I remember it being a different flare, but not that drastic reduction in size. You guys are making me take the way back machine to my first build lol

Built:
2x Tuba 30s delta12lf loaded (gone)
4x Otop12 d2512 loaded
8x t48s (18, 18, 24, 24, 30, 30) 3015lf loaded
2x AT (1 mcm, 1 gto 804)
2x SLA Pro (dayton pa6, 6 goldwood piezo loaded)
1x bastard XF208

2x OT212 (delta pro 450a loaded, eminence psd)
Top
User avatar
Michael Ewald Hansen
Posts: 638
Joined: Tue Aug 16, 2011 10:43 am
Location: Denmark

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#10 Post by Michael Ewald Hansen »

sine143 wrote:The forst section in the horn also does not look quit right to me. Notice how as it goes around the bend the horn gets smaller. Id double check the measurments
He built it correctly. The first part is supposed to be wider before the fold than after..

This is from the sketchup:

Last edited by Michael Ewald Hansen on Thu Oct 17, 2013 4:20 pm, edited 1 time in total.
Authorized Builder - Denmark
Check out the BFM Facebook page
Top
88h88
Posts: 1608
Joined: Mon Jul 04, 2011 10:20 am
Location: Coventry, UK

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#11 Post by 88h88 »

If he hadn't said it was a test build I'd almost say this was the perfect troll build. Differing widths of cheap asian ply, OSB, WOOD GLUE... :lol:
4xOT12s, 2xT39s@22", TTLS@18", 2xT60@18"
Top
User avatar
Ian Westwood
Posts: 301
Joined: Wed Jan 16, 2013 11:35 am
Location: Apple Valley, CA

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#12 Post by Ian Westwood »

88h88 wrote:If he hadn't said it was a test build I'd almost say this was the perfect troll build. Differing widths of cheap asian ply, OSB, WOOD GLUE... :lol:
:loler: Troll building. Could this be the beginning of a new internet sport?

Authorized BFM Builder
Top
miked
Posts: 1209
Joined: Fri Oct 23, 2009 4:18 am
Location: San Antonio, TX

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#13 Post by miked »

sine143 wrote:I remember it being a different flare, but not that drastic reduction in size. You guys are making me take the way back machine to my first build lol

YES! Kitchen-builds, FTW!! :clap: Done about a hundred of those myself...don't miss those days one bit. Ever try to get black paint overspray off a white stove? Not fun.
Top
User avatar
Michael Ewald Hansen
Posts: 638
Joined: Tue Aug 16, 2011 10:43 am
Location: Denmark

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#14 Post by Michael Ewald Hansen »

88h88 wrote:If he hadn't said it was a test build I'd almost say this was the perfect troll build. Differing widths of cheap asian ply, OSB, WOOD GLUE... :lol:
:loler: hahaha... Its a starting trend.. Did a certain someone, building t60's, start this?!?!
Authorized Builder - Denmark
Check out the BFM Facebook page
Top
darklango
Posts: 11
Joined: Sat Apr 13, 2013 8:45 pm

Re: Tuba 30 Build (I upgraded Bill plans) Thank me later Bil

#15 Post by darklango »

Ian Westwood wrote:
miked wrote:PL probably filled all the gaps in the OSB
Not sure if it is my eyes, but I can't see much evidence of PL squeeze out... or any glue for that matter. Is this a dry fit / practice build?
A little wood glue, mostly dry fit
Top
