My Table Tuba LS build

Post your build odyssey here.
Post Reply
Message
Author
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

My Table Tuba LS build

#1 Post by AlessandroAU »

Just put the side on my TTLS, here are some of the build pictures :D
Attachments

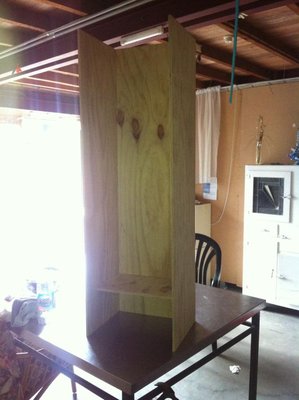

This thing is gonna be huge
This thing is gonna be huge

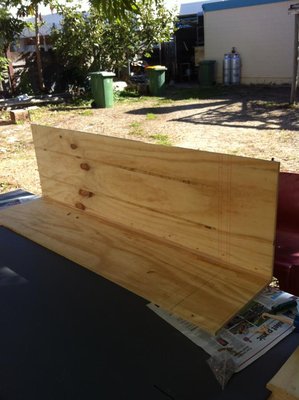

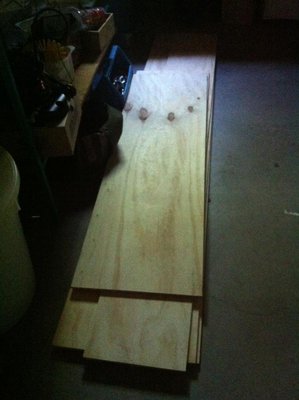

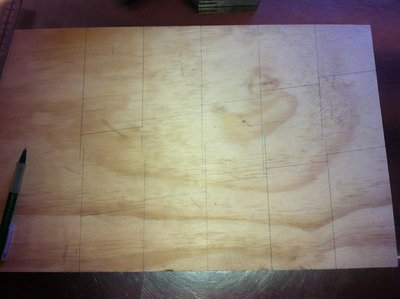

panels ripped to size
panels ripped to size

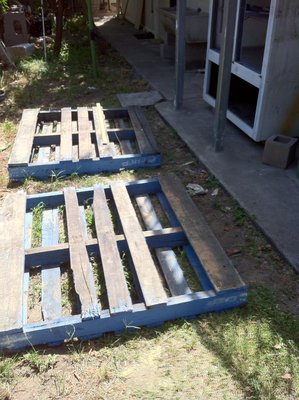

the only other place I am allowed to make with the dust :roll:
the only other place I am allowed to make with the dust :roll:

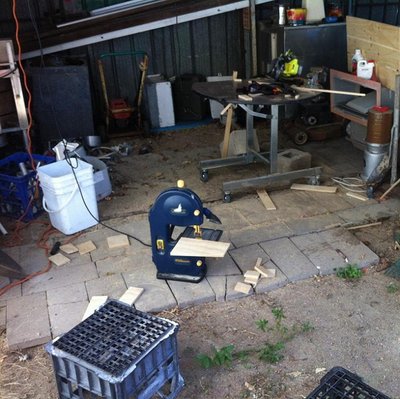

the 'workshop' where I ripped up the panels
the 'workshop' where I ripped up the panels

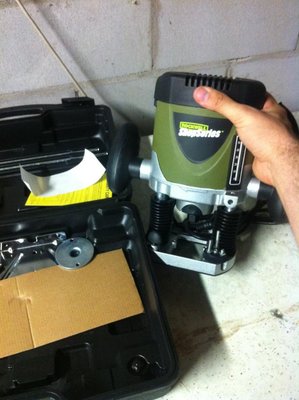

bought some new tools for this project, my first circular saw and router :) my previous build (autotuba) was done only using a $20 jigsaw and it was not much fun.
bought some new tools for this project, my first circular saw and router :) my previous build (autotuba) was done only using a $20 jigsaw and it was not much fun.
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#2 Post by AlessandroAU »

some more pictures
Attachments

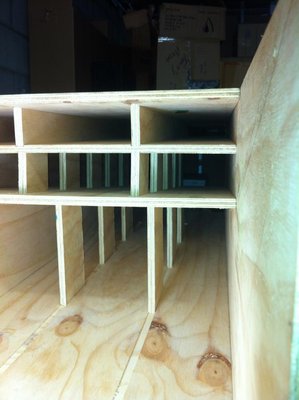

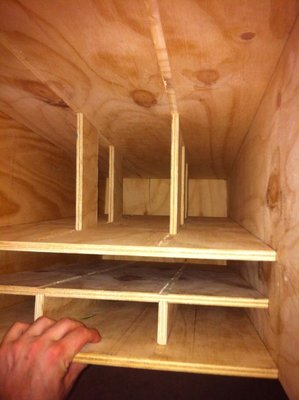

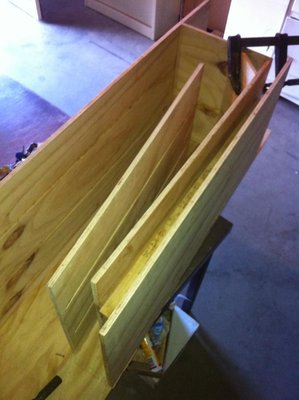

full set of braces
full set of braces
cutting the braces did not take a long as expected. I just used cheap bandsaw and a steady hand, didn't even need sanding afterwards.
cutting the braces did not take a long as expected. I just used cheap bandsaw and a steady hand, didn't even need sanding afterwards.
more dry fitting, I decided to continuous braces for the bottom most for ease and segmented braces for the mid and top I hope this is ok?
more dry fitting, I decided to continuous braces for the bottom most for ease and segmented braces for the mid and top I hope this is ok?
quite happy with how these turned out
quite happy with how these turned out
first time using a router, things went better than expected
first time using a router, things went better than expected
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#3 Post by AlessandroAU »

and more
Attachments

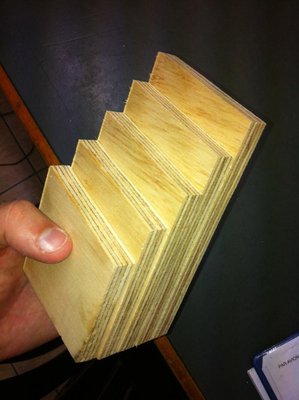

I used this for the braces
I used this for the braces
my build order and techniques might be slightly different than the plans
my build order and techniques might be slightly different than the plans
who needs clamps and jigs when you pre-measured and have lots of screws.
who needs clamps and jigs when you pre-measured and have lots of screws.

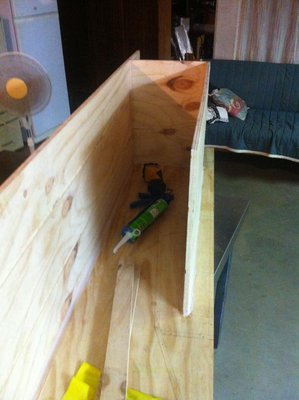

The first panel goes on
The first panel goes on
I ended up redrawing the mid braces in autocad, I modified them so the sides are perpendicular to one of the ends (they are not in the sketchup), this makes measuring and cutting them out easier.
I ended up redrawing the mid braces in autocad, I modified them so the sides are perpendicular to one of the ends (they are not in the sketchup), this makes measuring and cutting them out easier.
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#4 Post by AlessandroAU »

they keep comming
Attachments

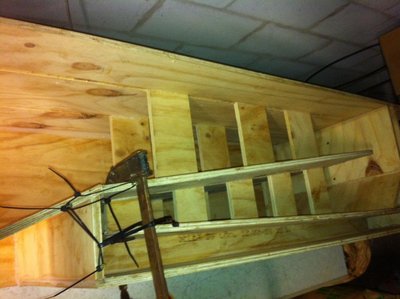

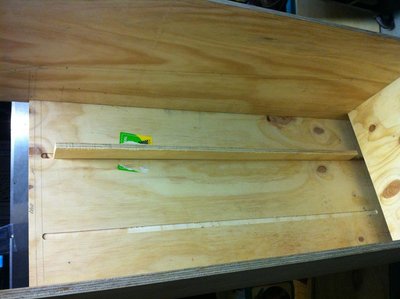

This is how I solved the problem
This is how I solved the problem
I thought about mounting the brace slightly offset but decided against it.
I thought about mounting the brace slightly offset but decided against it.

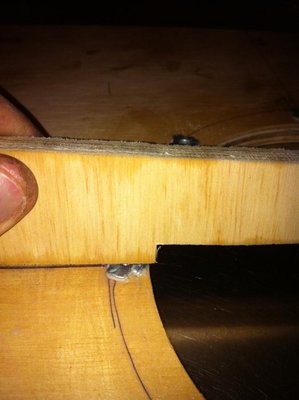

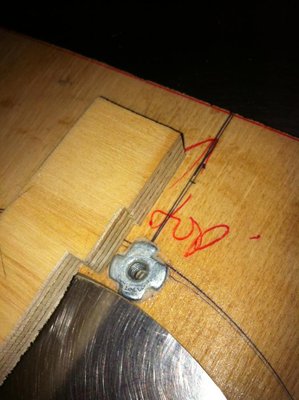

shit, my t-nuts interfere with the brace.
shit, my t-nuts interfere with the brace.

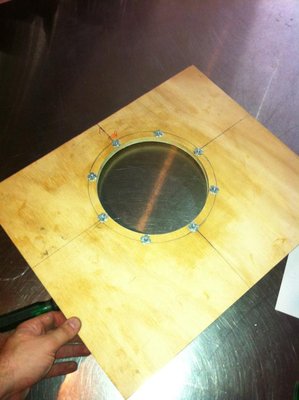

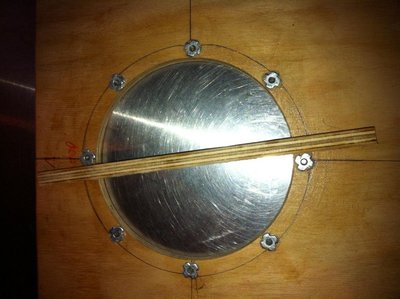

driver cut-out for the 8 inch dcs205-4
driver cut-out for the 8 inch dcs205-4
almost forgot to install panel 4
almost forgot to install panel 4
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#5 Post by AlessandroAU »

more
Attachments

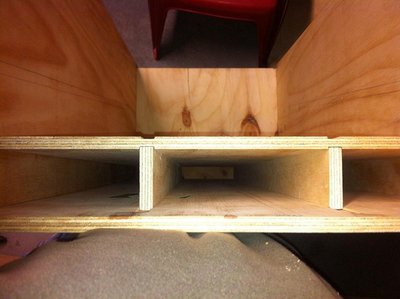

I thought the braces looked quite cool, so I took a bunch of pictures.
I thought the braces looked quite cool, so I took a bunch of pictures.

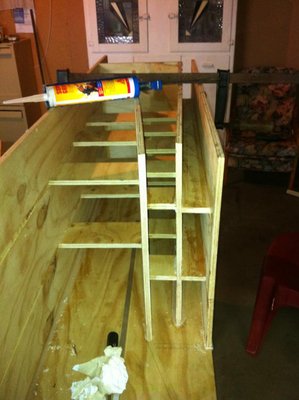

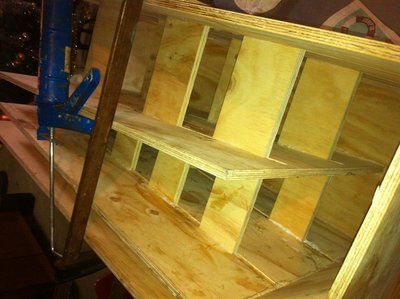

braces are glued, this was SOOOO much easier with dadoing
braces are glued, this was SOOOO much easier with dadoing
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#6 Post by AlessandroAU »

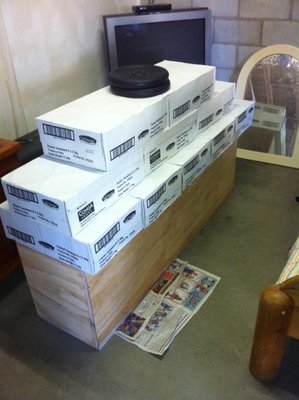

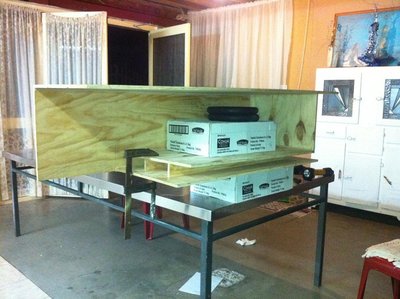

This is how it is sitting at the moment, I don't have any clamps large enough for this thing, but I have plenty of heavy boxes, so I stacked about 200kg on top of it :lol:
Attachments
Top
User avatar
Bas Gooiker
Posts: 752
Joined: Fri Jul 06, 2012 5:05 pm

Re: My Table Tuba LS build

#7 Post by Bas Gooiker »

Looking mighty proffesional for a second build!!! Im impressed.

What a difference the right tools make when doing a complicated build like this.
Life is just a game, don't take it to seriously!
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#8 Post by AlessandroAU »

I have a quick question, I am planning to down fire this thing. Is there an optimum distance from the floor to set it at?
Top
User avatar
Radian
Posts: 2032
Joined: Tue Jul 29, 2008 12:56 pm
Location: Tucson, AZ

Re: My Table Tuba LS build

#9 Post by Radian »

:shock: Have you double-checked the clearance of those two t-nuts underneath the baffle brace?

It looks to me that as the fastener pokes through the t-nut it will end up contacting the brace. That could end up distorting the panels, or busting a glue joint in that area. :fingers:

Other than that, great build so far. Nice use of the router :clap:
Good food, good people, good times.

4 - AT
1 - TT
1 - THT Slim
2 - SLA Pro 4x6 Alphalite
Top
User avatar
Scott Brochu
Posts: 2473
Joined: Sat Mar 10, 2007 11:53 pm
Location: Maine
Contact:
Contact Scott Brochu

Re: My Table Tuba LS build

#10 Post by Scott Brochu »

Radian wrote::shock: Have you double-checked the clearance of those two t-nuts underneath the baffle brace?

It looks to me that as the fastener pokes through the t-nut it will end up contacting the brace. That could end up distorting the panels, or busting a glue joint in that area. :fingers:

Other than that, great build so far. Nice use of the router :clap:
That's the same reason I off set mine so it don't end up on a brace. If so just cut the bolt or put a smaller one in that place.

Agreed, great build. :clap:
Drumming is a way of life.
ME LIKE TO HIT THINGS!
http://billfitzmaurice.info/forum/viewt ... 26&t=11232
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#11 Post by AlessandroAU »

Radian wrote::shock: Have you double-checked the clearance of those two t-nuts underneath the baffle brace?

It looks to me that as the fastener pokes through the t-nut it will end up contacting the brace. That could end up distorting the panels, or busting a glue joint in that area. :fingers:

Other than that, great build so far. Nice use of the router :clap:
I checked the length of the screws under full gasket compression, so no problems there :)

I tried it out this morning, I am impressed!! much the same type of sound as my autotuba but just lower.

I tried watching a movie, but I don't have a high pass filter so I had to turn it down or the driver would bottom out :\. still though at 2v it's plenty loud for normal movie watching :)
Top
2Channon
Posts: 31
Joined: Sun Jan 01, 2012 12:43 am
Location: Columbia, Missouri

Re: My Table Tuba LS build

#12 Post by 2Channon »

Nice. Love the use of router for dadoing braces. :clap:
Top
AlessandroAU
Posts: 23
Joined: Sat Dec 17, 2011 9:50 am

Re: My Table Tuba LS build

#13 Post by AlessandroAU »

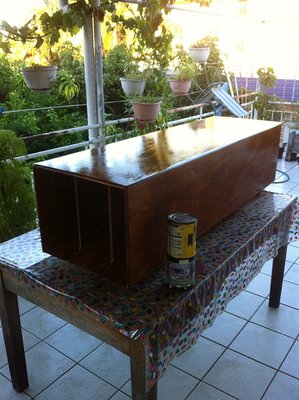

Sooooo I finally ended up finishing my TTLS :)
