A stereo SLA build with 9 drivers each

[cinezaster]

When you build a T18 you need something to come along.
Since I'm more into listening music then having a full blast of sound kicking me out of my couch while watching a movie, I went for a stereo setup of the SLA.
After reading through the plans and some questions asked on the forum I decided to make two cabinets with each 9 full-range 4"inch drivers from McGee
I'm living in Europe and couldn't find the recommended cheap 4" drivers without paying a big shipment fee.
After a long and thorough search and a couple of questions here on the forum I settled on some full range drivers of McGee, so no tweeters where necessary.
I also made a different choice about the design of the cabinet. I like to see the wood and use the multiplex layers as a style element. I also made it myself a bit more difficult by tilting the front panel by 4°.

Next my build process:
The corners of the cabinet are all cut at 45°, this way the layers of the multiplex will make nice corner. The frontpanel is recessed into the side panels.

First fit of panels

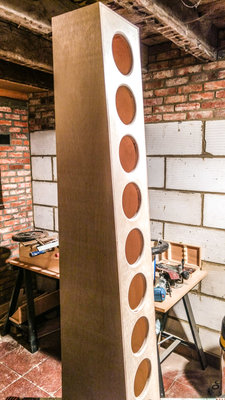

Routing holes in the front

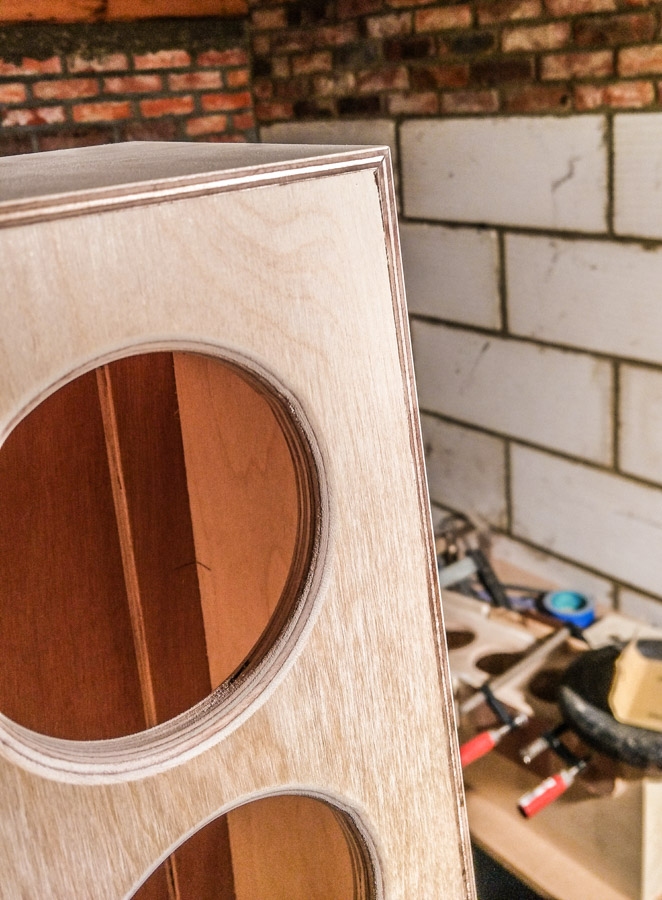

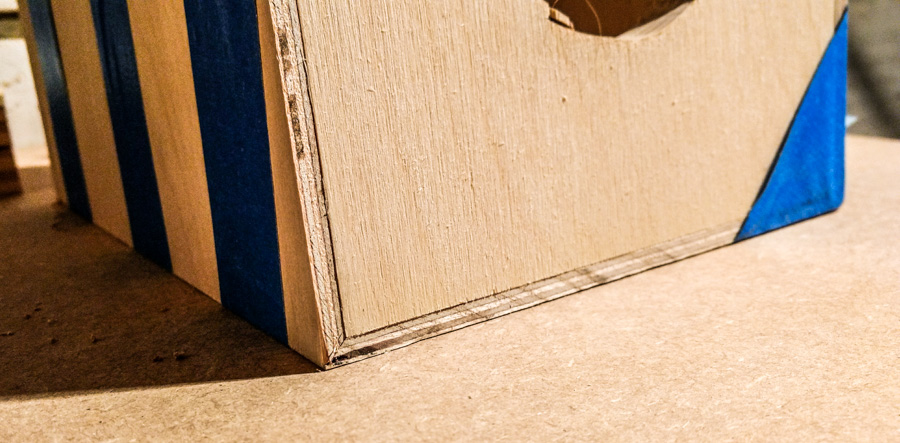

Corner view front panel

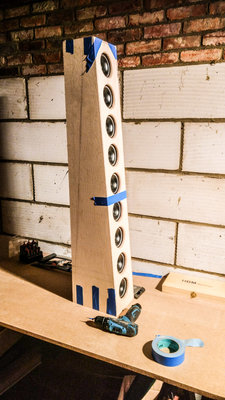

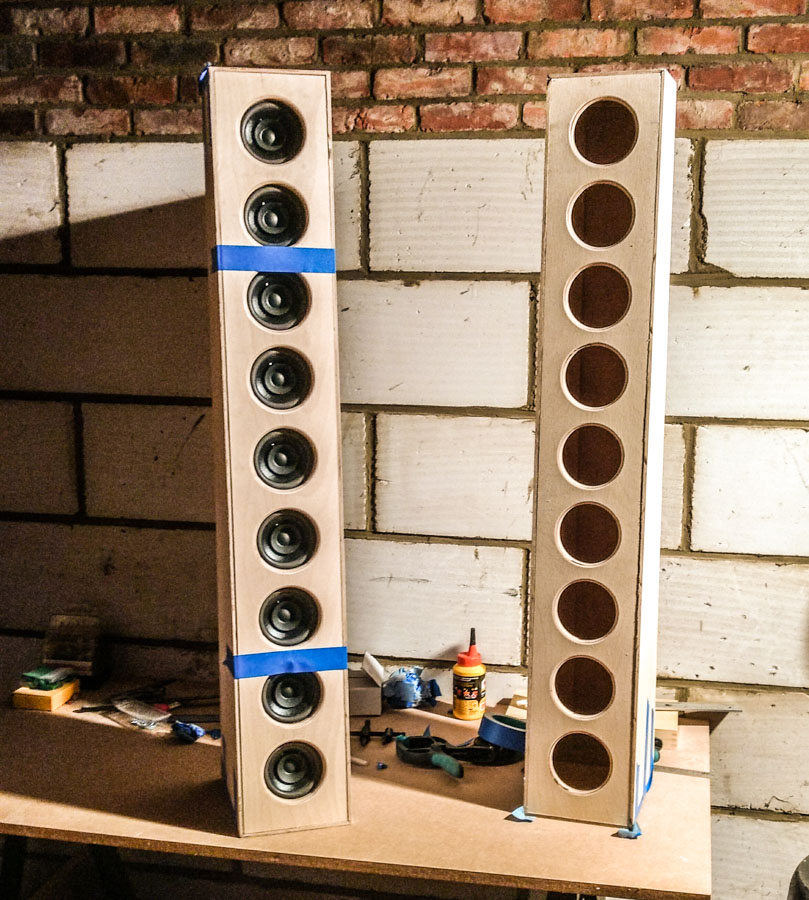

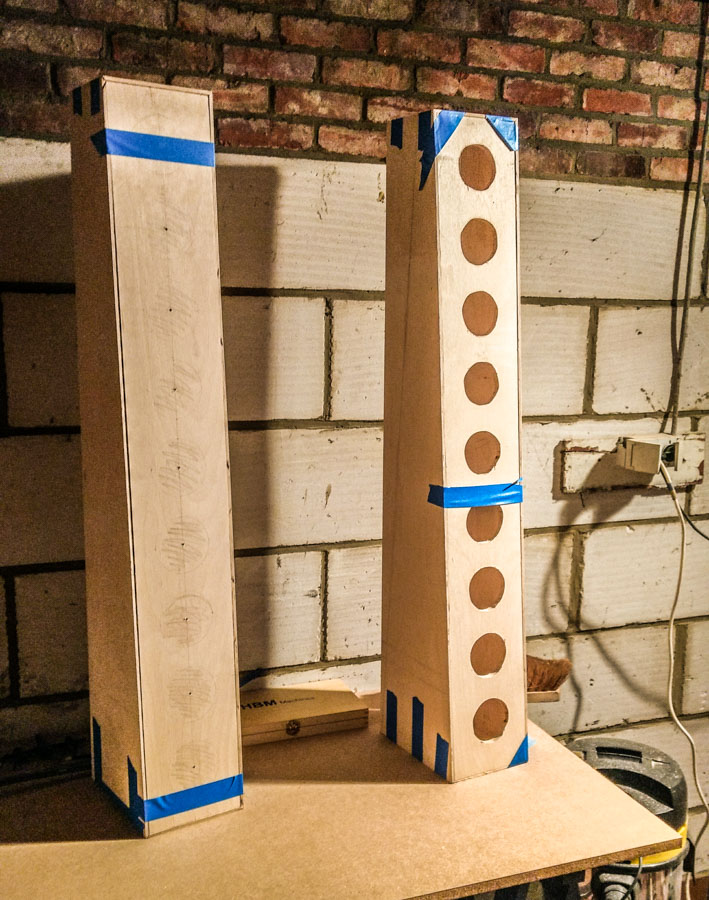

I test fitted the drivers. No glue yet, only hold by the blue tape

Test fitting drivers

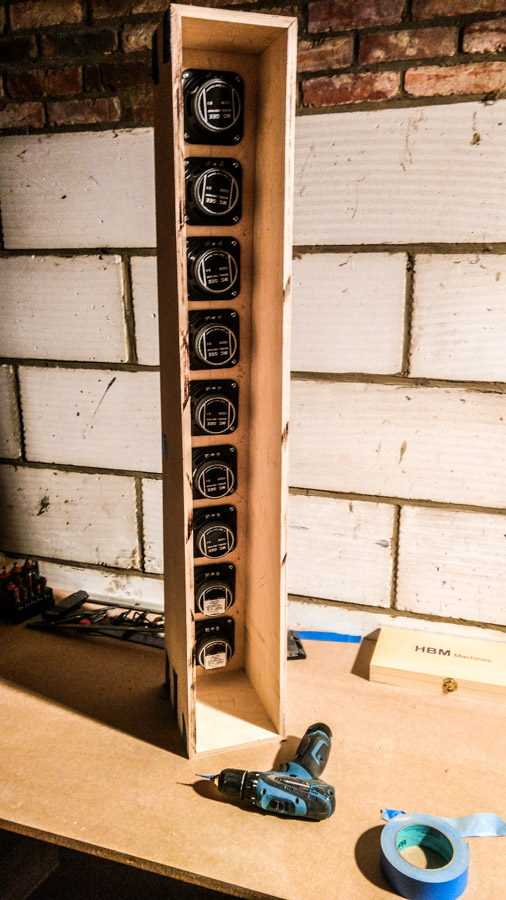

View from back, test fitting drivers

[cinezaster]

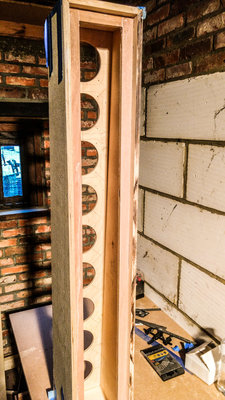

detail of the baffle opening

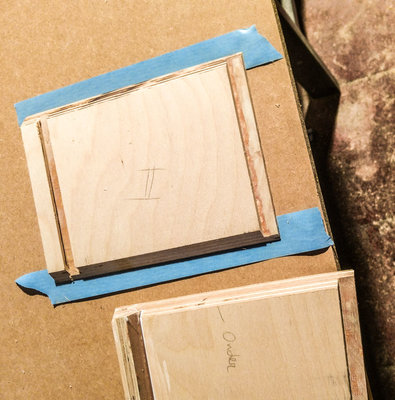

The back flange placed in a dato

Here you can see the dato for the flange and the recess for the frontpanel. I didn't use clamps for the glue-up only tape. I first glued in the flange on the sides, that way the flange works as an index for the bottom and top part when I started to glue them together

Bottom and side ready to receive some glue

They look really big

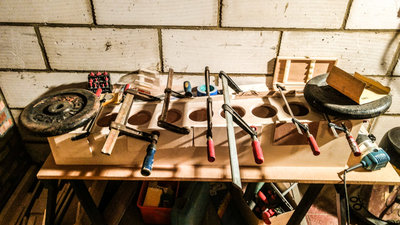

Corners are all glued up.

[cinezaster]

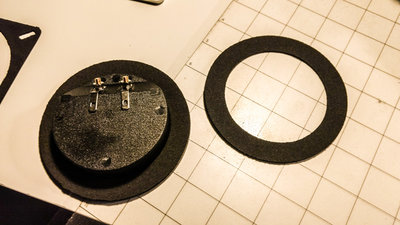

I created my own gaskets from fun foam.

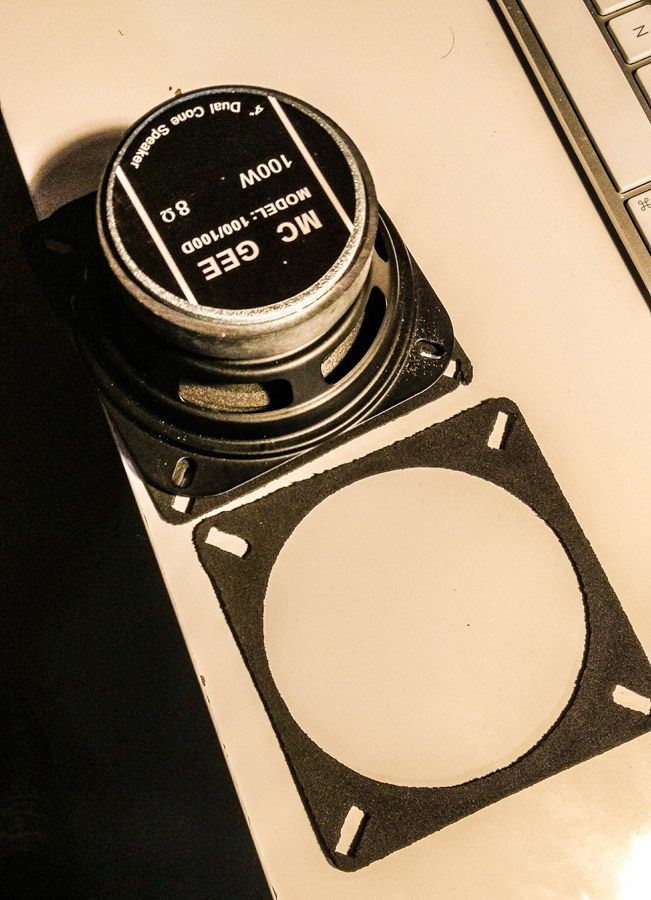

Gaskets made from fun foam cut with my silhouette cutter (small hobby cnc cutter)

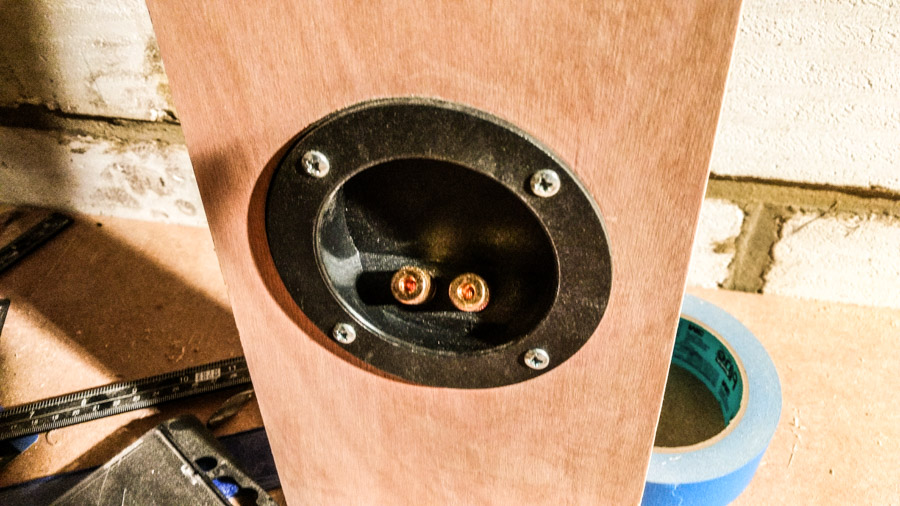

Gasket for the connector

[cinezaster]

Glueing in the front panel

Glue-up of the front panel

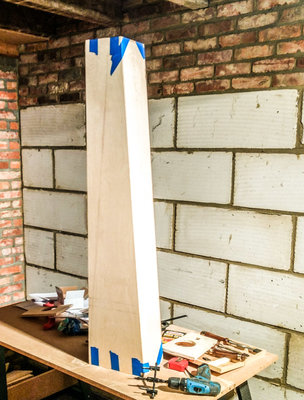

After flush cutting the sides and a bit of sanding.

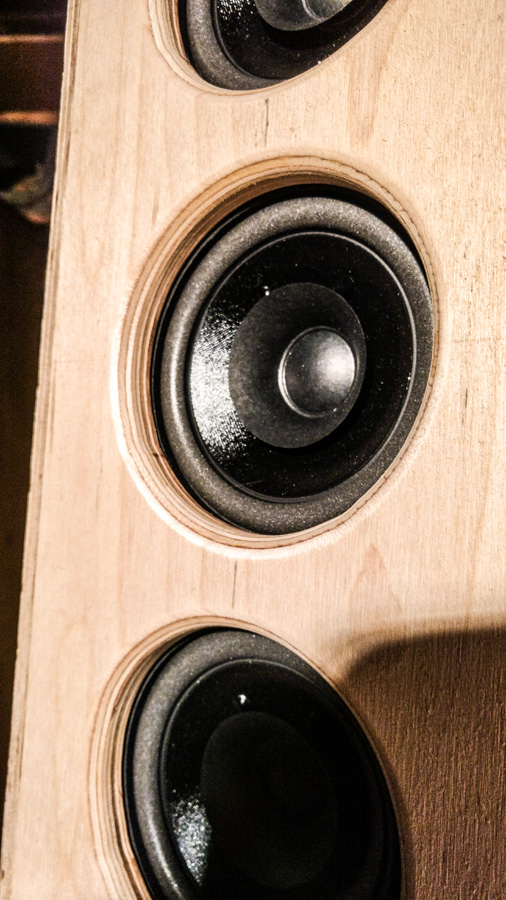

Final detail of the front corner

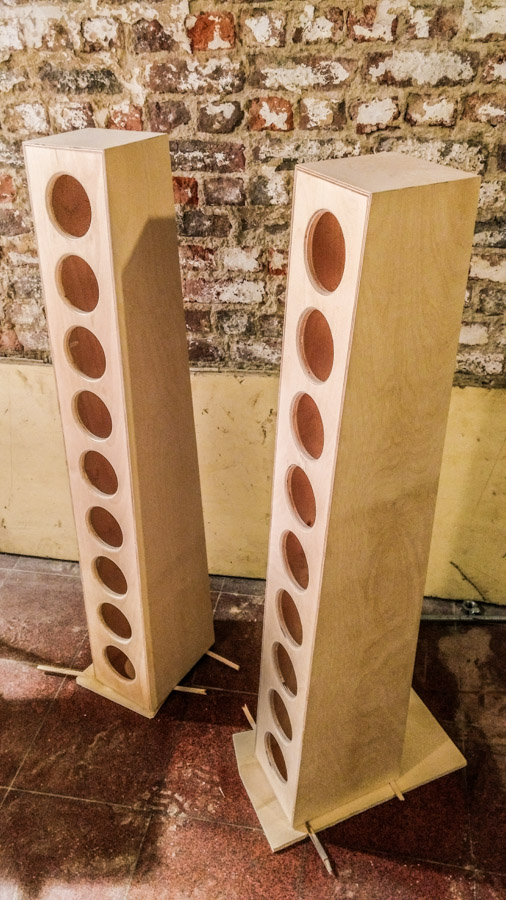

Ready for some clear coats paint

[cinezaster]

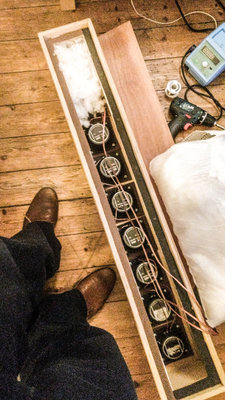

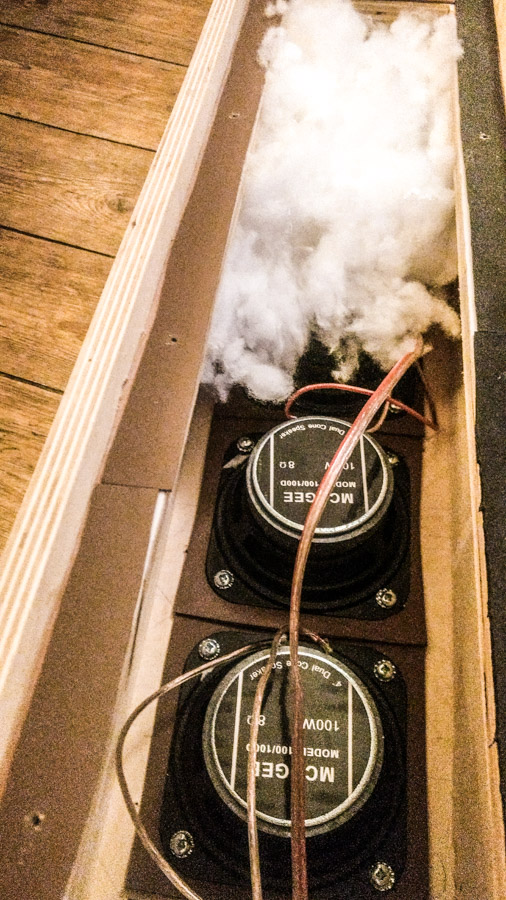

Wiring 3 series and 3 parallel.

Pillows from Ikea are way cheaper than speaker fillings :)

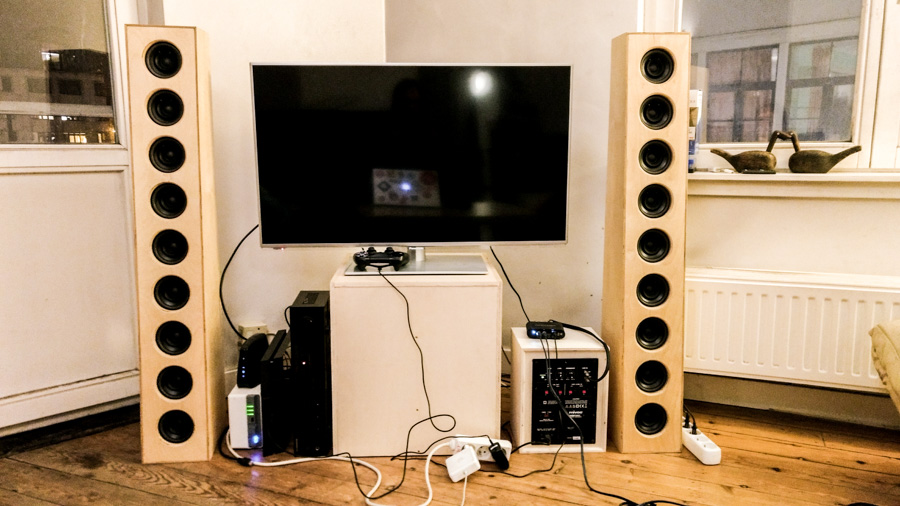

Done. Joining my T18.

Setup:

• Minidsp as crossover and equalizer
• T18 with a mivoc AM 80 MK II
• SLA with a 100W pioneer amp
