So, it's time for some new speakers.
I needed some more as my first gig without a backline is this Friday, so naturally, I start building the speakers I need yesterday - I took the day off and started cutting wood.
I'm fortunate enough to own a table saw, so that makes things much quicker but it hadn't seen action for over a year, so it need a bit of TLC before I started.
My original plan was to build W10 and make them with a full height melded array so I could use them as tops but given the time constraints, I decided on some simpler Jack 110's with a wedge slice. I would compensate for the reduced volume by making the top of the cab deeper.
For driver choice, I already had a pair of Beta 10's but I decided to order some Fane Sovereign 10-125's. They meet the specs for Jack (just!) and have a vd of 183cc, which is higher than the 2510 and much higher than the Beta 10. If they turn out to be crap, I can always put the Beta's in. I got them on sale for £30 each.
I've taken some pictures with my iPhone (which I got covered in glue!) so I'm just waiting to get those off.
Jack 110 x2
-
Chris_Allen
- Posts: 3358
- Joined: Wed Jul 11, 2007 2:43 pm
- Location: Huddersfield, UK
Jack 110 x2
Built:
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
-
Chris_Allen
- Posts: 3358
- Joined: Wed Jul 11, 2007 2:43 pm
- Location: Huddersfield, UK
Re: Jack 110 x2
Built:
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
-
Bruce Weldy
- Posts: 8538
- Joined: Fri Nov 27, 2009 11:37 am
- Location: New Braunfels, TX
Re: Jack 110 x2
I'm sure they look perfect to the guys down under......Chris_Allen wrote:
So, it would appear that all my pictures are upside down..... I'll fix that before posting anymore, they look fine on my Mac - time for more dust instead.
6 - T39 3012LF
4 - OT12 2512
1 - T24
1 - SLA Pro
2 - XF210
"A system with a few knobs set up by someone who knows what they are doing is always better than one with a lot of knobs set up by someone who doesn't."
-
SirNickity
- Posts: 429
- Joined: Tue Sep 06, 2011 12:57 am
- Location: Anchorage, AK
Re: Jack 110 x2
I think I know what happened... On the Mac, is the menu bar on the top or bottom of the screen?
-
Harley
- Posts: 5758
- Joined: Mon May 08, 2006 2:45 pm
- Location: Christchurch, New Zealand - Authorised BFM Cab Builder
Re: Jack 110 x2
...I resemble that remark!Bruce Weldy wrote:I'm sure they look perfect to the guys down under......
Semi-retired: Former Australia and New Zealand Authorised BFM cab builder.-
Grant Bunter
- Posts: 6912
- Joined: Mon Nov 28, 2011 11:12 am
- Location: Ilfracombe Queensland Australia
- Contact:
Re: Jack 110 x2
^ And I represent it!
Nice build Chris....
Nice build Chris....
Built:
DR 250: x 2 melded array, 2x CD horn, March 2012 plans.
T39's: 4 x 20" KL3010LF , 2 x 28" 3012LF.
WH8: x 6 with melded array wired series/parallel.
Bunter's Audio and Lighting "like"s would be most appreciated...
DR 250: x 2 melded array, 2x CD horn, March 2012 plans.
T39's: 4 x 20" KL3010LF , 2 x 28" 3012LF.
WH8: x 6 with melded array wired series/parallel.
Bunter's Audio and Lighting "like"s would be most appreciated...
-
Chris_Allen
- Posts: 3358
- Joined: Wed Jul 11, 2007 2:43 pm
- Location: Huddersfield, UK
Re: Jack 110 x2

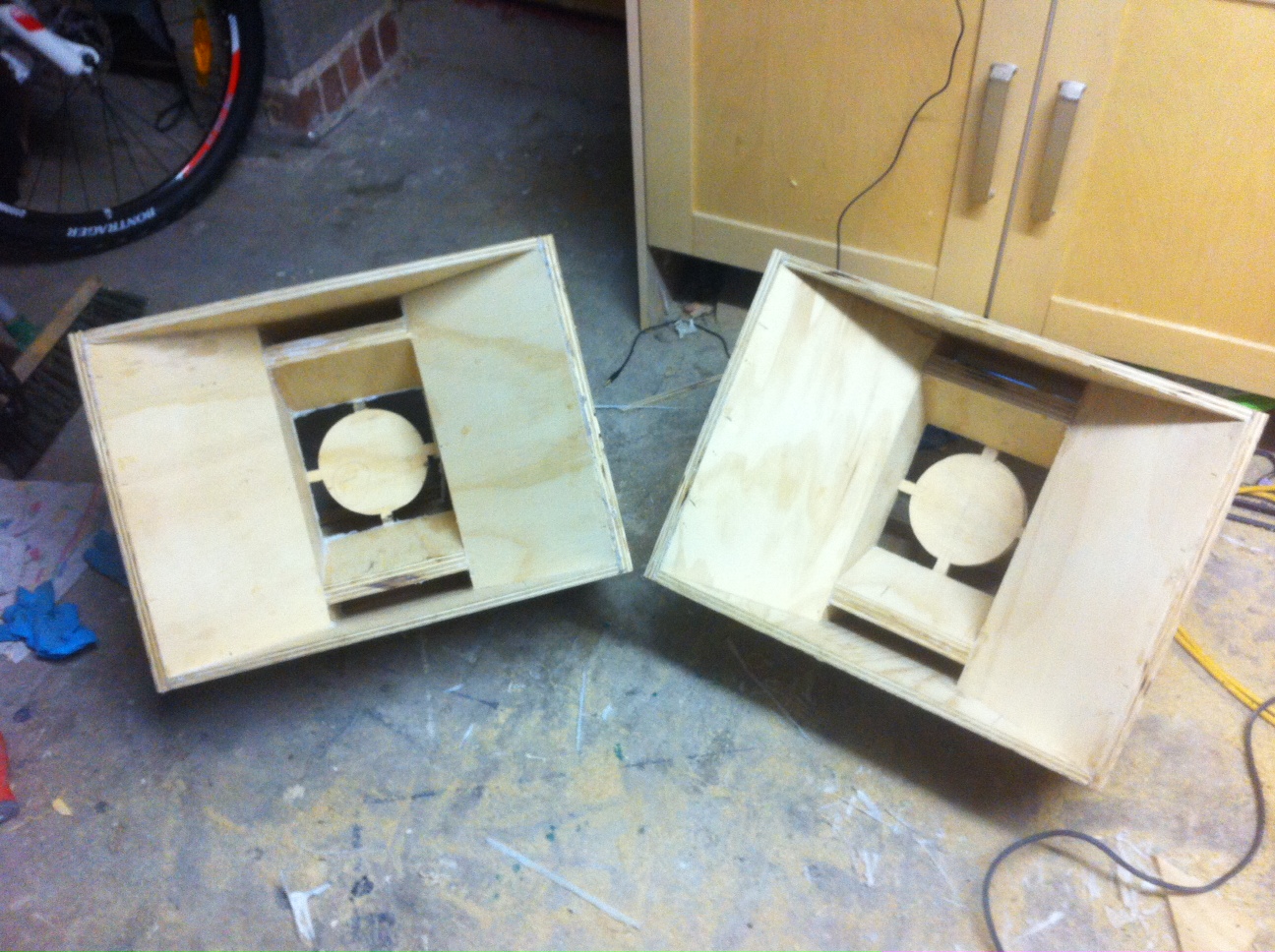

Well, they are pretty much complete, just need the mounts for the piezo array and the crossover to do. I'll still post the pics in order to pretend I'm still going but here's one with the wings on....
Just a shame I had cut the wings wrong and had to rip them off to put new ones on..... Grrrr.....
Built:
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
-
Chris_Allen
- Posts: 3358
- Joined: Wed Jul 11, 2007 2:43 pm
- Location: Huddersfield, UK
Re: Jack 110 x2
What the hell, here's a preview, I'll post the rest later.....
Built:
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
6xDR200, 2xT39, 2xT48, 2xJack110, 1xOmni10.5, 1xAutotuba, 1xT18, 1xSLA Pro, 1xW8, 1xW10
-
Harley
- Posts: 5758
- Joined: Mon May 08, 2006 2:45 pm
- Location: Christchurch, New Zealand - Authorised BFM Cab Builder
Re: Jack 110 x2
Don't worry, you're not the first to have one of those momentsChris_Allen wrote: Just a shame I had cut the wings wrong and had to rip them off to put new ones on..... Grrrr.....
Omni 10 screw-up
Semi-retired: Former Australia and New Zealand Authorised BFM cab builder.-
LelandCrooks
- Posts: 7242
- Joined: Thu May 04, 2006 9:36 am
- Location: Midwest/Kansas/Speaker Nirvana
- Contact:
Re: Jack 110 x2
More times than I'd care to count I've screwed up the wings.
If it's too loud, you're even older than me! Like me.
http://www.speakerhardware.com
http://www.speakerhardware.com
-
Jon Barnhardt
- Posts: 718
- Joined: Wed Jun 08, 2011 1:20 pm
- Location: Bismarck, ND - Licensed builder
- Contact:
Re: Jack 110 x2
Not if you re-order the steps and use a jig
-
GirlyHandedDog
- Posts: 186
- Joined: Tue Mar 02, 2010 7:59 pm
- Location: Lehi, UT
Re: Jack 110 x2
Lookin' good Chris. When you build them that fast, they're supposed to look worse than mine. Damn you.
-
wounded horse
- Posts: 315
- Joined: Sun Jul 12, 2009 9:18 am
- Location: Lincoln UK
Re: Jack 110 x2
How does it sound?Harley wrote:Don't worry, you're not the first to have one of those momentsChris_Allen wrote: Just a shame I had cut the wings wrong and had to rip them off to put new ones on..... Grrrr.....
Omni 10 screw-up
-
Harley
- Posts: 5758
- Joined: Mon May 08, 2006 2:45 pm
- Location: Christchurch, New Zealand - Authorised BFM Cab Builder
Re: Jack 110 x2
"Aaarrggghhh F%$k itwounded horse wrote:How does it sound?Harley wrote:Omni 10 screw-up
" - when you discover the PL was applied 24 hrs prior.Btw Chris - nice build!
Semi-retired: Former Australia and New Zealand Authorised BFM cab builder.
