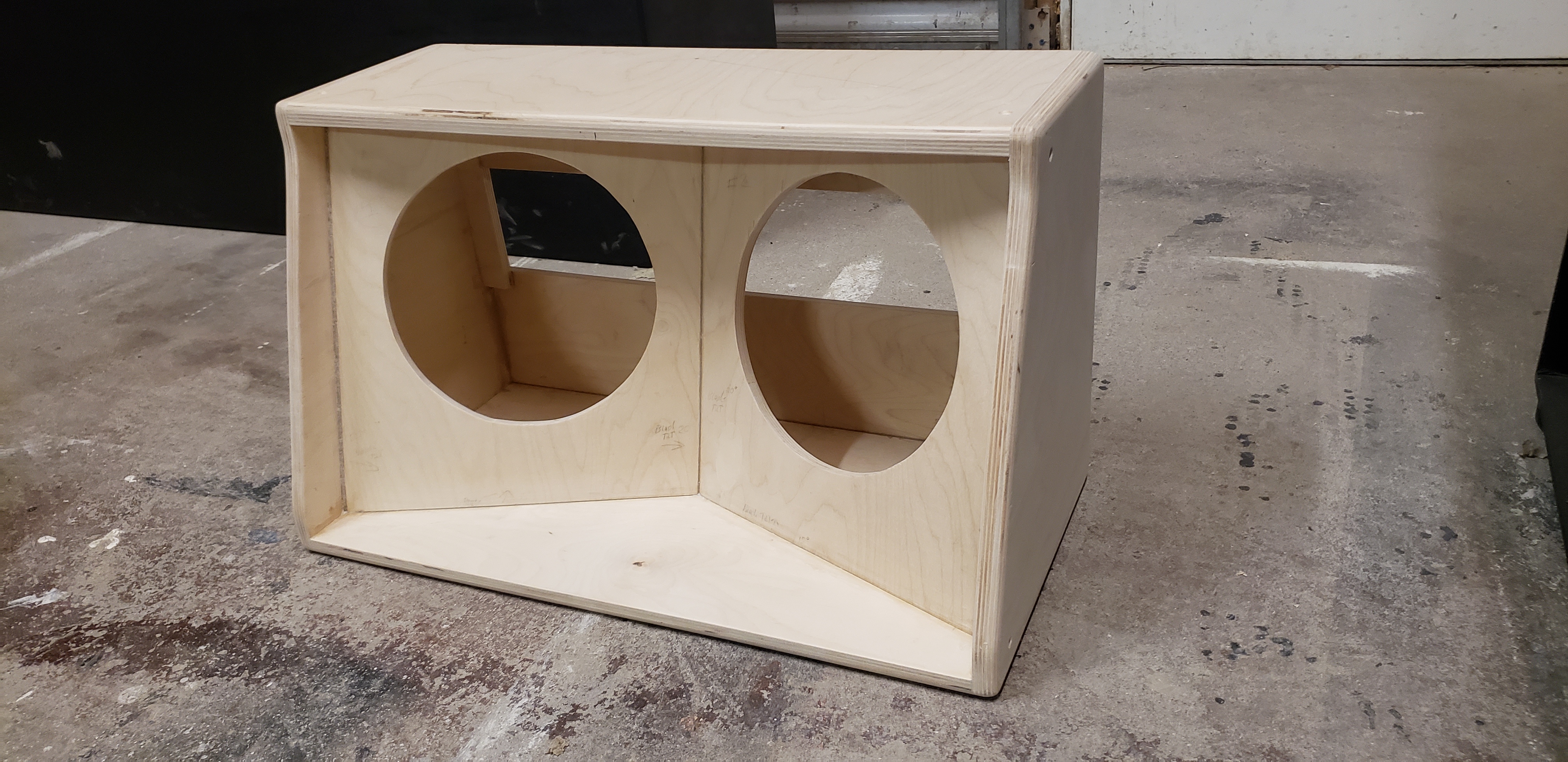

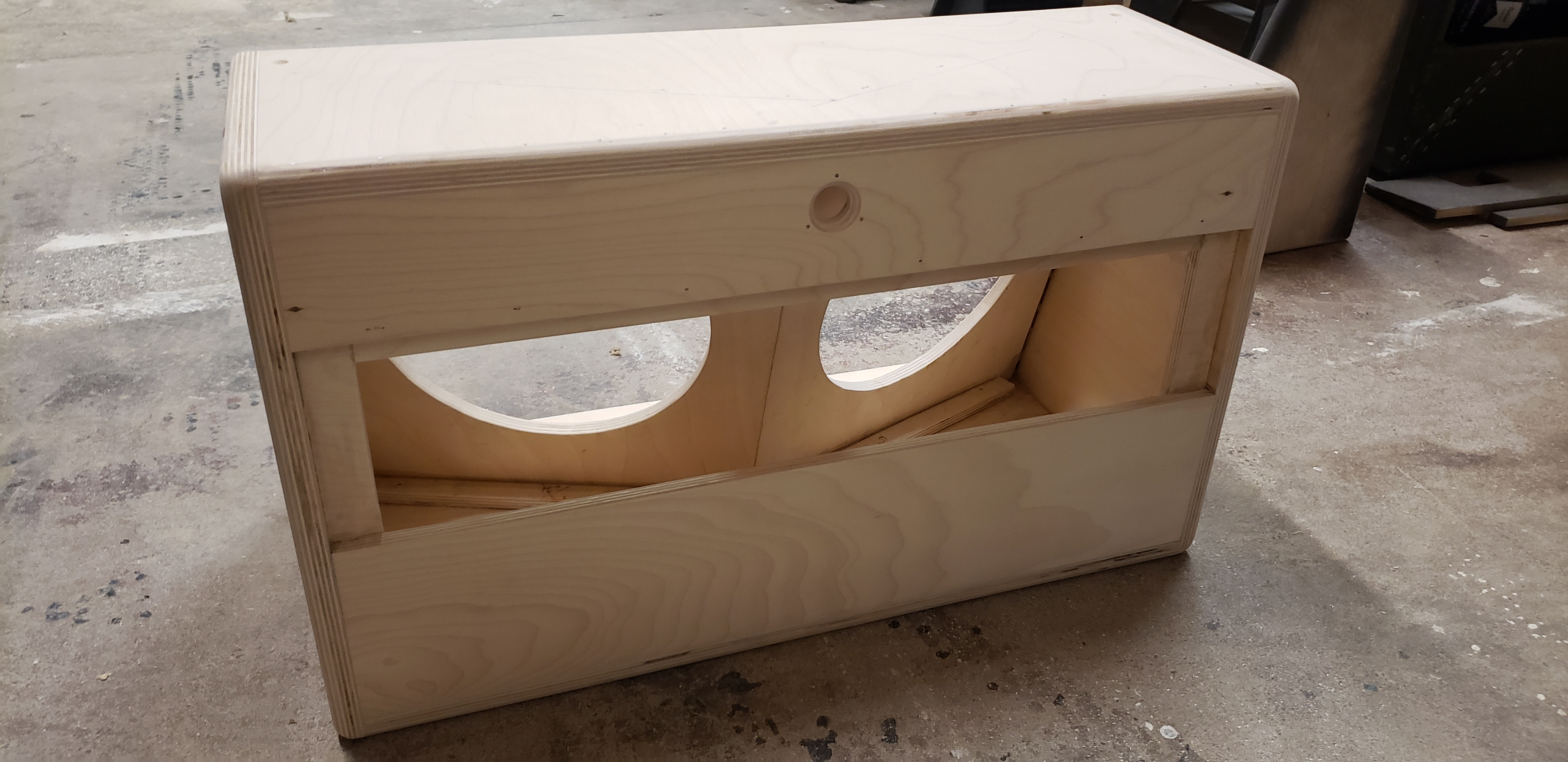

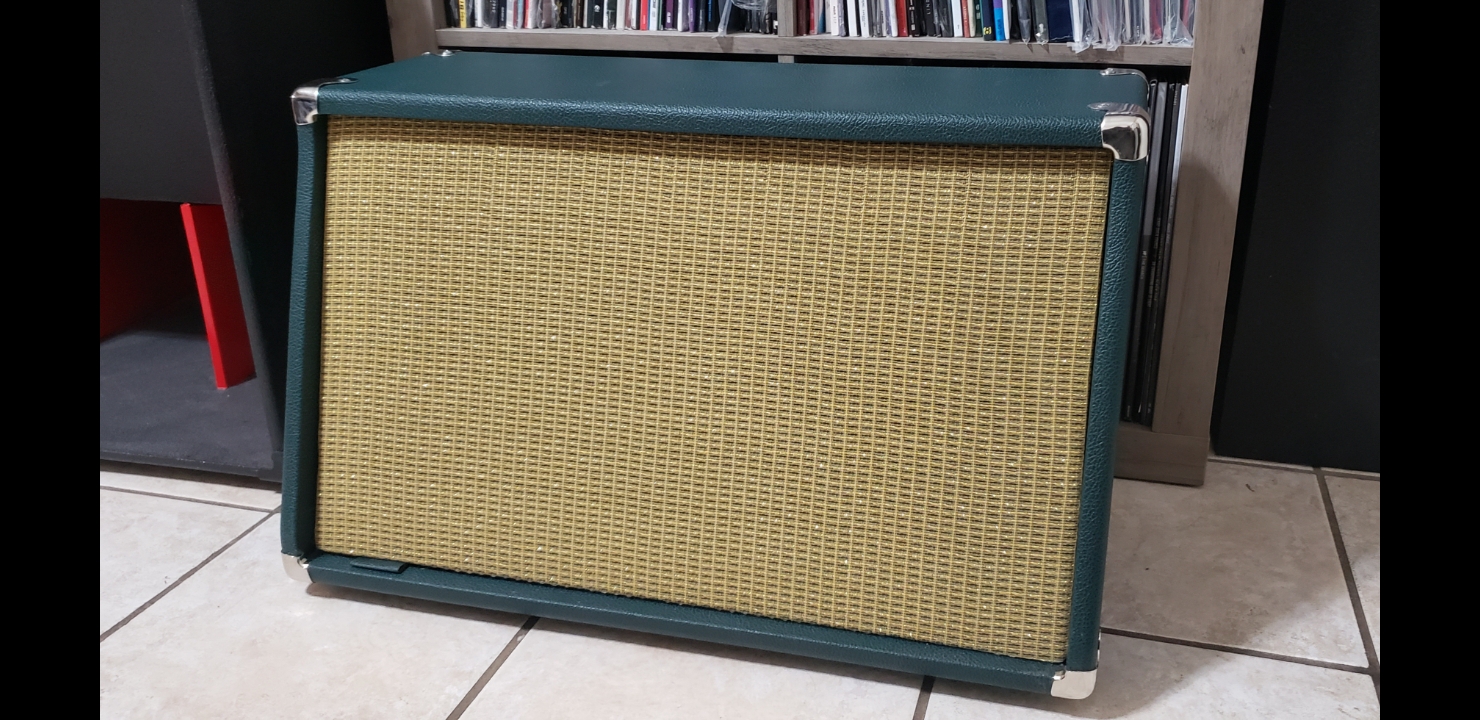

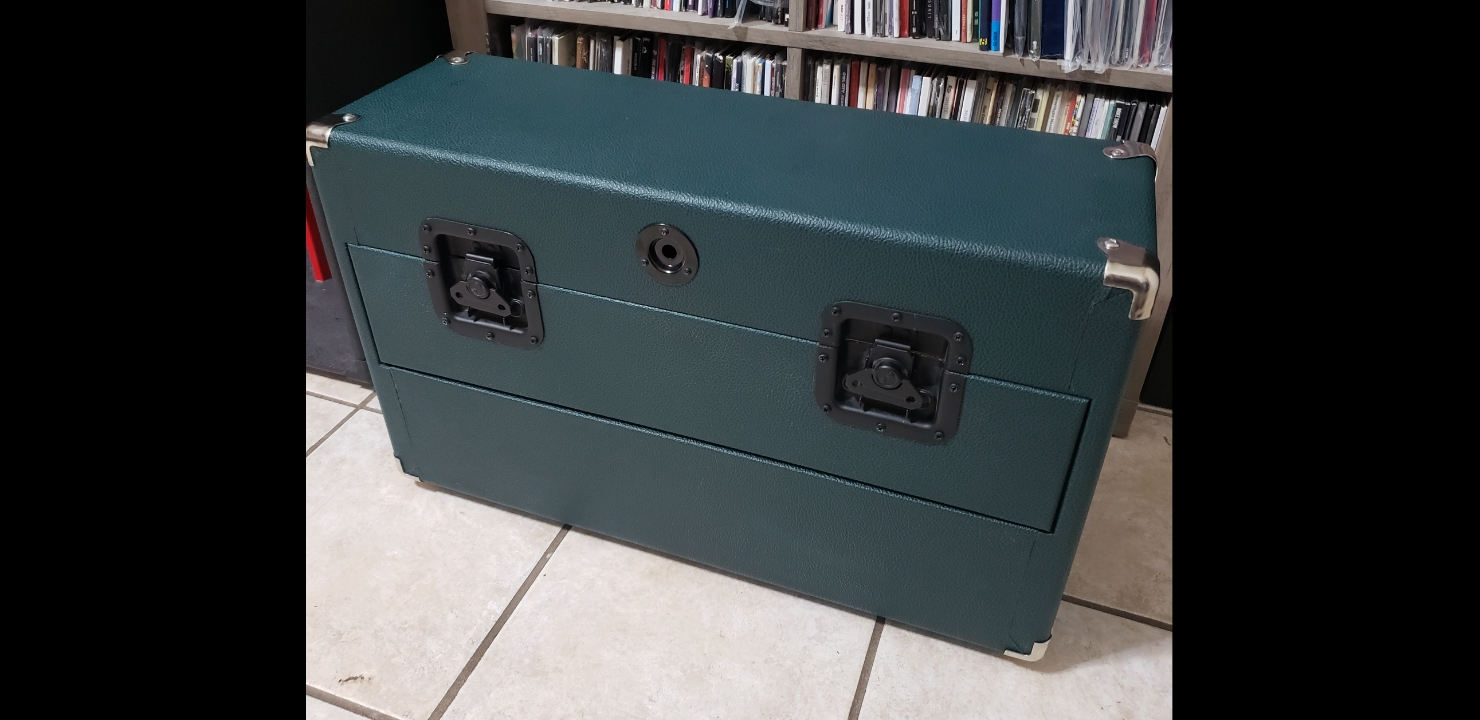

Here's an XF210 slightly modified to fit the fancy metal corners the client sent to me.
The corners assume they will be put on a square cabinet so the angled front face becomes a problem and the front corners wrap around to hook the inside of the frame.

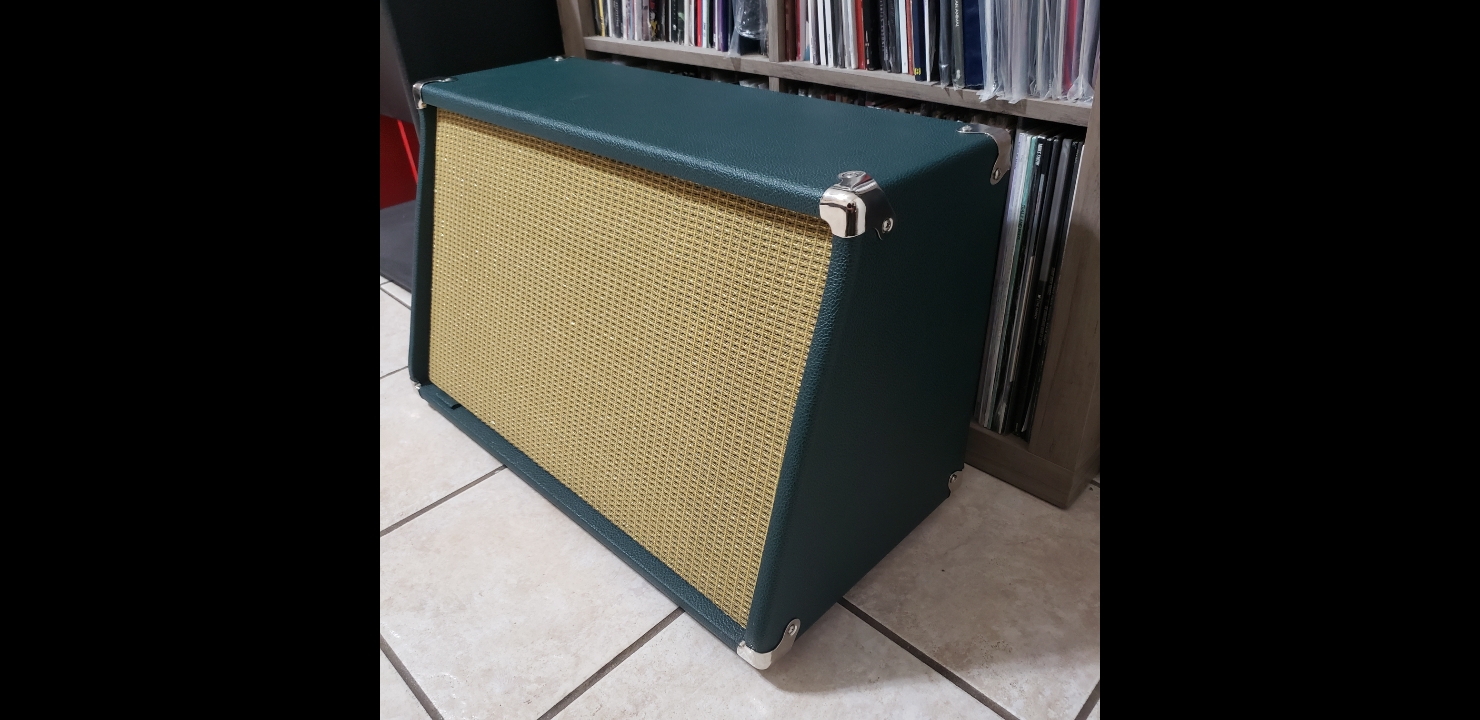

The only thing I changed here is the outer frame of the xf is built using 3/4" and the front angle is adjusted to end at a 90° for the last inch or so at the top and bottom. (Look at the side profile)
XF 210
-
Strange Kevin
- Posts: 177
- Joined: Fri May 19, 2017 3:02 pm
- Location: Scottsdale AZ
XF 210
You do not have the required permissions to view the files attached to this post.
Last edited by Strange Kevin on Tue Jan 12, 2021 3:25 am, edited 1 time in total.
Authorized Builder - Phoenix AZ.
Main Rig - 6 DR200s - 6 T48s (30")
SLA Pros for the smaller stuff.
Main Rig - 6 DR200s - 6 T48s (30")
SLA Pros for the smaller stuff.
Re: XF 2120
Nice! That is a good adaptation for the cab corners. Well done.
You did a real fine job on that cab!
You did a real fine job on that cab!
TomS
