Simplexx 212 build w/ Pics

[Electric Wisdom]

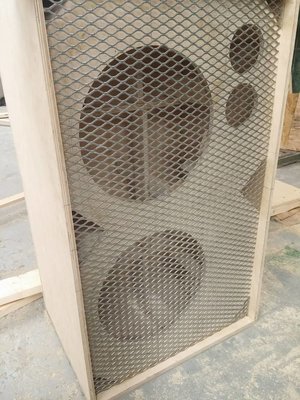

Grill cutted and polished, ready to paint black

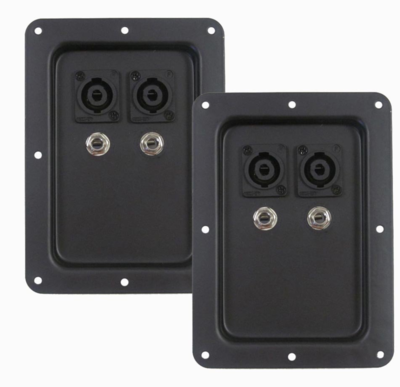

I might use theses plates so that i'm not in a bad situation if i happen to need a 1/4 or speakon.

[Tom Smit]

https://www.walmart.ca/en/ip/mainstays- ... 0195966751

I know that it is available in my store in Sarnia, ON.

[Electric Wisdom]

https://www.walmart.ca/en/ip/mainstays- ... 0195966751

I know that it is available in my store in Sarnia, ON.

Thanks a lot my friend, really appreciated

[Grant Bunter]

If you use the 1/4 and speakon plate, make sure the 1/4" jacks are sealed, or use some blanks or non cabled jacks.
Don't want to introduce any leaks...

[Electric Wisdom]

If you use the 1/4 and speakon plate, make sure the 1/4" jacks are sealed, or use some blanks or non cabled jacks.
Don't want to introduce any leaks...

Yes totaly

I just got the foam 25Cad and there's enough for both cabs

[Electric Wisdom]

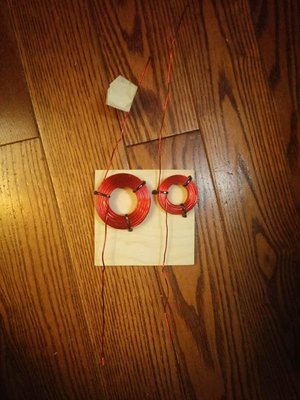

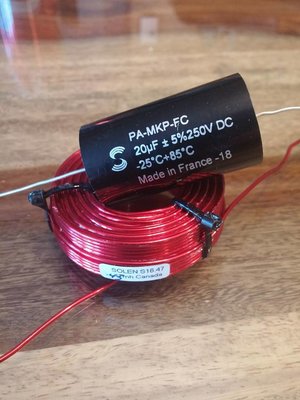

So i got the parts and i'm wondering if the mh value is including all the spare wire that comes off the coil itself?
If yes what should i do to not have a really too big crossover woodplate? Can i just make it in circles like the coil even if its not in the tie wraps?

[Grant Bunter]

Yes all the inductors length is part of it's value. Wind some of that wire back into the coil, with just enough out to connect to the other parts of the crossover.

Also, stand the smaller inductor upright, and place it 90 degrees perpendicular to the larger coil if it has to be that close.
If you have HF components, better to place the components for that filter on another board entirely...

[Electric Wisdom]

Yes all the inductors length is part of it's value. Wind some of that wire back into the coil, with just enough out to connect to the other parts of the crossover.

Also, stand the smaller inductor upright, and place it 90 degrees perpendicular to the larger coil if it has to be that close.
If you have HF components, better to place the components for that filter on another board entirely...

Ok cool, yes well do i put the wire back in the coil hole or i make it so that it's like if there was more turns?
Yes HF crossover will be on the other wood plate, as the 3d model suggest he separated the hf crossover from the lf crossover

[Electric Wisdom]

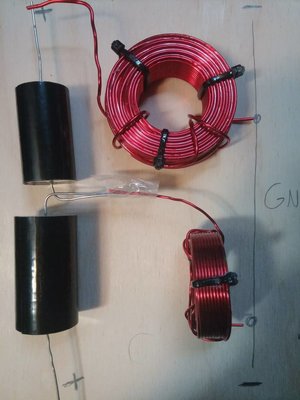

here's the crossover parts on a wood plate for the HF crossover only, i know i know i will buy the kits if it sounds not as expected because i used poly instead of elect caps but all the same values as the build doc.
hope it's ok

[Electric Wisdom]

I'll use something like this to connect in and out of each crossover

https://www.digikey.ca/product-detail/e ... ND/2283961

[Bill Fitzmaurice]

here's the crossover parts on a wood plate for the HF crossover only, i know i know i will buy the kits if it sounds not as expected because i used poly instead of elect caps

The high pass specifies polys.

[Electric Wisdom]

here's the crossover parts on a wood plate for the HF crossover only, i know i know i will buy the kits if it sounds not as expected because i used poly instead of elect caps

The high pass specifies polys.

Right, my bad, i wanted to mean that all caps i bought at the moment are poly

[Electric Wisdom]

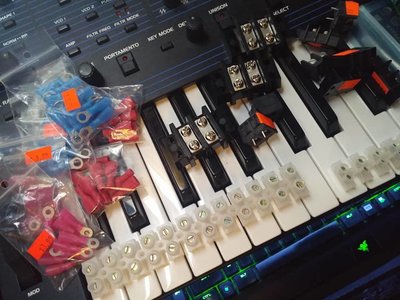

Just got the fancy block terminals to make a somewhat cleaner crossover than i thought
So excited

[Electric Wisdom]

Holy moly i just did a test with the crown preamp, drivers are not even screwed in yet and i can feel it will be incredible

[Askia]

You had a picture with the finished crossover, looked very clean, you could put it back, as a good example!
