DR250 Build

[Tedward]

Apologies accepted. All is cool.

For my own peace of mind I ordered my own set of plans. I see what you mean about the older version of the DR 250.

And so, the build goes on. I got a few jobs. I'm a painting contractor and have three houses to paint. So, the DR build is going to slow down a bit but, I'll keep posting the build as I go.

Tedward

[AntonZ]

And so, the build goes on. (snip) , I'll keep posting the build as I go.

Hurray!

[Tedward]

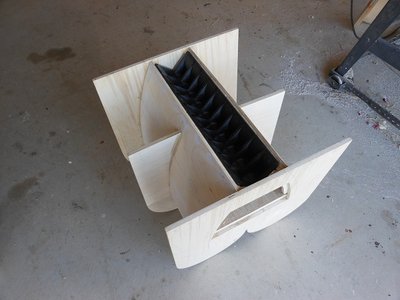

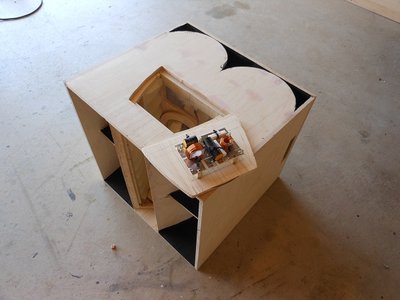

Here's what I have so far.

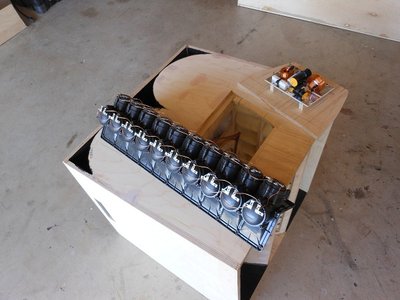

In the second photo do you see the mistake I made. That's what happens when I take break for a few days and don't take of notes as to where I am in the build

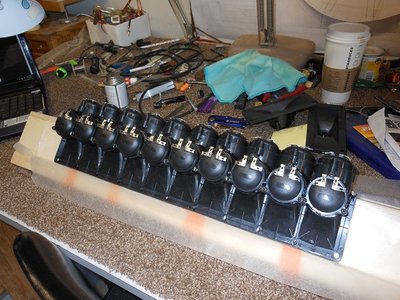

What do you guys use to tidy up the front of the tweeter array. I used wax paper on the jig to keep any glue seepage from sticking.

[Bruce Weldy]

Excellent workmanship

[kekani]

First off,I'm sure I'm one of the more than handful that appreciate you sharing your excellent builds.

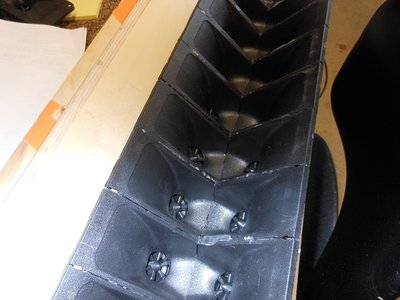

Tweeter array: I use abs between the tweets to set it up, then glop it on the backside. I believe the DR needs to be sealed, so this should work well there. On the front side, I take a cabinet scraper and lightly go to town. Yes, it'll take off the textured surface, but if it's even, no one will notice. Or just hit a quick flat black spray paint, then it'll be good, from far.

Aaron

[Tedward]

Thanks Bruce.

Aaron, I used abs cement on this array and it is a lot stronger that the arrays for my J12L's. Model airplane glue just won't cut it as far as strength. A scrapper is what I used on the J12L's and they came out looking pretty good. I just thought that there was something else I could do.

As far as leaks I have checked with a bright light behind them three times and keep finding pin holes, I'll keep doing it until I don't find any.

Tedward

[Tedward]

Saturday night and time to relax and watch a movie (Predator) our soon to be daughter in law hasn't seen it yet.

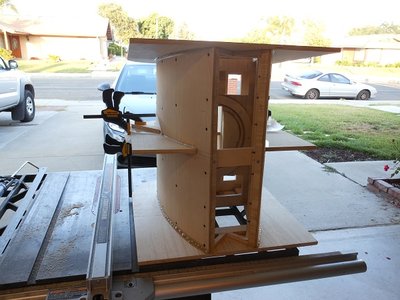

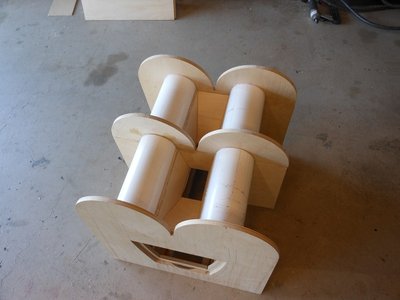

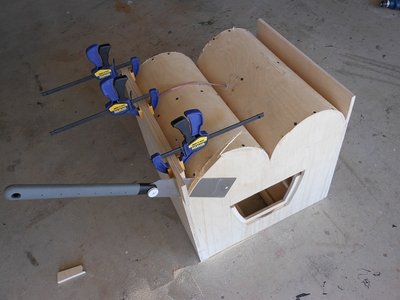

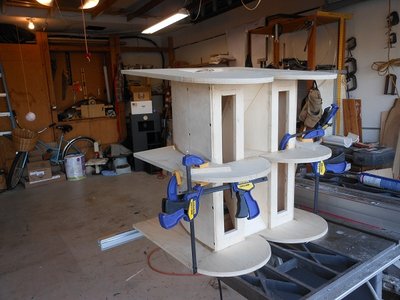

Here's where I am now.

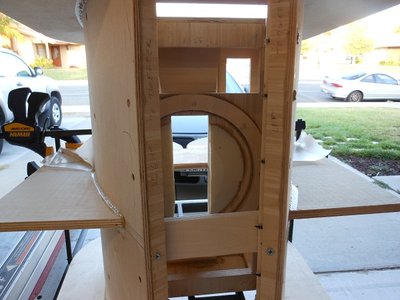

If you haven't guessed what my mistake was; I forgot to pre drill the holes for the bolts to mount the driver. Oh well I'll figure something out.

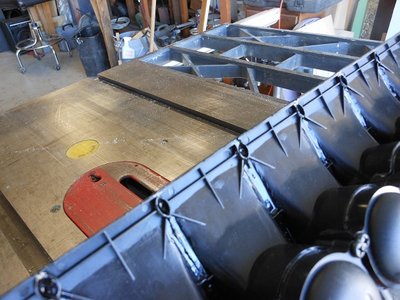

I measured the array and it is 20 1/4" long, a little short. I'll have to add some wood to the tweeter braces at the top and bottom.

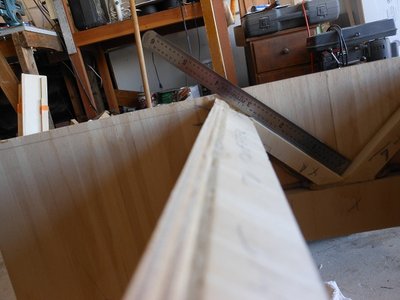

Do any of you end up with your angles off? I think I'll get an accurate protractor.

That's it for the weekend. Happy fathers day to all you dads.

Tedward

[Tedward]

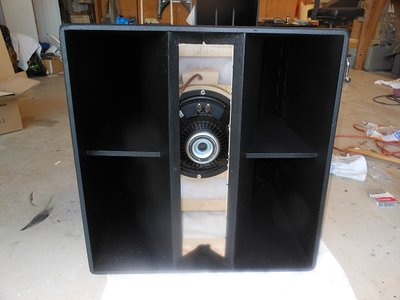

It's been a while and the DR's are completed. They sound phenomenal and are LOUD!!!!
Thanks for the design Bill.

[Grant Bunter]

That's a great build Tedward

[Tom Smit]

Nice build! And good recovery with getting the driver located right...after the fact of not predrilling!

Are you going to post in the "Review" section? huh, huh, huh?

[LelandCrooks]

Nicely done.

[on1sony]

Have any pictures of the finished product? How are the loudspeakers doing?

[DJPhatman]

Andre I know you are excited about your build being close to done, but this thread is just shy of a year old.

[miked]

Wow, that's some great craftsmanship! Would love to see pics of the finished product and your thoughts on the sound.

[Altec Best]

Nice woodworking Skillz !
