Took Harley's advice about the Piezo Brace Jig and modified it a little
pic.1 These are my version of Harley's Piezo Brace Jigs with stops for both the depth and the spread
pic.2 After drawing a center line I transfer the location on top to see where the brads go

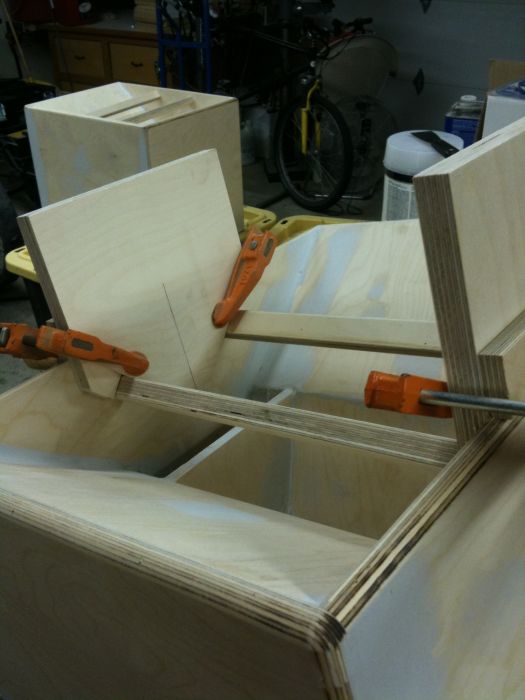

pic.3 The center of the cab has a line to line up with the center of the jig then clamp it
pic.4 Once the jigs are in place just pull the braces up tight and nail from the top with 1" brads

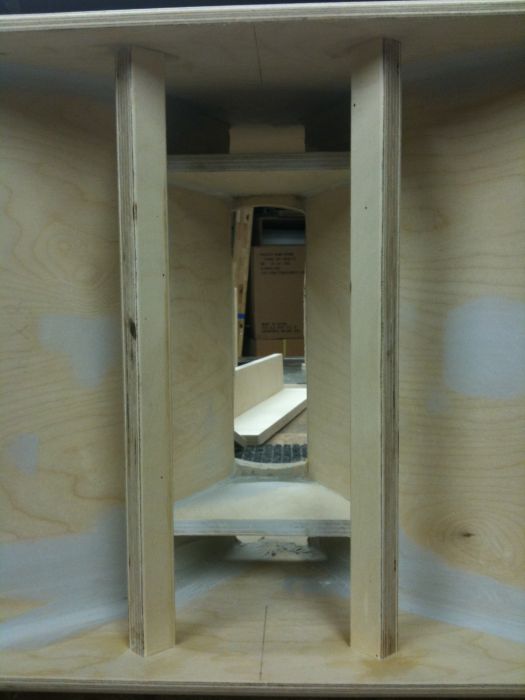

pic.5 I used the yellow wood glue for these as the pl would be way to messy for this, I was liberal with the glue then 4 brads or so into the top and remove jigs and wipe off excess with a damp towel, worked great and I am sure I will use these jigs for a long time!
Harley's Piezo Brace Jig 2.0 Release
-
Harley
- Posts: 5758
- Joined: Mon May 08, 2006 2:45 pm
- Location: Christchurch, New Zealand - Authorised BFM Cab Builder
Re: Harley's Piezo Brace Jig 2.0 Release
Semi-retired: Former Australia and New Zealand Authorised BFM cab builder.-
jswingchun
- Posts: 1073
- Joined: Fri Dec 01, 2006 9:43 am
- Location: Cedar Rapids, Iowa
- Contact:
Re: Harley's Piezo Brace Jig 2.0 Release
This is a winner, thanks for posting!
Omni 10
Omni 10.5
OmniTop 12 x 4
Wedgehorn 8 x 3
XF212
T39 @ 18" x 2
T39 @ 20" x 2
T39 @ 28" x 2
Jack 110 x 5
Jack Lite 12
XF210
XF210 (Slant only, no crossfire)
Omni 10.5
OmniTop 12 x 4
Wedgehorn 8 x 3
XF212
T39 @ 18" x 2
T39 @ 20" x 2
T39 @ 28" x 2
Jack 110 x 5
Jack Lite 12
XF210
XF210 (Slant only, no crossfire)
-
Bill Fitzmaurice
- Site Admin
- Posts: 28916
- Joined: Tue May 02, 2006 5:59 pm
Re: Harley's Piezo Brace Jig 2.0 Release
A winner. A waste of time for one or two cabs, it will take longer to make the brace than is justified, but if you're making a fleet it will save a lot of time.
Re: Harley's Piezo Brace Jig 2.0 Release
Took me 15 min. to make the jigs from scrap material, I figure it will save me that or more on a couple of pairs of jacks, the main reason for me was for accuracy and ease of installation not really speed.Bill Fitzmaurice wrote:A winner. A waste of time for one or two cabs, it will take longer to make the brace than is justified, but if you're making a fleet it will save a lot of time.
Last edited by gilscales on Sat Mar 13, 2010 12:58 am, edited 1 time in total.
Built; T18, 2 x J110 2510II MA
-
LelandCrooks
- Posts: 7242
- Joined: Thu May 04, 2006 9:36 am
- Location: Midwest/Kansas/Speaker Nirvana
- Contact:
Re: Harley's Piezo Brace Jig 2.0 Release
That friggin compound angle on DR's always gives me fits. Always.gilscales wrote: I figure it will save me that or more on a pair of jacks and a pair of dr's, the main reason for me was for accuracy and ease of installation not really speed.
If it's too loud, you're even older than me! Like me.
http://www.speakerhardware.com
http://www.speakerhardware.com
Re: Harley's Piezo Brace Jig 2.0 Release
Like hell it is... I spent a lot of time wrestling with the damn legs for the tweeters. Wish I had thought of this. This summer when I redo my cabs I'm going this route.Bill Fitzmaurice wrote:A winner. A waste of time for one or two cabs, it will take longer to make the brace than is justified, but if you're making a fleet it will save a lot of time.
Re: Harley's Piezo Brace Jig 2.0 Release
simple sketch up please?
its a pita even with omnis. I ended up screwing the piezos to the braces and then locating them.
its a pita even with omnis. I ended up screwing the piezos to the braces and then locating them.
