billkatz
Posts: 247
Joined: Mon Jan 21, 2013 9:30 pm
Location: San Rafael, CA

HT Build: TLAH, SLA curved, TTLS

#1 Post by billkatz » Thu Apr 19, 2018 8:29 pm

I'm finally getting going on my TLAH and SLA ccurve build. All of the panels are cut, the TLAH boxes built, and the plywood is ripped for the TTLS - I just need to do some cross-cutting and of course cut the angles for the braces.

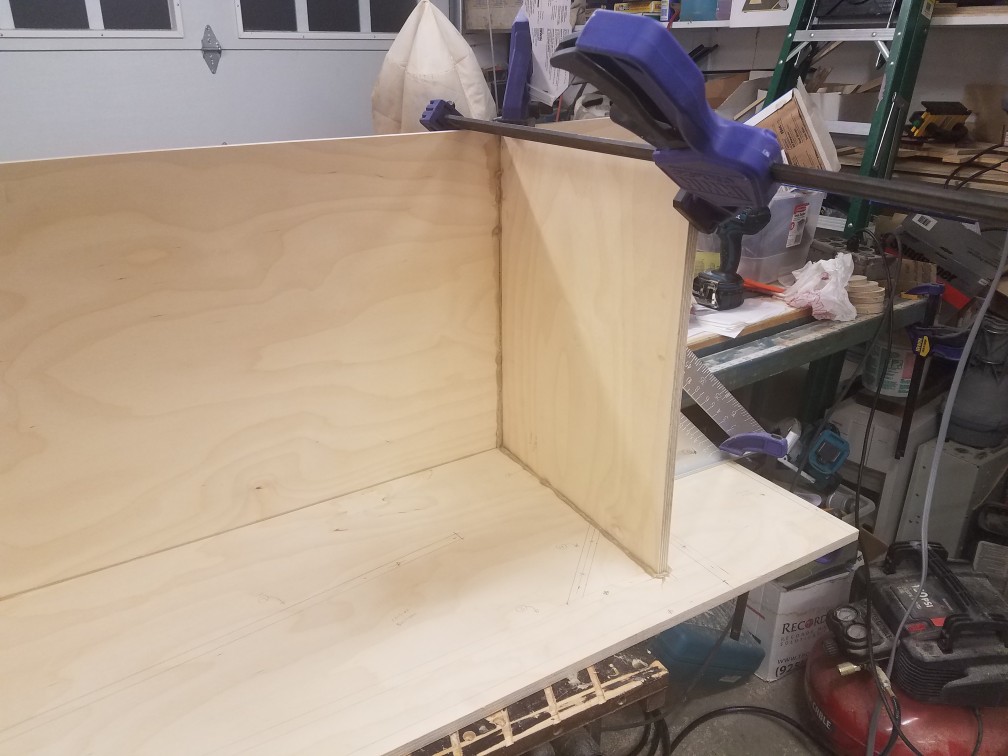

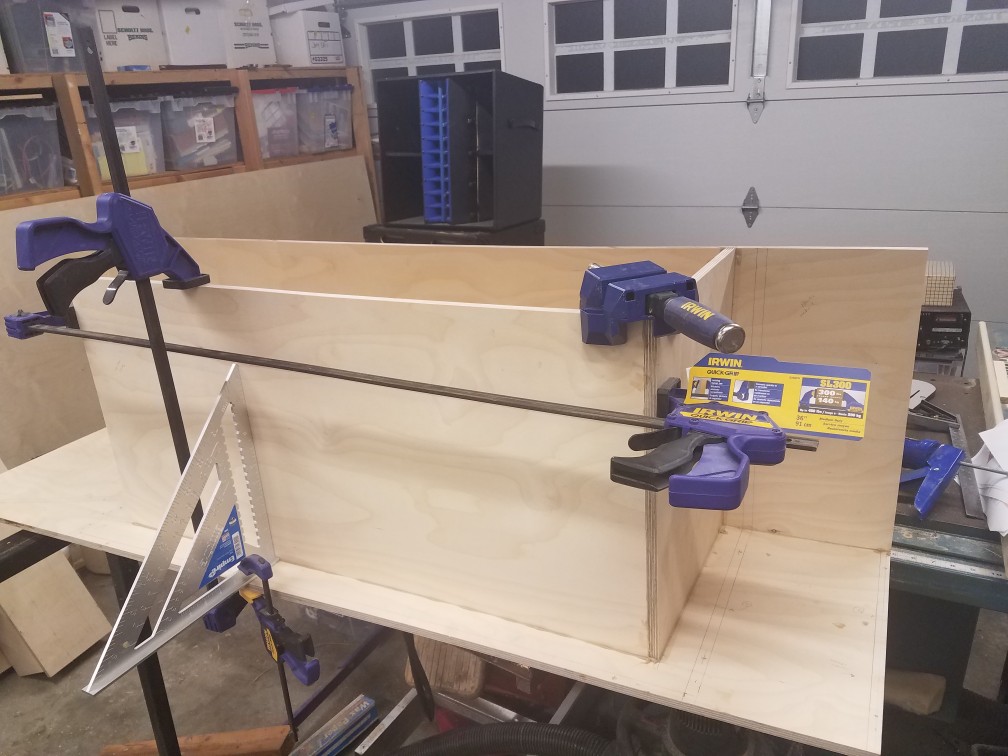

Here are the TLAH boxes getting started:
At this point I plan to rear mount all of the drivers and finish the boxes in stain/polyurethane.

The first batch of drivers is in hand from Speaker Hardware.

I also plan to build the SLA surrounds from the plans.

My next big challenge is to cut a whole bunch of woofer holes.
Built:
1 Omni-15 Tall Boy
2 DR250s
2 Titan 39s

y2kindyz
Posts: 375
Joined: Mon Jan 05, 2009 10:54 am
Location: MISSION, TX

Re: HT Build: TLAH, SLA curved, TTLS

#2 Post by y2kindyz » Sat Apr 21, 2018 1:16 pm

Looking good, looking forward to seeing the finished results.

billkatz
Posts: 247
Joined: Mon Jan 21, 2013 9:30 pm
Location: San Rafael, CA

Re: HT Build: TLAH, SLA curved, TTLS

#3 Post by billkatz » Tue Apr 24, 2018 8:12 pm

After discussions here about the best way to make the woofer holes, I tried:
  • A holesaw
  • Router, up-spiral, jasper jig,
  • template and pattern bit
I decided that the jasper jig was the easiest, as I just need to drill a 1/8" pilot hole through the baffle (and into a backing board) and then use the jig.

First I tacked the curved SLA baffle to my work table with a few brads, nailing in the 1/2" wide strips that would be cut away:
SLA_front (2).jpg

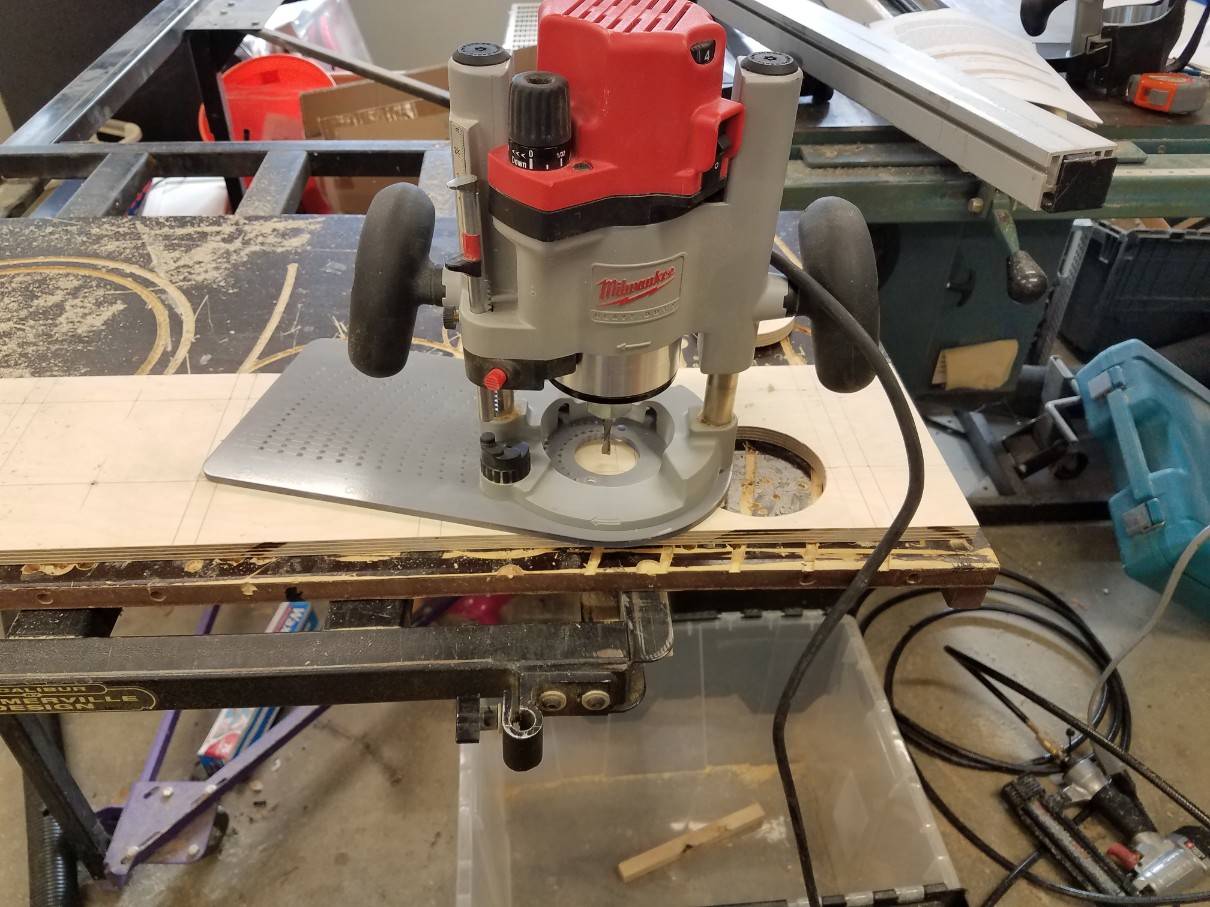

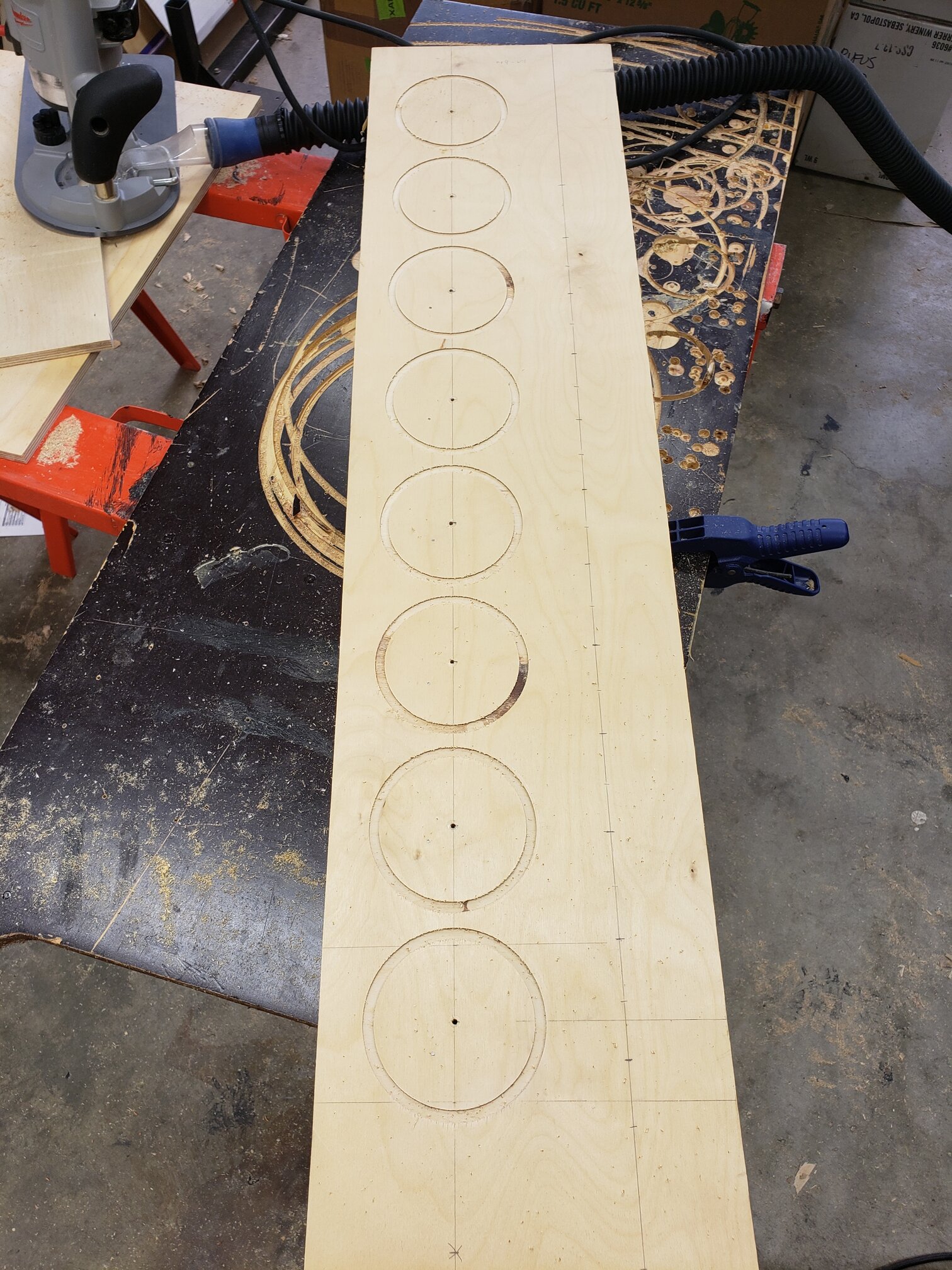

Then using the router, spiral bit and jasper jig, cut the woofer holes:
SLA_jasper (2).jpg

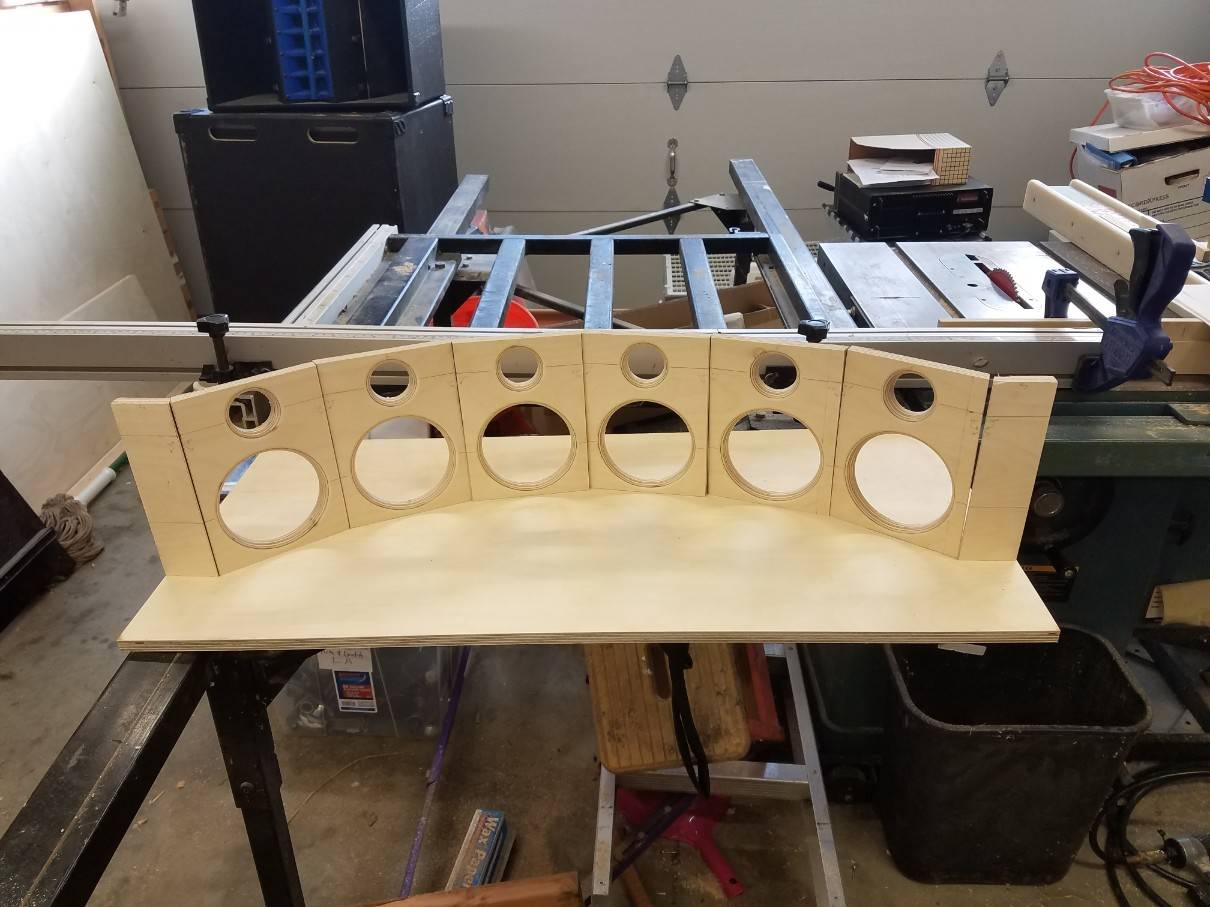

I used a Forstner bit for the tweeter holes - it makes a very clean cut. Here is the baffle with all 12 holes:
SLA_drilled (2).jpg
Next I changed out the plunge base for the regular base, and mounted the 3/8" round-over bit and rounded off all of the holes:
SLA_routed (2).jpg
The final step was to make all of the angled cuts in the panel, leaving me with 8 pieces. Here is a dry fit of them standing up:
SLA_standing (2).jpg
A careful reading of the instructions reminded me that I now need to sand and finish these pieces before I glue them together. I also need to make the jigs that will allow me to make symmetric pilot holes for the mounting holes for the drivers. Tomorrow while the stain and polyurethane are drying, I may try to get the first couple TTLS panels assembled.
Built:
1 Omni-15 Tall Boy
2 DR250s
2 Titan 39s

User avatar
Bill Fitzmaurice
Site Admin
Posts: 27335
Joined: Tue May 02, 2006 5:59 pm

Re: HT Build: TLAH, SLA curved, TTLS

#4 Post by Bill Fitzmaurice » Tue Apr 24, 2018 8:53 pm

Put the finish on the inside of the top and bottom before assembling as well, masking off the glue line.

billkatz
Posts: 247
Joined: Mon Jan 21, 2013 9:30 pm
Location: San Rafael, CA

Re: HT Build: TLAH, SLA curved, TTLS

#5 Post by billkatz » Wed Apr 25, 2018 12:58 pm

Bill Fitzmaurice wrote:
Tue Apr 24, 2018 8:53 pm
Put the finish on the inside of the top and bottom before assembling as well, masking off the glue line.
Thank you - I see that in the plans.
I hope it will work to build the baffle out of 1/2" Baltic Birch rather than 3/4" solid wood. Otherwise I need to start over on the baffle.
Built:
1 Omni-15 Tall Boy
2 DR250s
2 Titan 39s

ketoet
Posts: 377
Joined: Thu Jul 08, 2010 3:19 pm
Location: kortrijk , Belgium

Re: HT Build: TLAH, SLA curved, TTLS

#6 Post by ketoet » Fri Apr 27, 2018 2:47 am

My tlah baffles are made out of 1/2 birch plywood and didn't give me any trouble. Plywood doesn't split like solid wood might do. Just make sure u use screws that aren't too long and show through.
Mine are painted white the plys can be seen but i like that.

Greetz ketoet
building BFM speakers isn't a hobby , it's an addiction

1 x THT
1 x autotuba
2 x dr250 melded

2 x wedgehorn 10
2 x tlah

billkatz
Posts: 247
Joined: Mon Jan 21, 2013 9:30 pm
Location: San Rafael, CA

Re: HT Build: TLAH, SLA curved, TTLS

#7 Post by billkatz » Sat Jun 09, 2018 7:47 pm

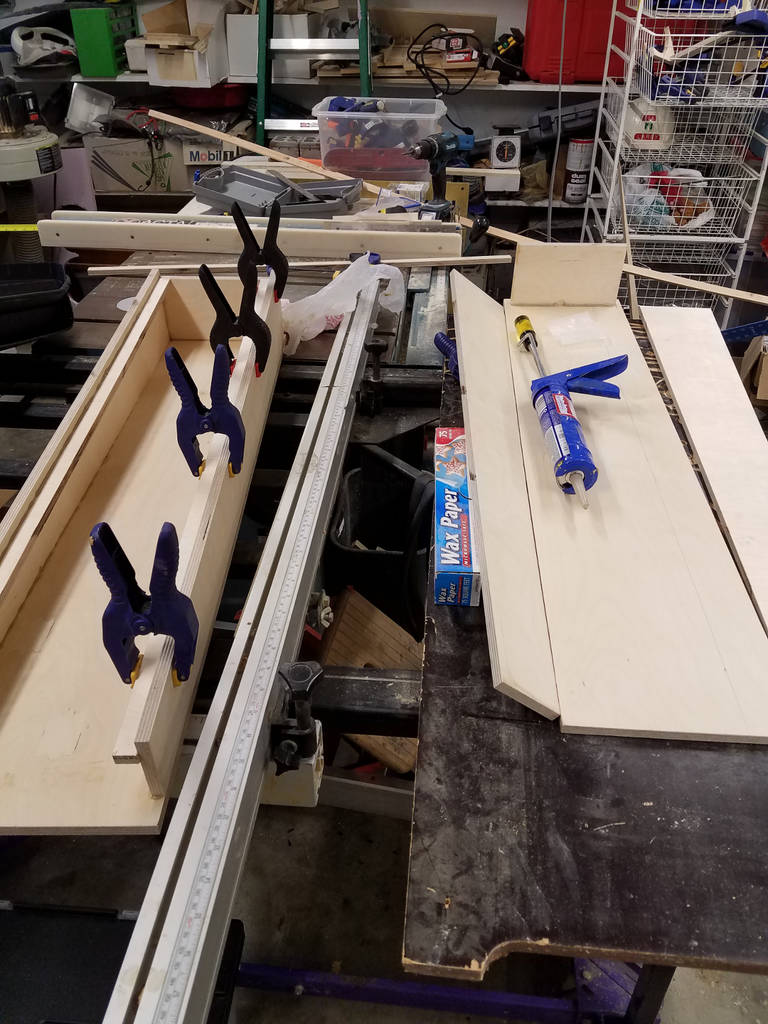

I'm making a little more progress - I started on the TTLS.

Here are the first 3 panels installed:
I also have panel 4 in. Now I need a driver before I can go an farther. Perhaps I'll order it today. I'm leaning toward the 10" Dayton.

I went down to work on the jigs for drilling the mounting holes for the SLA/TLA drivers today, and promptly dropped the router and broke my only 1/4" upspiral bit :-( So that will have to wait. My current idea is to use the jasper jig set to 1/2" larger than the holes to produce wooden slugs that will fit exactly into the holes - and then use a bit of 1/8" masonite as a guide for the 4 pilot holes.
Built:
1 Omni-15 Tall Boy
2 DR250s
2 Titan 39s

billkatz
Posts: 247
Joined: Mon Jan 21, 2013 9:30 pm
Location: San Rafael, CA

Re: HT Build: TLAH, SLA curved, TTLS

#8 Post by billkatz » Wed Sep 09, 2020 10:42 pm

Only 2 1/2 years later, I am finally making progress on this build again! We are doing a major house remodel, and I want to set up our new den as a home theater (or at least have really good audio when watching TV)

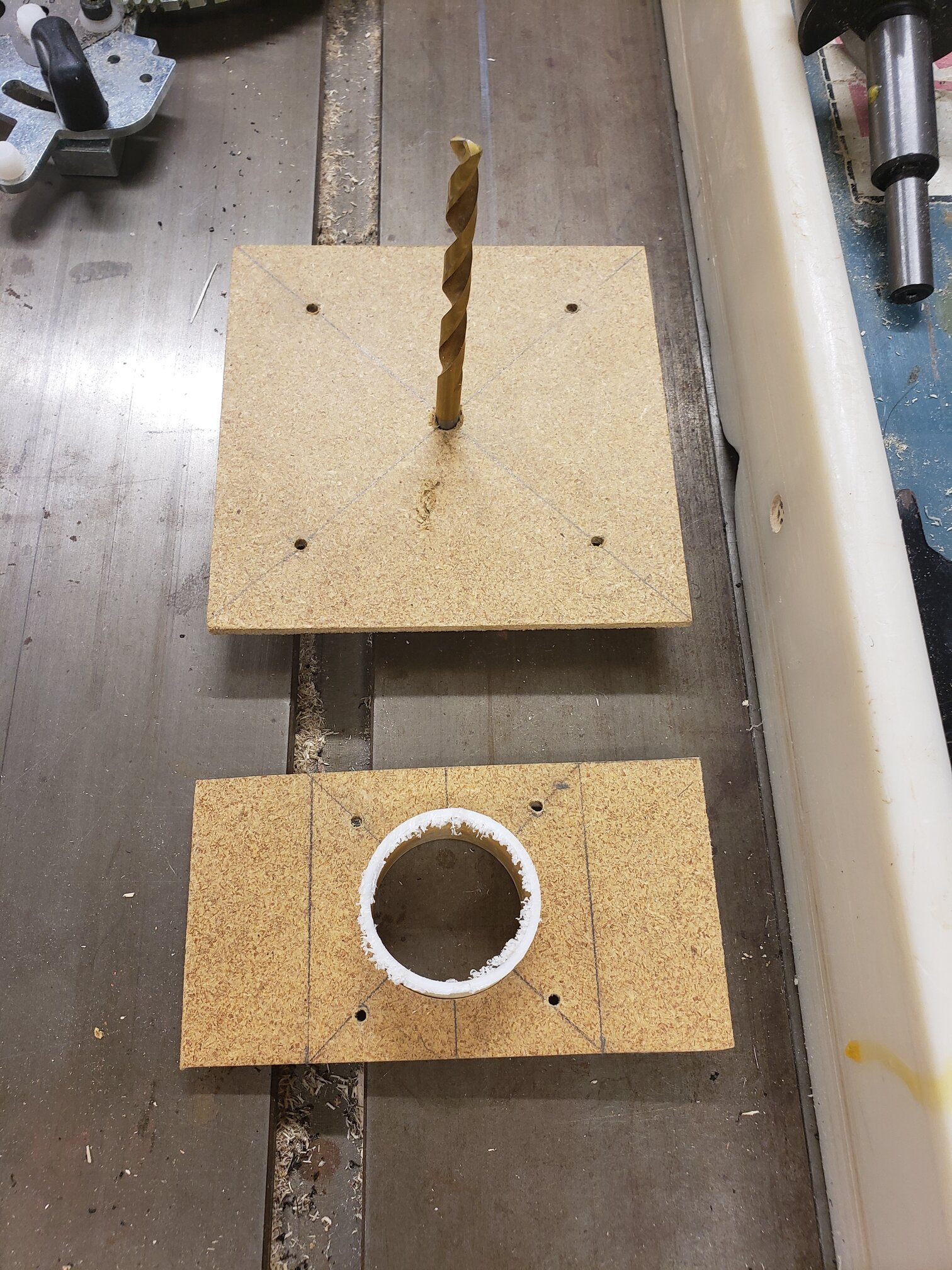

One of the things that took forever on the curved SLA was the decision to rear-mount the drivers. I needed to build templates to accurately place the 4 mounting holes for the drivers. Here are teh jigs I built:

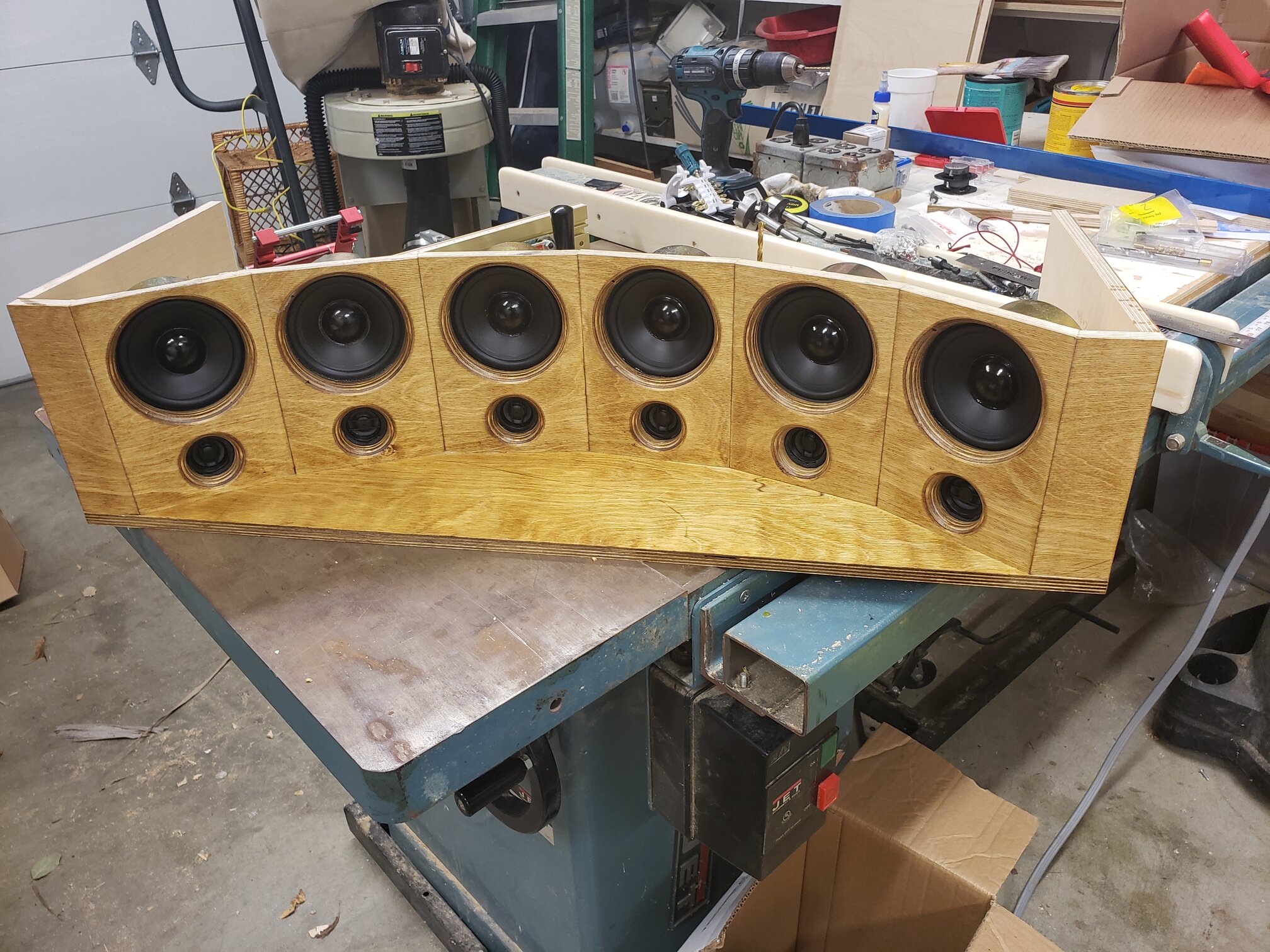

After drilling mounting holes and mounting drivers, it is starting to take shape:
The woofer template uses a wooden disk to center it, while the tweeter uses a bit of 1 1/2" drain pipe. I also went through several iterations before settling on 5/8" long screws.

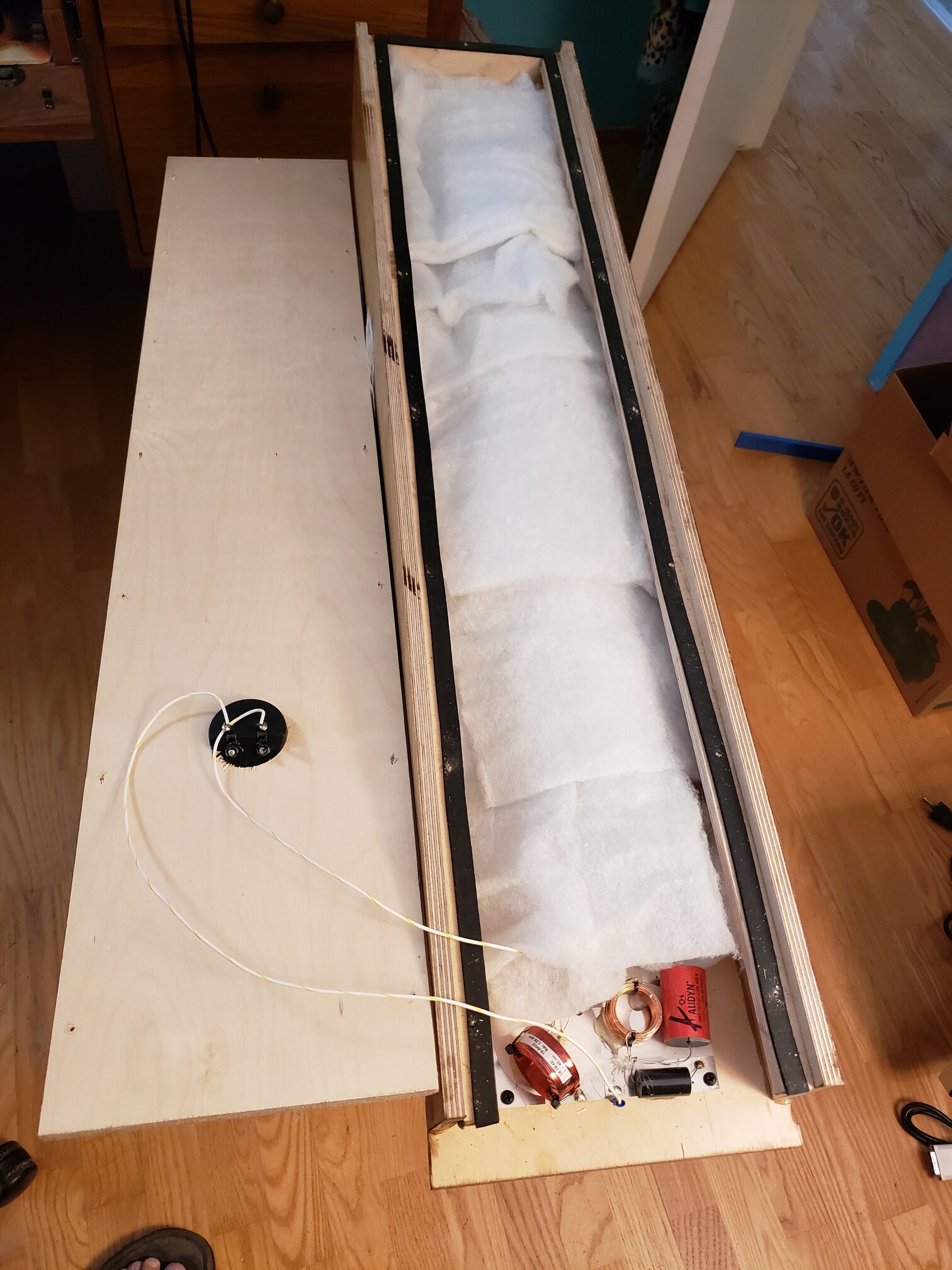

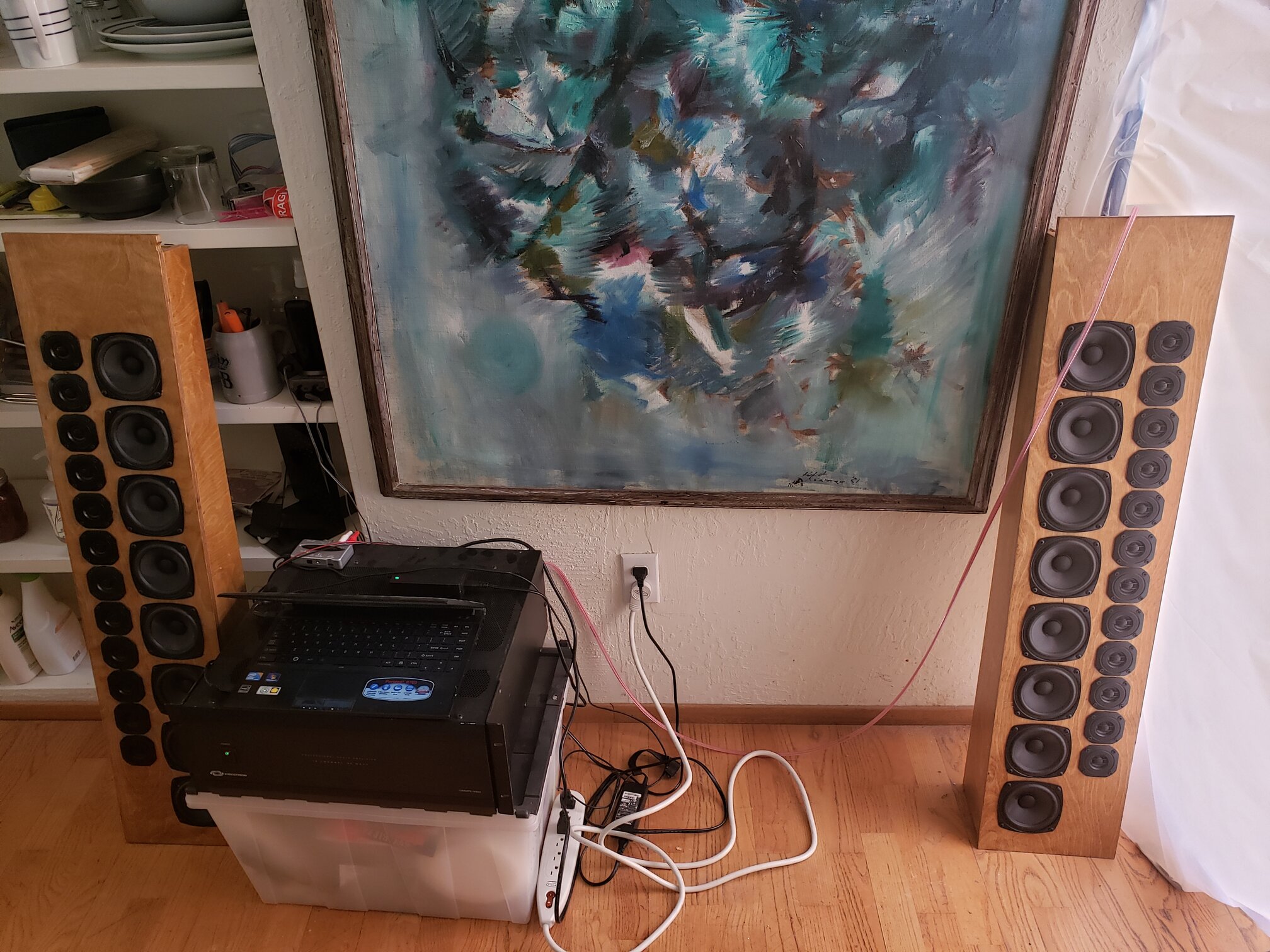

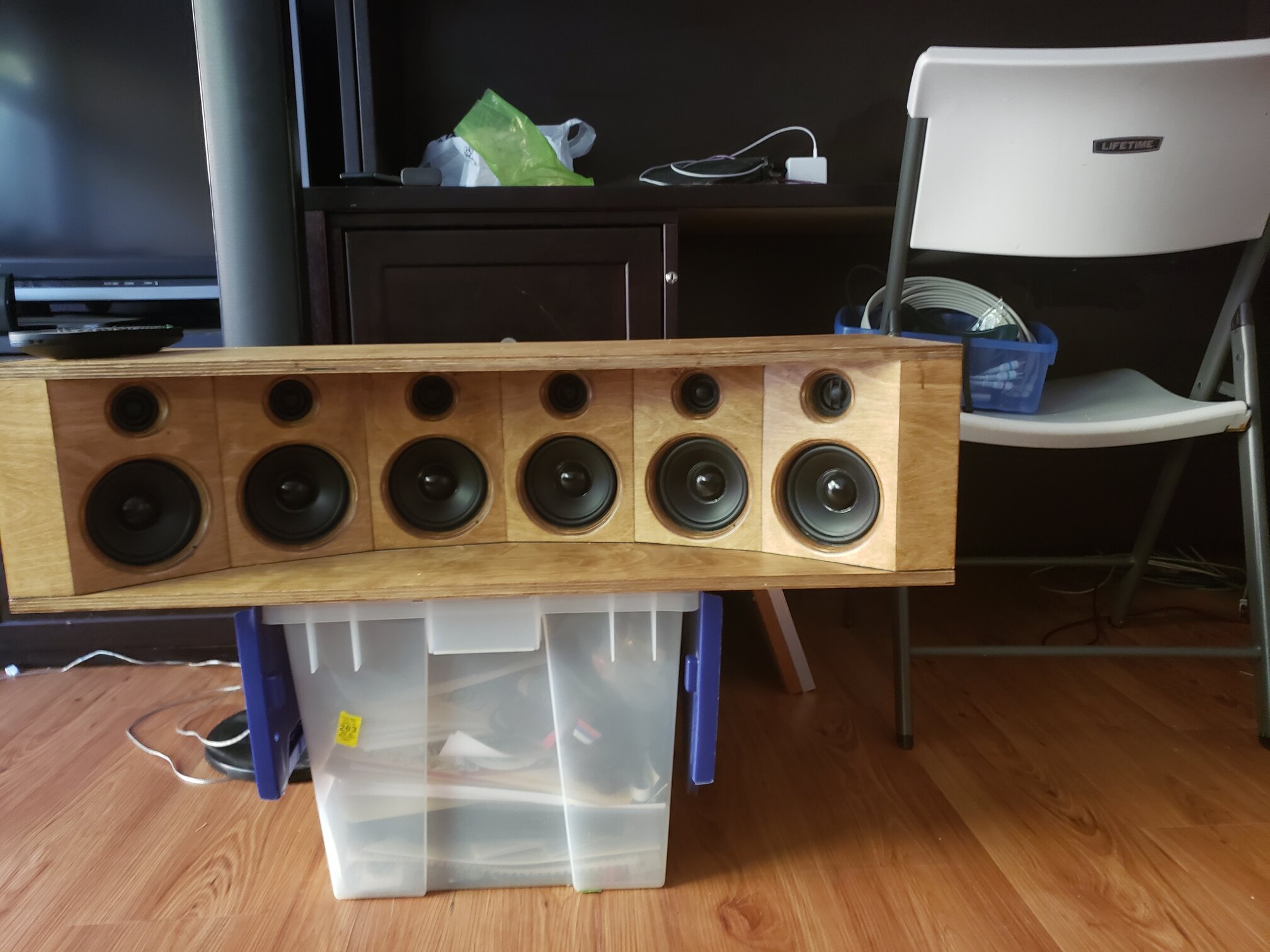

Here is the finished speaker:
I decided that for the TLAHs I would front mount the drivers. I also changed course and decided to use the Dayton driver instead of the Goldwood. It is lighter, and (in another thread) Bill recommended it. It has a built-in gasket on the back, but needs an annular ring for the gasket to sit in. I used the router and Jasper jig to rout out rings 4 1/16" in diameter and 1/16" deep:

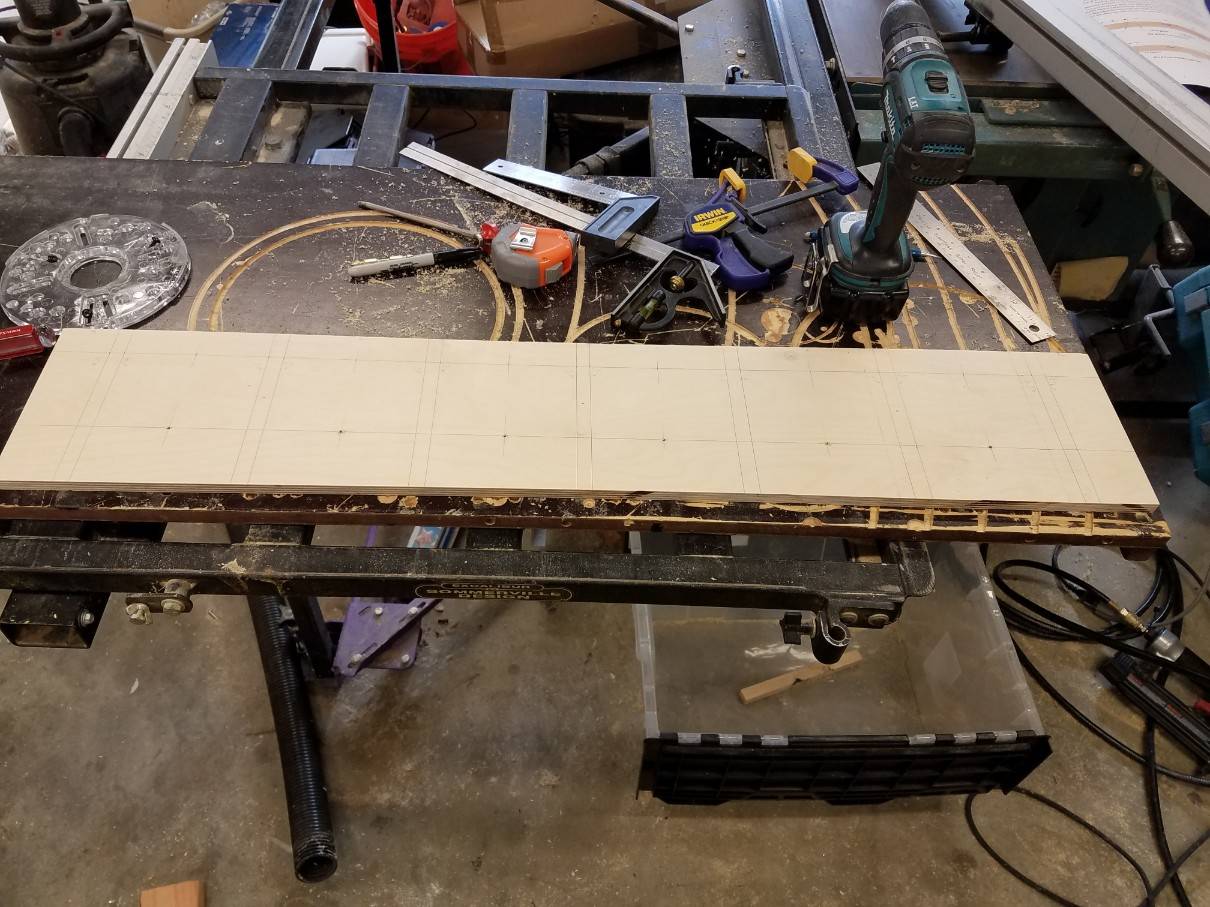

Next I routed holes 3 11/16" in diameter. I needed to clamp a piece of scrap inside the enclosure to hold the disks that were being removed and keep the router centered. Here are the first set of holes:
The tweeters fit nicely in 1 15/16" holes made with a Forstner bit. Here are teh two enclosures drilled and stained, ready for poly:
Built:
1 Omni-15 Tall Boy
2 DR250s
2 Titan 39s

User avatar
Tom Smit
Posts: 6956
Joined: Sat Jan 05, 2008 1:24 pm
Location: Sarnia, Ont. Canada

Re: HT Build: TLAH, SLA curved, TTLS

#9 Post by Tom Smit » Thu Sep 10, 2020 10:16 pm

Shoot, I just finished going through my Facebook feed, and now I was looking for the "like" button.
Looking good, so far. Keep it up.
TomS
