Re: Finally! Omni 12 Tall Boy build

#166 Post by CarterKraft »

CarterKraft wrote: Wed Oct 05, 2022 11:14 am I was thinking something like you suggested Seth, possibly rotated more towards the South but in that corner is fine for me, it is open for a long way behind that tree line.

I will take more video for sure, the videos were taken by my son who has a totally different video style than myself.

This is a satellite view to help with some scale. I have plenty of schools with large open parking lots but I am not sure if I can get a better/lower noise floor at them. I will set up here and give it a run, if I run into problems I'll find a new location.


sound test.JPG
I tried to set this up Saturday but the wind (I forgot about that LOL) had a 90db noise floor during gusts so it was aborted.
Weldon Carter

Bruce Weldy
Posts: 8044
Joined: Fri Nov 27, 2009 11:37 am
Location: New Braunfels, TX

Re: Finally! Omni 12 Tall Boy build

#167 Post by Bruce Weldy »

CarterKraft wrote: Wed Jan 18, 2023 9:37 am
Bruce Weldy wrote: Thu Sep 29, 2022 10:24 am
CarterKraft wrote: Thu Sep 29, 2022 8:28 am
I also realized I skipped the dampening foam (I guess I got too excited) so I need to revisit that.
You need to do that before any more testing.
I found a new 1.5" to 2" foam mattress topper when cleaning up recently. I currently have quilt batting stapled in the cabinet, would it be worth it to swap the batting for the mattress topper foam when I pull it down again to duratex?
I would.

6 - T39 3012LF
4 - OT12 2512
1 - T24
1 - SLA Pro
2 - XF210


"A system with a few knobs set up by someone who knows what they are doing is always better than one with a lot of knobs set up by someone who doesn't."

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#168 Post by CarterKraft »

Good deal, I will put that on the to-do list.

Thank you
Weldon Carter

User avatar
Bill Fitzmaurice
Site Admin
Posts: 28197
Joined: Tue May 02, 2006 5:59 pm

Re: Finally! Omni 12 Tall Boy build

#169 Post by Bill Fitzmaurice »

There's no advantage to foam over polyester batting when they're of equal thickness.

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#170 Post by CarterKraft »

The batting is much thinner really in my installation.
It would take another layer I bet to get equivalent thickness.
Weldon Carter

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#171 Post by CarterKraft »

Worked on the final details today. I bought a corner handle that I thought was going to be perfect but evidently I can't read a tape measure and it is sized perfectly for a toddler...

I did what I had planned on doing originally, build a handle from 3/4 EMT and wood. This was a little more challenging than I thought, but in the end it came out awesome.

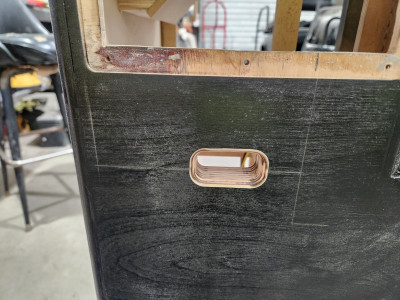

I'm working on a 2 LED, aux input panel for the front and a rear panel with power source selection switch, AC input power jack and a GX16 aviation connector for the DSP programmer.
Both panels will be inset 1" with proper 3/8" radius on the cutout.

I am still thinking about adding dynamic bass knob, but it might get hidden somewhere, I have learned that people like to turn knobs when presented with the opportunity.



As usual pix are sideways but will be correct when clicked.
Weldon Carter

User avatar
Tom Smit
Posts: 7323
Joined: Sat Jan 05, 2008 1:24 pm
Location: Sarnia, Ont. Canada

Re: Finally! Omni 12 Tall Boy build

#172 Post by Tom Smit »

I'm glad you got the "up"...."side" right, LOL. Anyway, well done... you did a great job.
TomS

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#173 Post by CarterKraft »

I promise I'm gonna get the pix situation figured out before this is over 🤦
Weldon Carter

User avatar
Tom Smit
Posts: 7323
Joined: Sat Jan 05, 2008 1:24 pm
Location: Sarnia, Ont. Canada

Re: Finally! Omni 12 Tall Boy build

#174 Post by Tom Smit »

Tom Smit wrote: Mon Jan 23, 2023 10:25 pm I'm glad you got the "up"...."side" right, LOL. Anyway, well done... you did a great job.
In case I got misunderstood, I meant the pocket for the grab handle.
TomS

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#175 Post by CarterKraft »

Tom Smit wrote: Tue Jan 24, 2023 10:43 pm
Tom Smit wrote: Mon Jan 23, 2023 10:25 pm I'm glad you got the "up"...."side" right, LOL. Anyway, well done... you did a great job.
In case I got misunderstood, I meant the pocket for the grab handle.

Trust me I had a few OH S*** moments where I wondered if I had done just that. :loler:
Weldon Carter

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#176 Post by CarterKraft »

My laser cut logos came in so I will get back on this project tonight, I really need to get it wrapped up.
Weldon Carter

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#177 Post by CarterKraft »

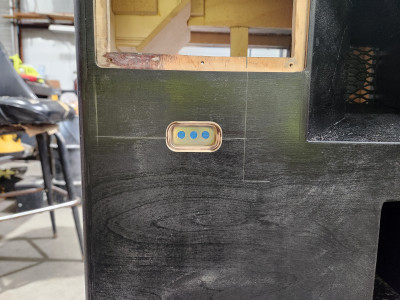

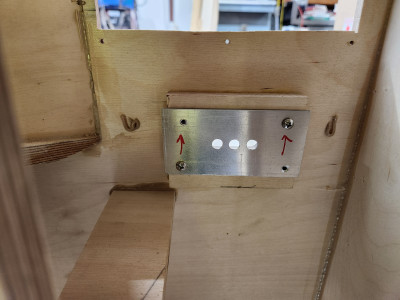

Got the LED, aux port installed. I'll paint the aluminum plate before permanent installation and glue it in with some silicone.

Phase one of the logo is installed, this is a thin piece of plywood around 1/8" hopefully I can make it look good when it gets duratexed. I haven't decided exactly how I am going to handle that just yet.
Weldon Carter

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#178 Post by CarterKraft »

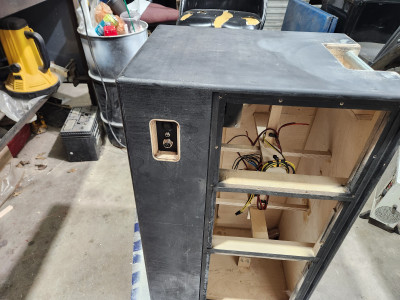

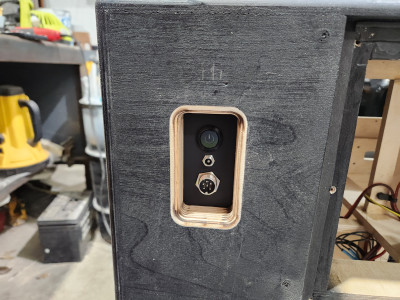

Got the rear panel installed. Power button selects battery or 5.5mm power port for AC power brick. The 6 pin GX16 connection is for the KPX programmer to the DSP chip so it can be remotely programmed with out having to open the cabinet.
Weldon Carter

CarterKraft
Posts: 203
Joined: Thu Oct 22, 2020 1:46 pm
Location: DFW

Re: Finally! Omni 12 Tall Boy build

#179 Post by CarterKraft »

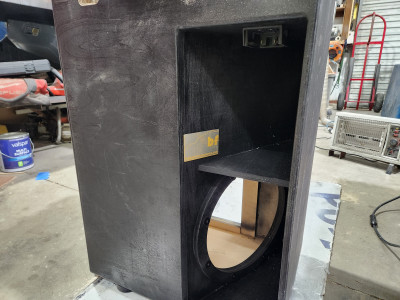

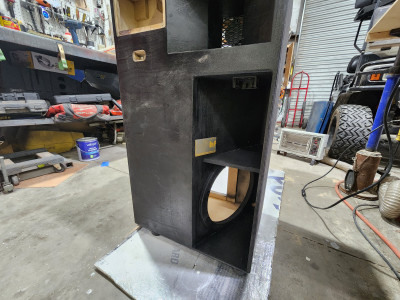

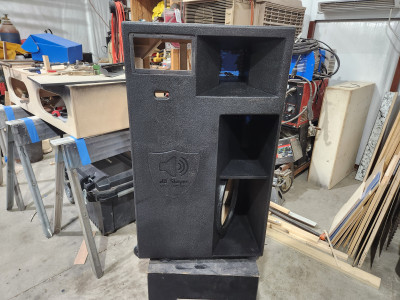

First coat of duratex, I'm gonna love this stuff I think.
Weldon Carter

User avatar
Seth
Posts: 2312
Joined: Thu Sep 10, 2009 8:06 pm
Location: Sacramento, California, USA
Contact:

Re: Finally! Omni 12 Tall Boy build

#180 Post by Seth »

I really like how that logo looks, as is.
Build in process - 2 WH6, one Alpha 6a loaded, one PRV Audio 6MB250-NDY loaded

Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421
