If I plan to run three 4 ohm drivers in a TAT, could I load two Speakon jacks into the side, and wire one of them with the drivers in series, and the other with the drivers in parallel?
Something tells me that's a bad idea, but I figure someone here can tell me for certain.
Thanks!
Speaker wiring question.
-
Ryan Sober
- Posts: 204
- Joined: Sat Feb 01, 2014 8:34 pm
- Location: Birmingham, AL
Re: Speaker wiring question.
Don't do it. All the current for the 2 speakers in parallel will be running through the single series coil. That coil will be taking the brunt on the power while the other two will be coasting along for the ride. The levels won't be equal out of the speakers either.
Your arrangement could work being driven from two separate amplifiers, but you would have to balance them carefully to equalize the power across all three coils. Easy to do on the workbench, but difficult to get right in the field.
Your arrangement could work being driven from two separate amplifiers, but you would have to balance them carefully to equalize the power across all three coils. Easy to do on the workbench, but difficult to get right in the field.
Built
T48s
WH8s
SX212
T48s
WH8s
SX212
-
BrentEvans
- Posts: 3041
- Joined: Thu Oct 09, 2008 10:38 am
- Location: Salisbury, NC
Re: Speaker wiring question.
If I understand your questions correctly, the answer is no. If you have parallel wiring and series wiring connected at the same time, you'll end up with shorts.
If you want to be able to switch them around, just install a jack for each speaker separately, then make up the wiring harnesses externally. Optionally, you could install only one speakon jack, and bring all the wiring out to a terminal strip or banana plugs which could then be reconfigured for series or parallel as necessary.
If you want to be able to switch them around, just install a jack for each speaker separately, then make up the wiring harnesses externally. Optionally, you could install only one speakon jack, and bring all the wiring out to a terminal strip or banana plugs which could then be reconfigured for series or parallel as necessary.
99% of the time, things that aren't already being done aren't being done because they don't work. The other 1% is split evenly between fools and geniuses.
Re: Speaker wiring question.

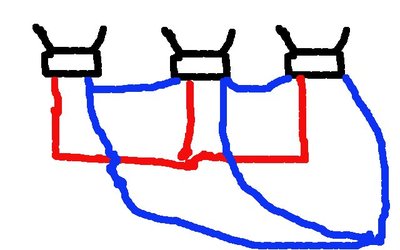

It won't work as you hope. The power will take the easies route when you are trying to do series.
- Attachments
-
TomS
-
Bill Fitzmaurice
- Site Admin
- Posts: 28968
- Joined: Tue May 02, 2006 5:59 pm
Re: Speaker wiring question.
You can't do it with separate jacks. You need to use a multi-pole switch. Don't see the need for this myself.
-
Ryan Sober
- Posts: 204
- Joined: Sat Feb 01, 2014 8:34 pm
- Location: Birmingham, AL
Re: Speaker wiring question.
Thanks all, that's what I figured. I love the diagram, Tom. Thanks for taking the time.Tom Smit wrote:It won't work as you hope. The power will take the easies route when you are trying to do series.
I'm just going to run them parallel, and call it a day.
1.6 ohms + 2 for the horn puts me somewhere close to 3.5, and my amp is 2 ohm capable.
If I kill the amp... eh, it was free anyway.
Re: Speaker wiring question.
Ok forgive me if this is a stupid question, but I have read in the plans where dual speakers are used, but never three. Maybe I misunderstood the OP. Is he planning on having 3 TAT's?
Edit: I read his other post. I got it. I think it will be awesome. A quad TAT
Edit: I read his other post. I got it. I think it will be awesome. A quad TAT
