18" T30 Build

[abrockey]

Hey guys! I'm well underway in my first successful BFM build. Started with an autotuba, did it all by my self, rushed it, ruined it (braces were an after thought), and made a call for help. My buddy Jim has built 4 T36s, 8 O-Top 12s for his own sound, and also a dozen or so t30s for another friend. Of course his resume doesn't stop there, but it was the right call. He forced me to do it right and kept my a$$ in check when I wanted to rush. Painfully, I listened and the results (so far) were worth it. I had so much to learn and still more to learn as well. I'm building 2 t30's for my PA, and later plan to build some Jack 10's for the tops.

Bill, THANK YOU FOR THESE PLANS!!!

On to the build:

Step one... research, Research, RESEARCH and cutlist, Cutlist, CUTLIST! I decided to make mine 18" wide so I could transport them in my small SUV to gigs. And I settled on the Eminence Kappalite 3012LF. We also built my cabs mirrored so the access panels are always up or out.

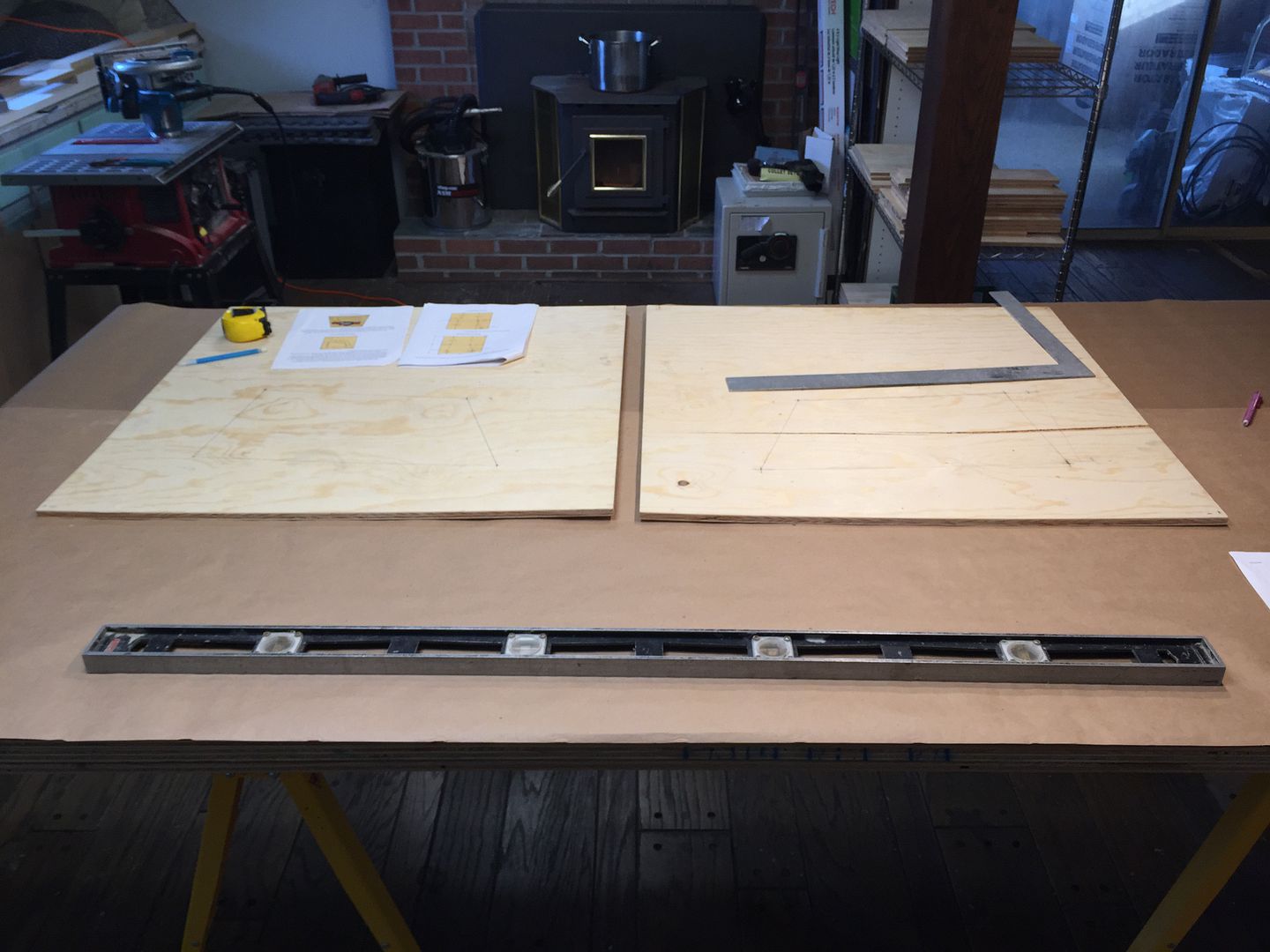

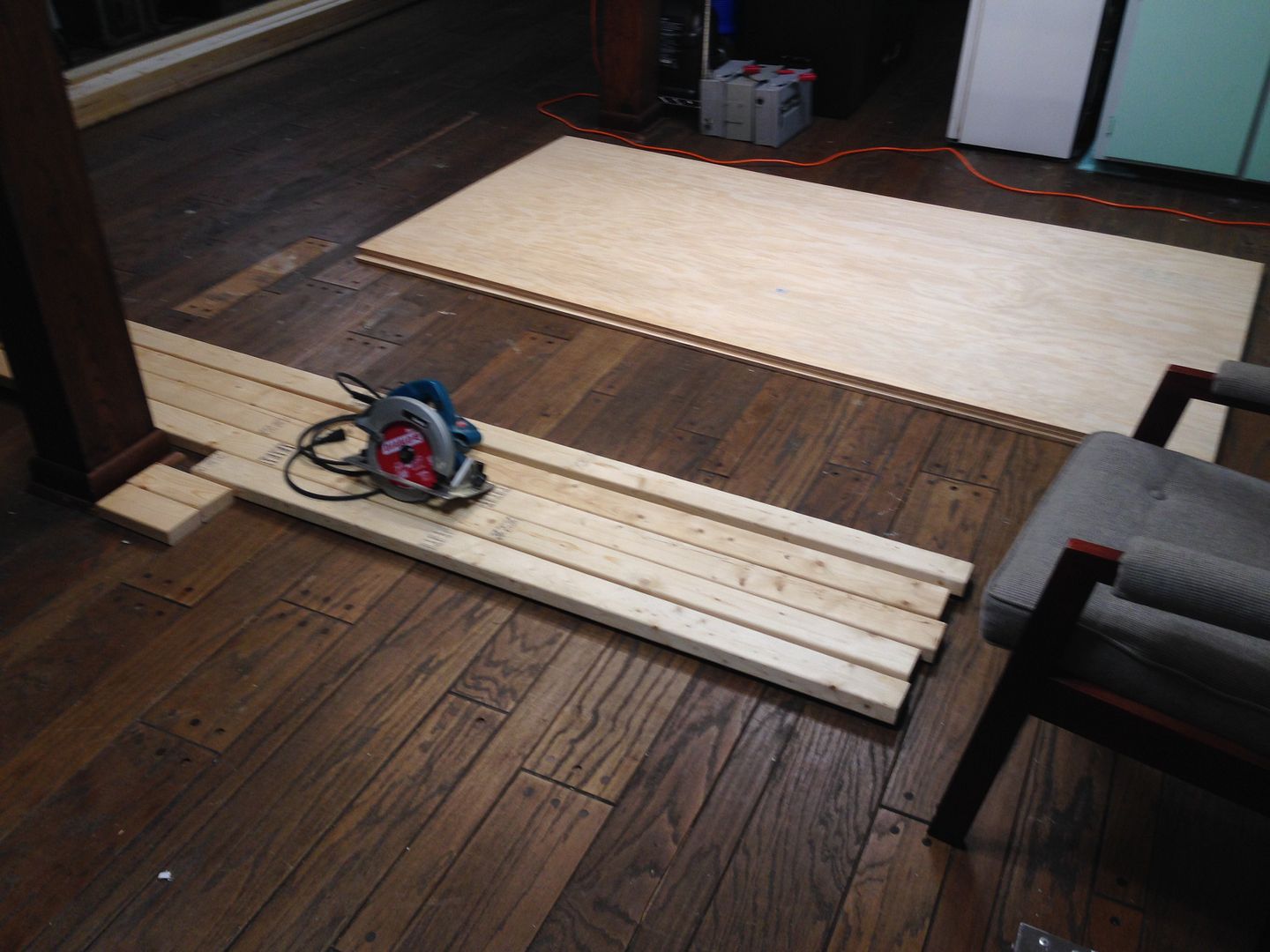

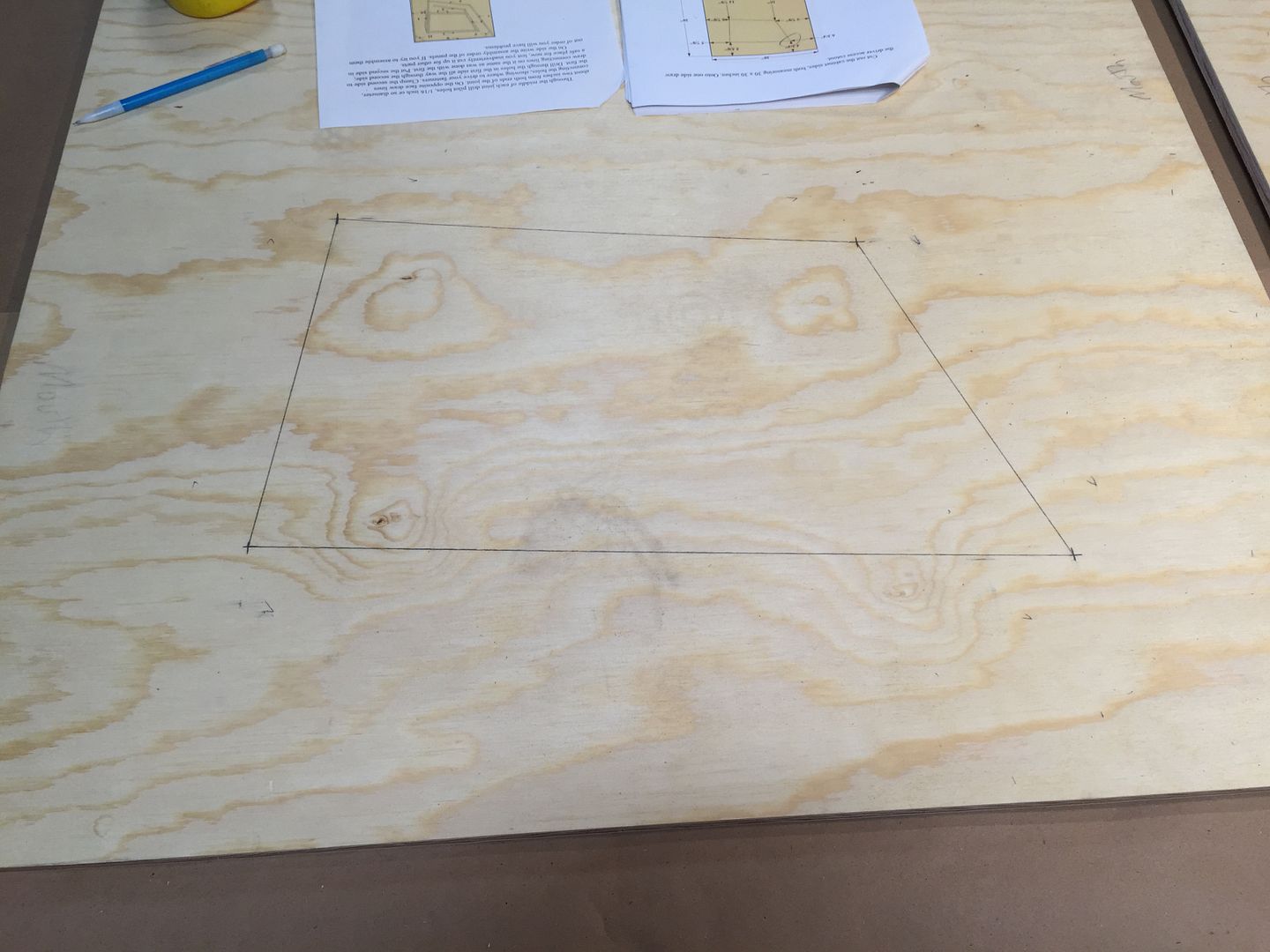

We took all the measurements from the build directions from Bill and over sized them for a rough cut and started ripping away!

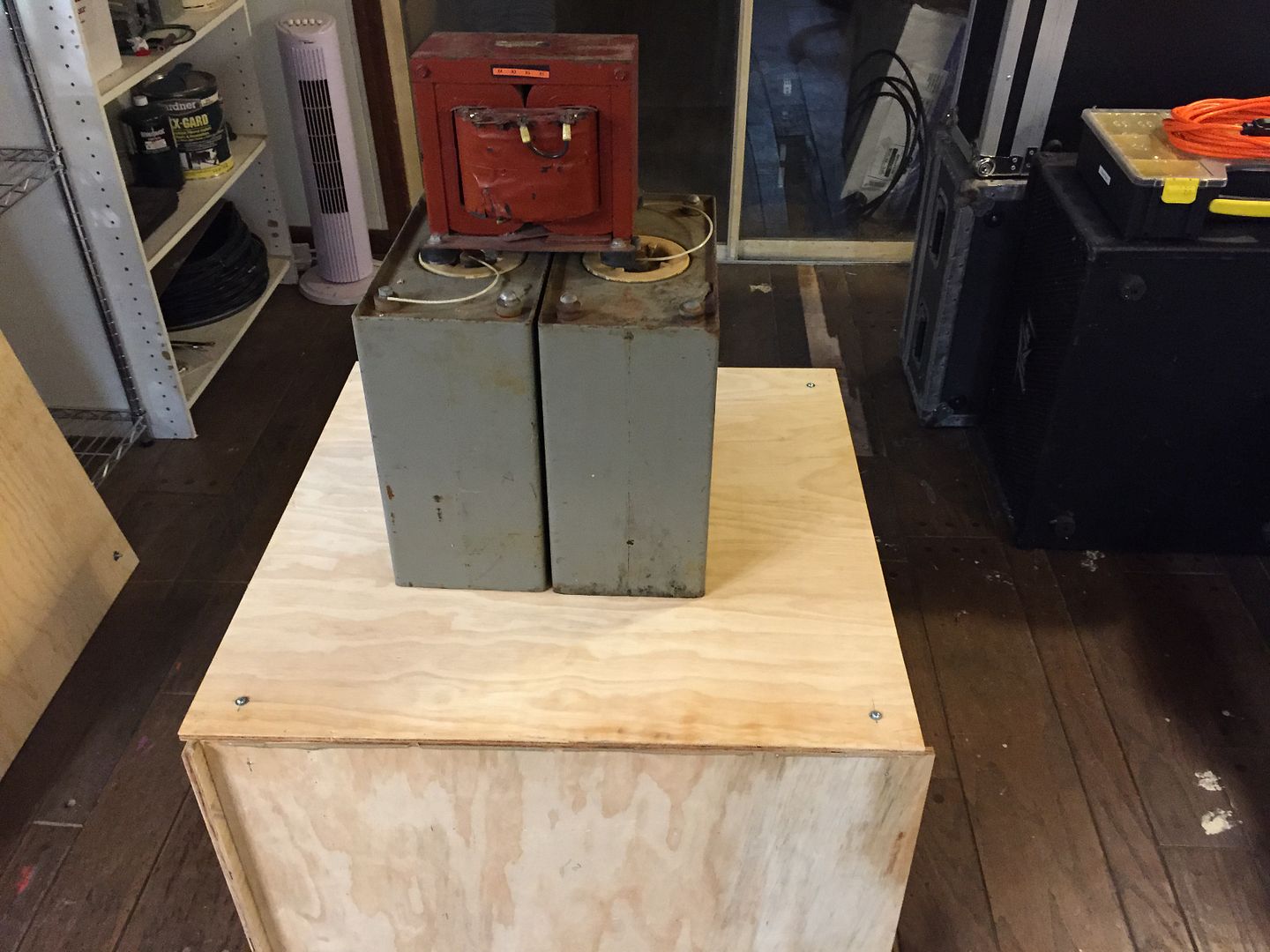

And then allowed the rough panels to sit and placed some weight on top.

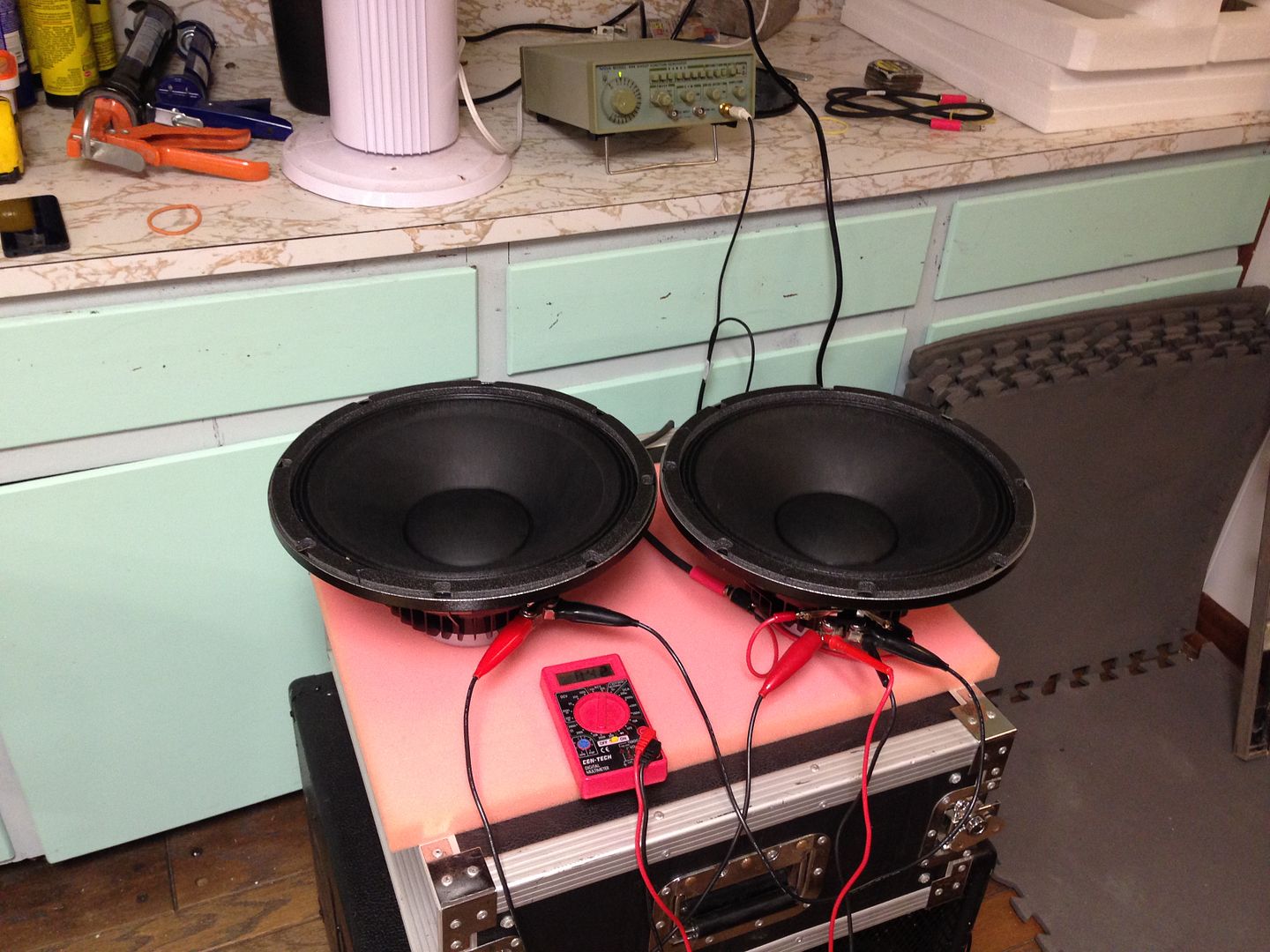

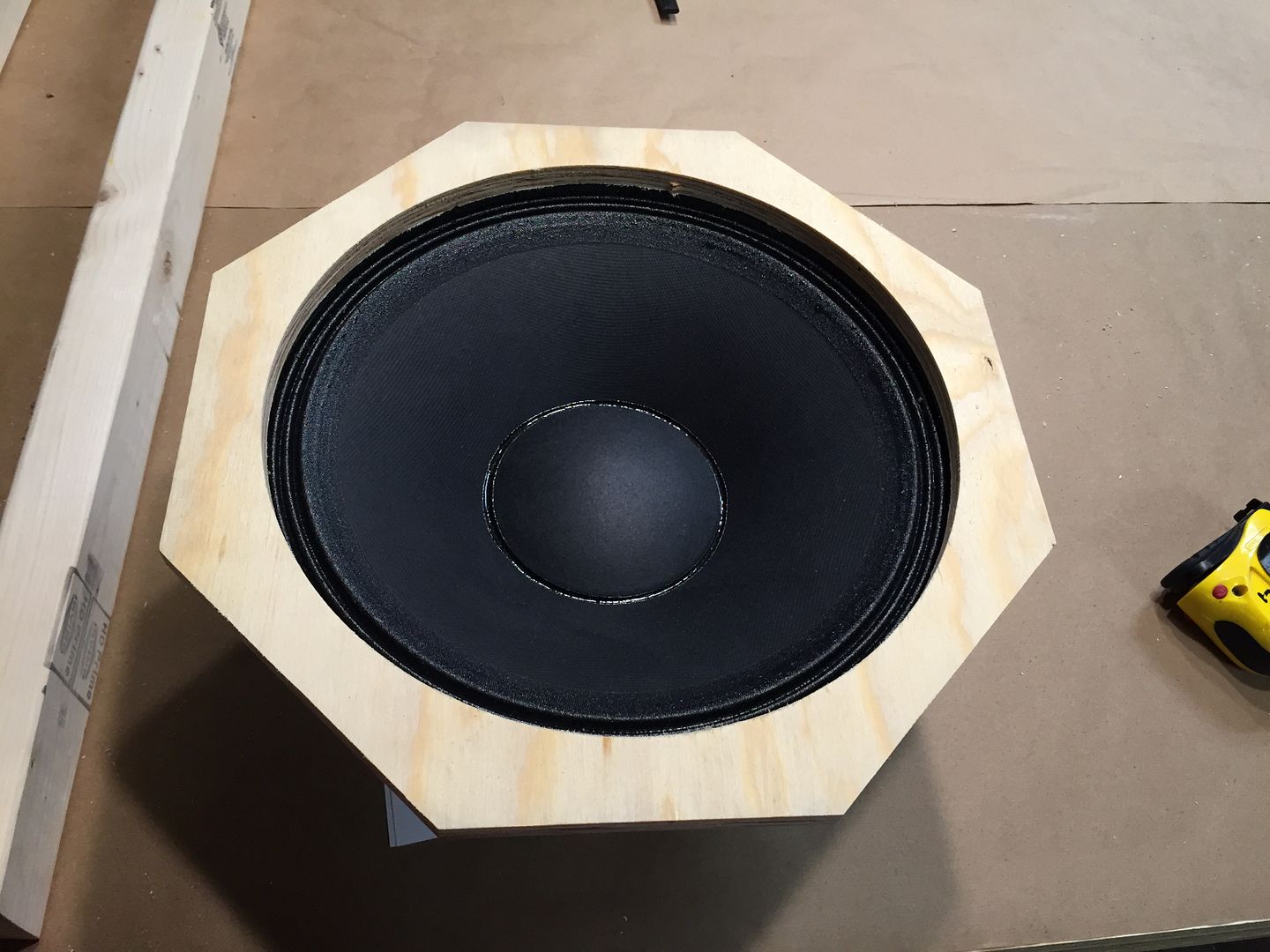

Meanwhile, we hooked up a signal generator and started the break-in process, and let it go for 48 hours.

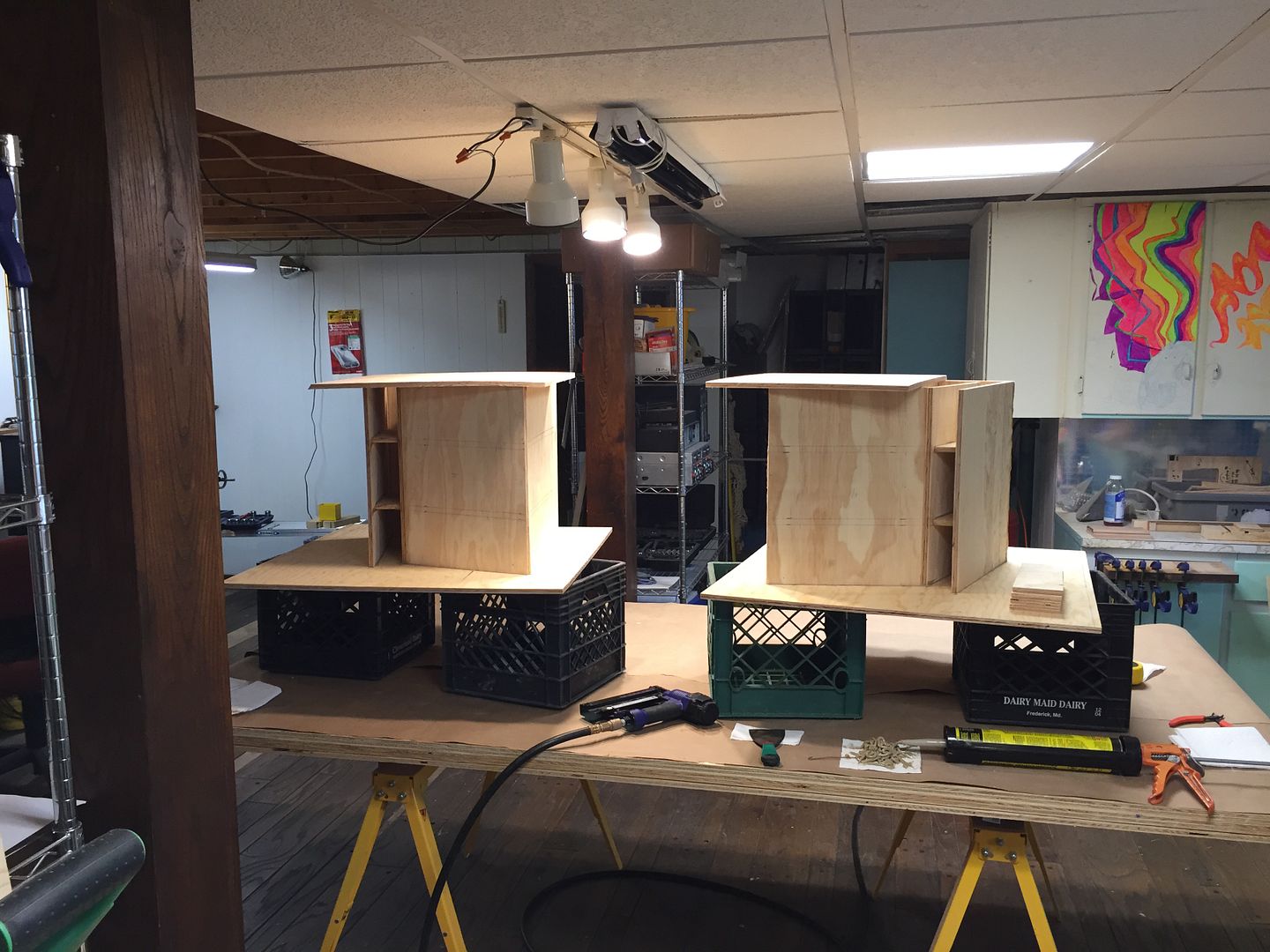

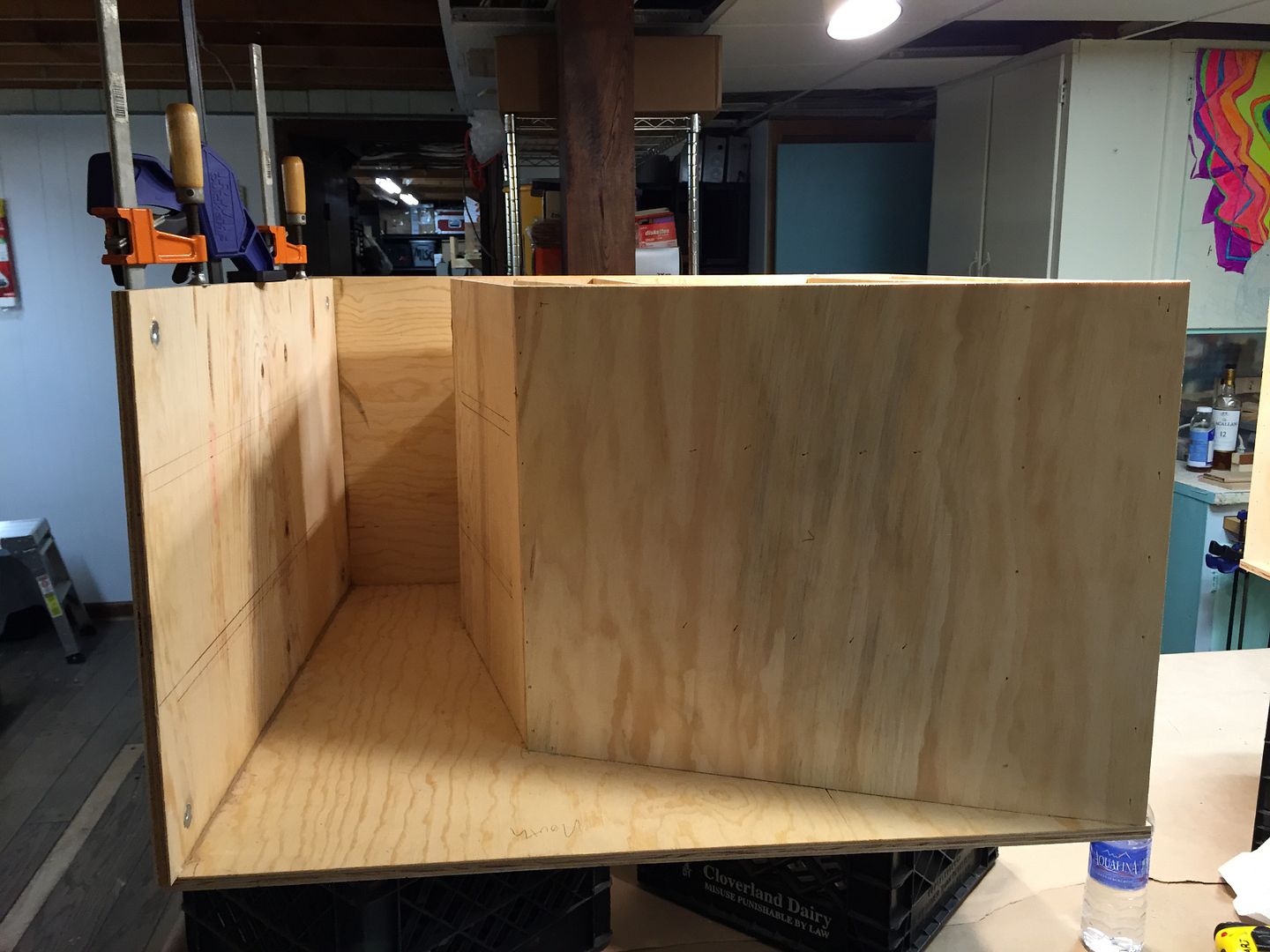

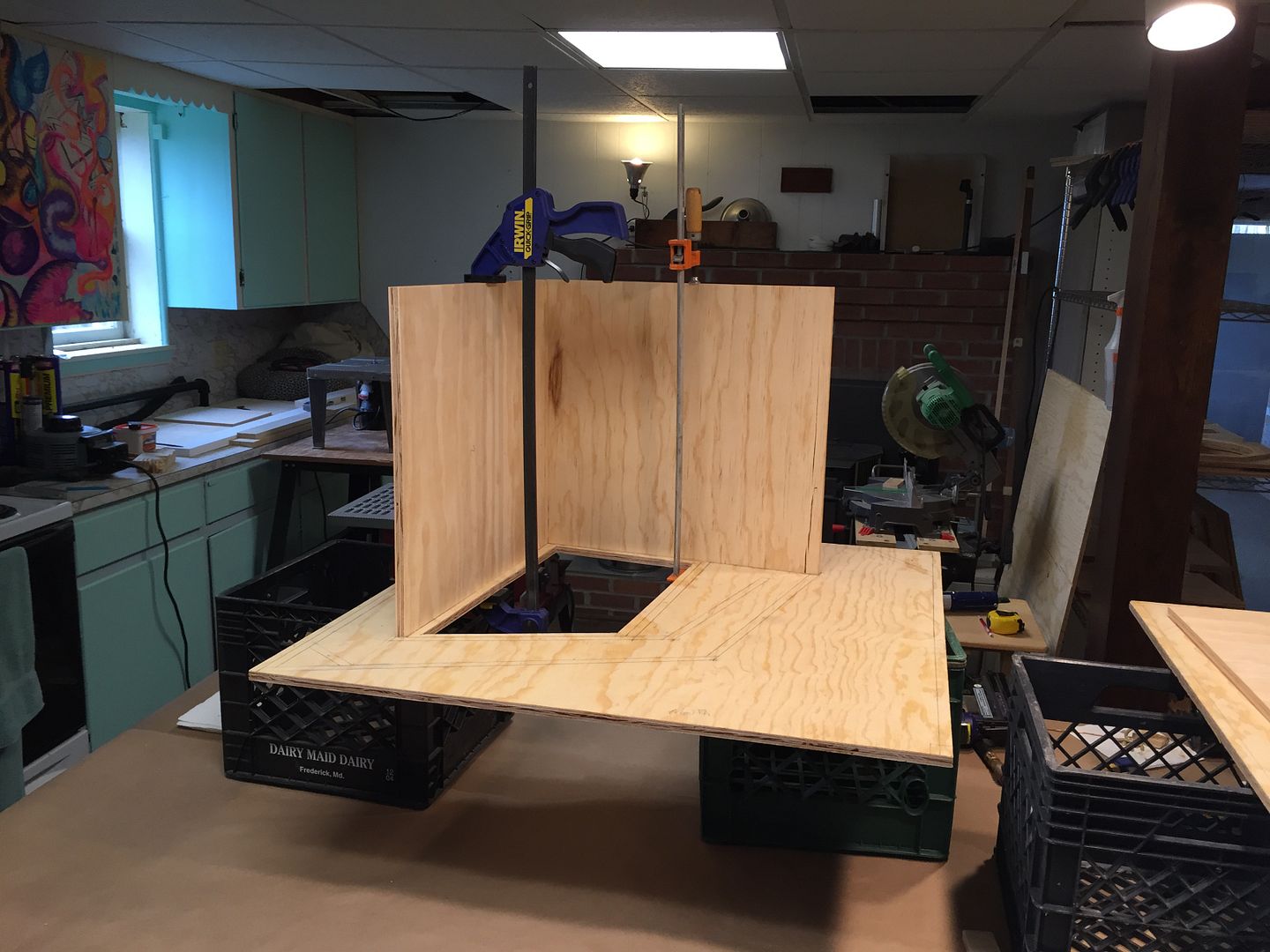

So after a LONG break, a few moves later, I was FINALLY able to get back on this. I didn't take any pics while we went though every piece and final cut all the panels and braces, again leaving some over sized, the build process had commenced!





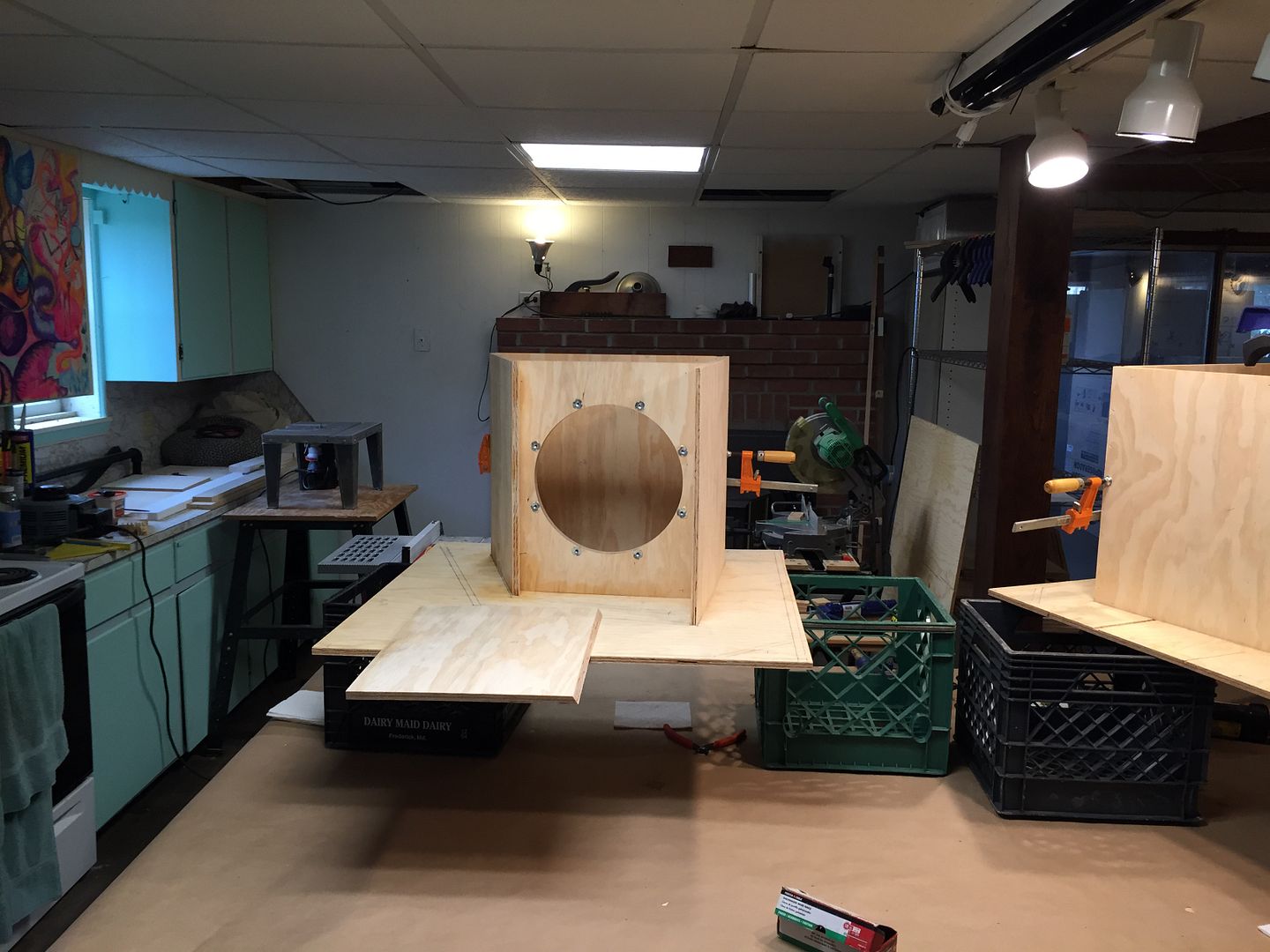

Here is Jim using the router table to make some cirlces..



PERFECT!

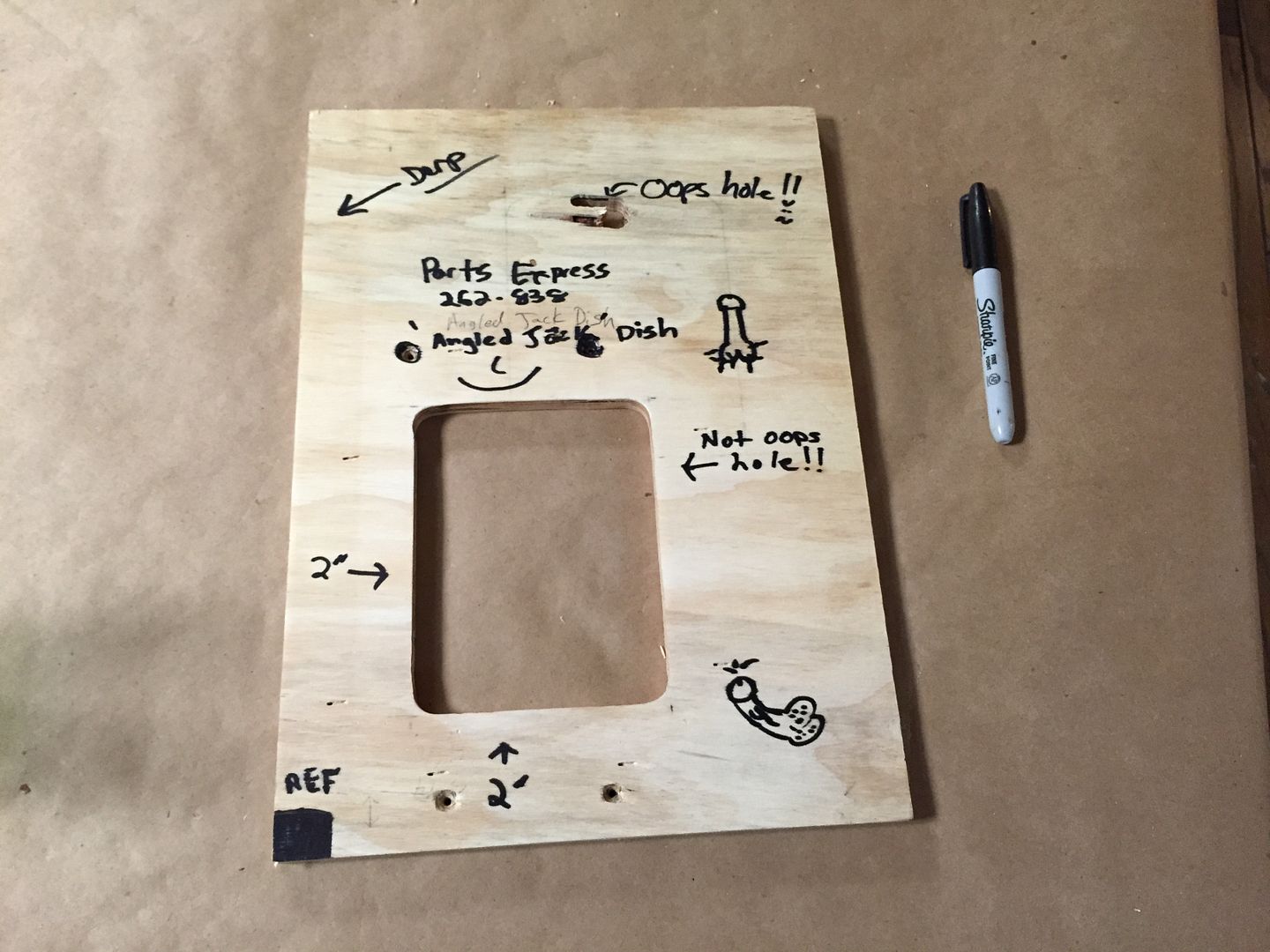

Using the mill to make a template for the jack plates. Jim makes it look SOO damn easy! It was early in the night, we do NOT use machinery while intoxicated!!



Of course we plan to build more, so make sure to mark your "wood", I mean.. template!



Lets make some snails!:













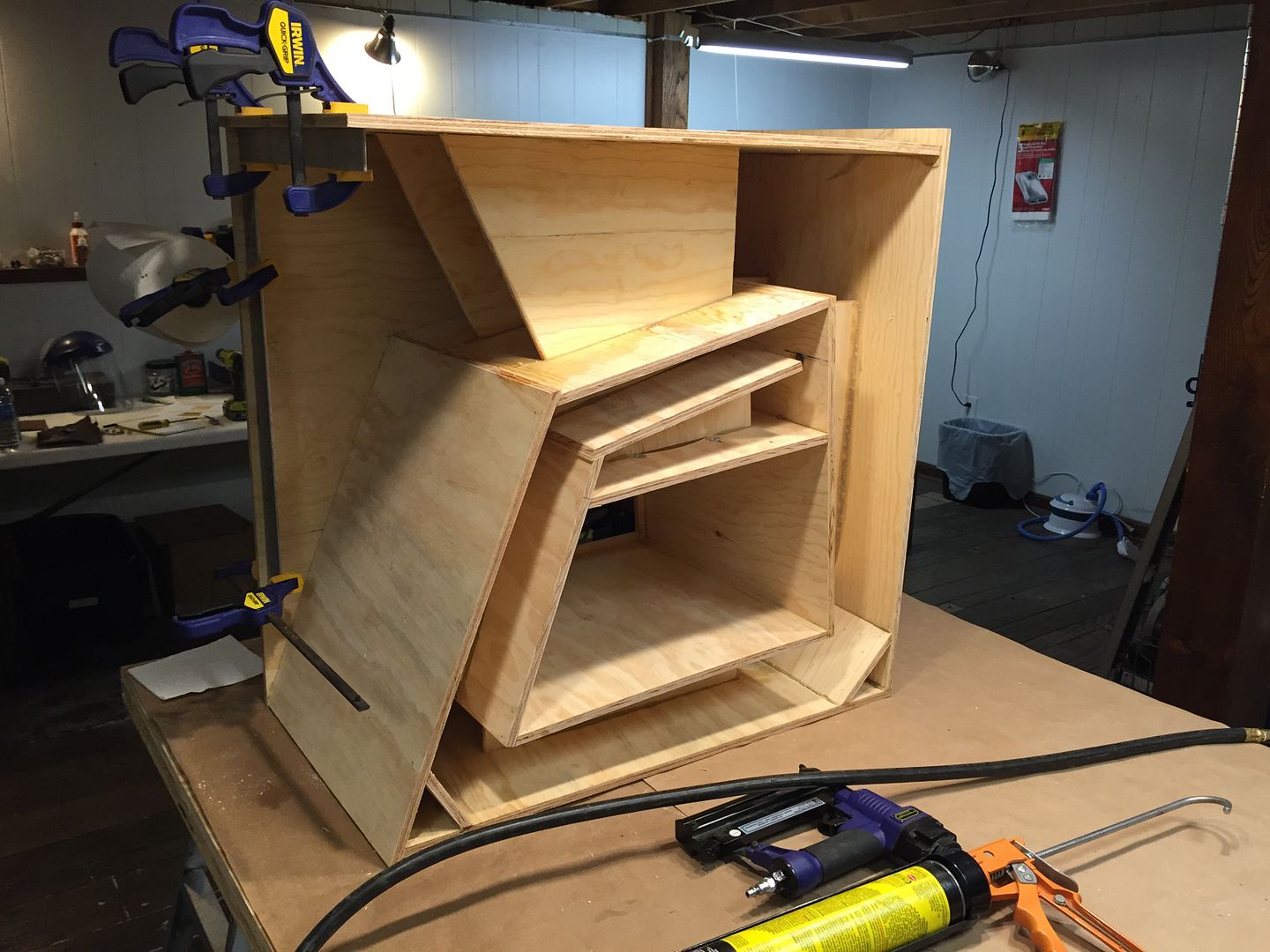

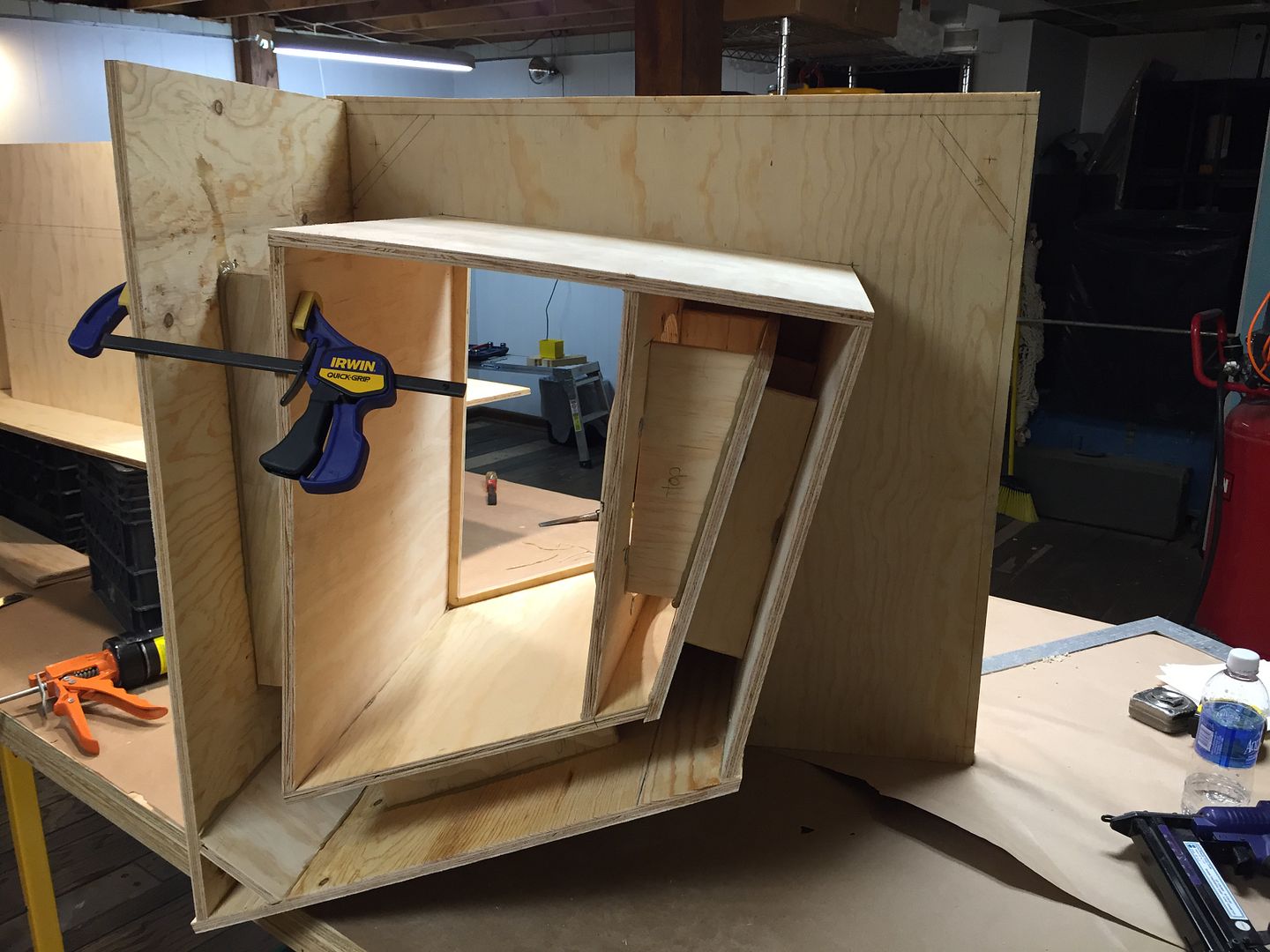

Simple... right? lol



Spooge!!

[abrockey]

So while routing the edges and we finished one cab, we decided the bass wasn't loud enough. Resolved! lol



And of course later that turned in to this:



Yes, we really took time away from the build to make a 12" to 2" woofer adapter...

Video Here

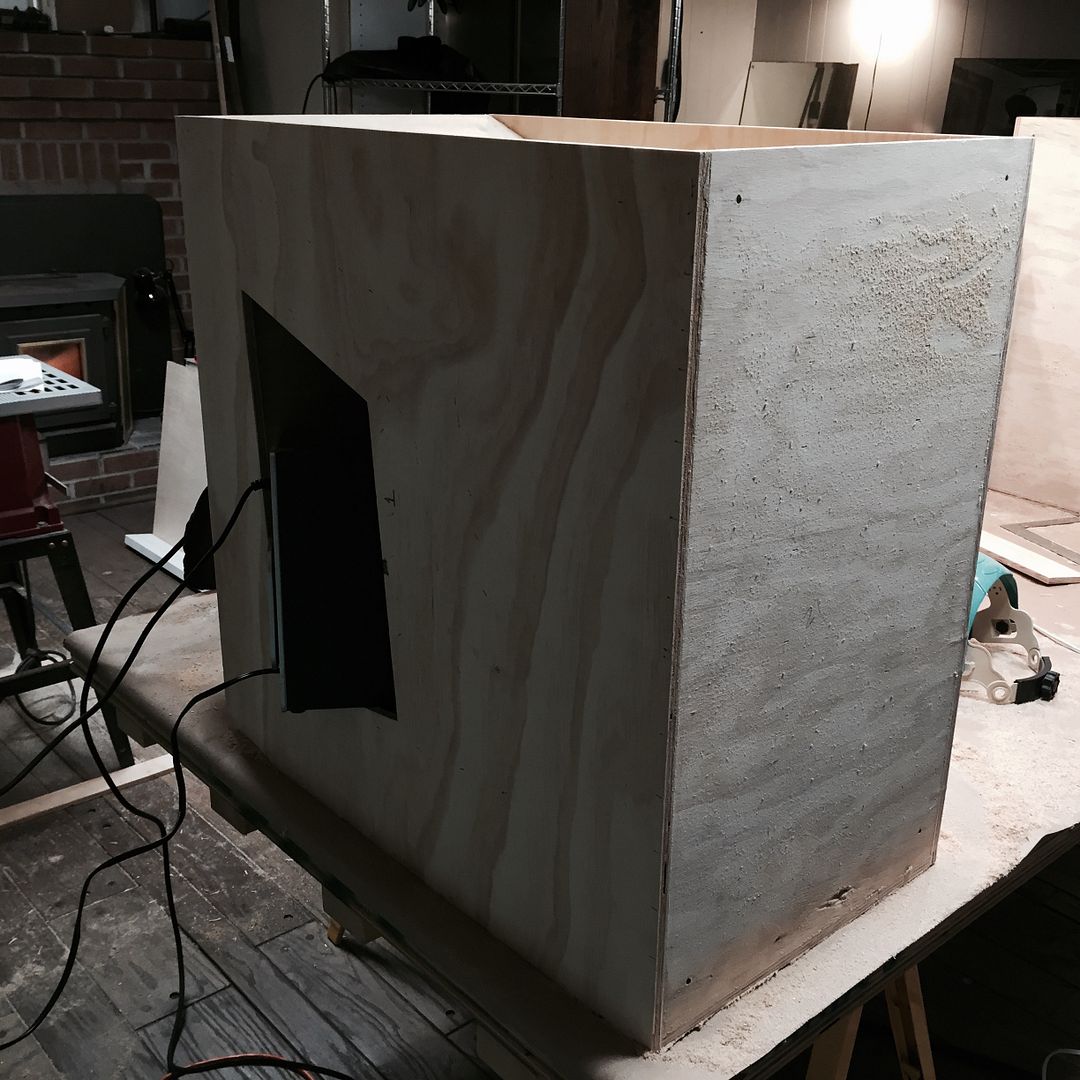

We realized that the jake plate hole was open, so we covered it. I did not take anymore video. Either way not bad. We did a test run with the kappalite after. What better to do while waiting for the flanges to dry.

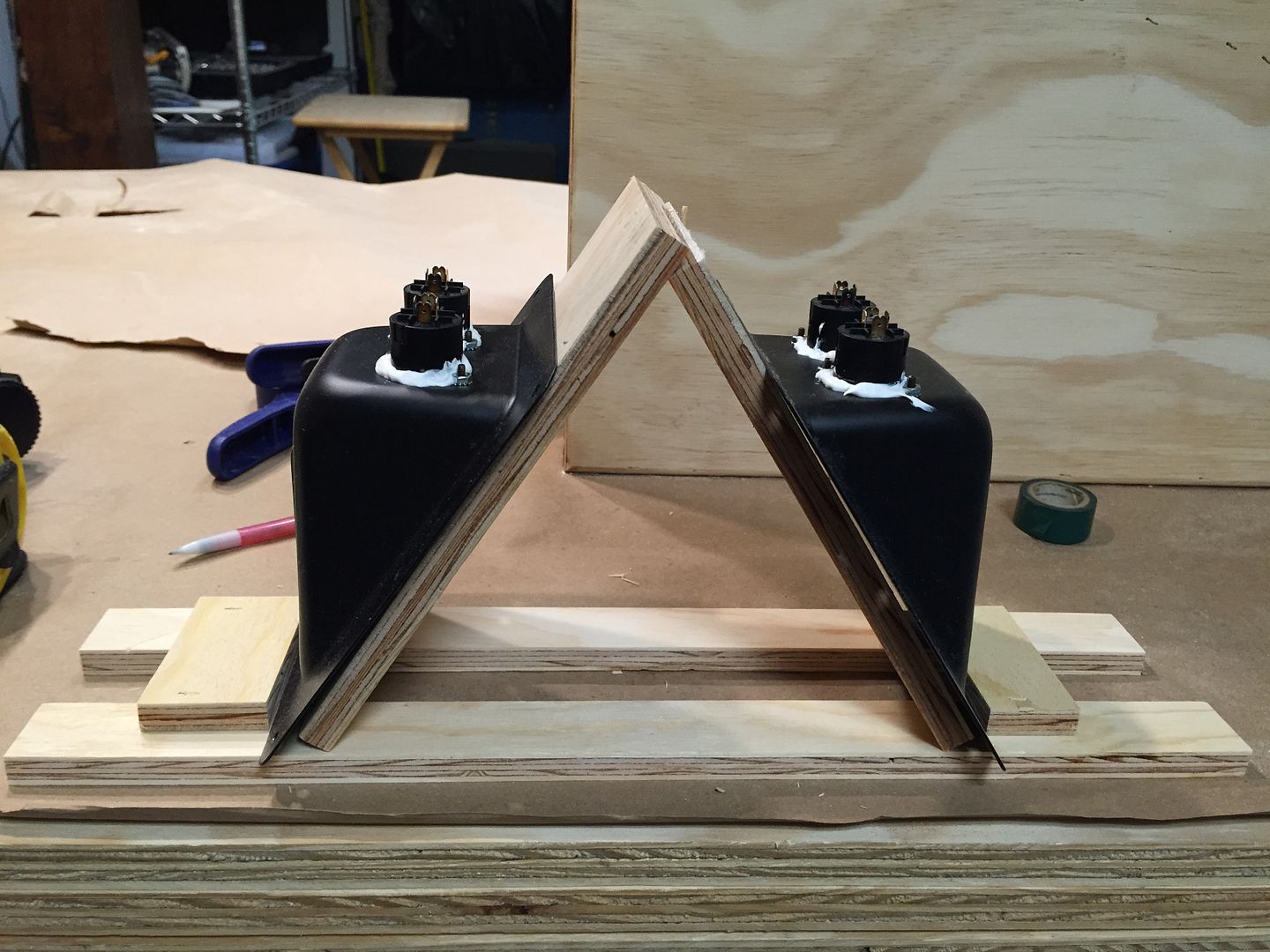

Jack plates on a custom made stand to seal the speak-on jacks.

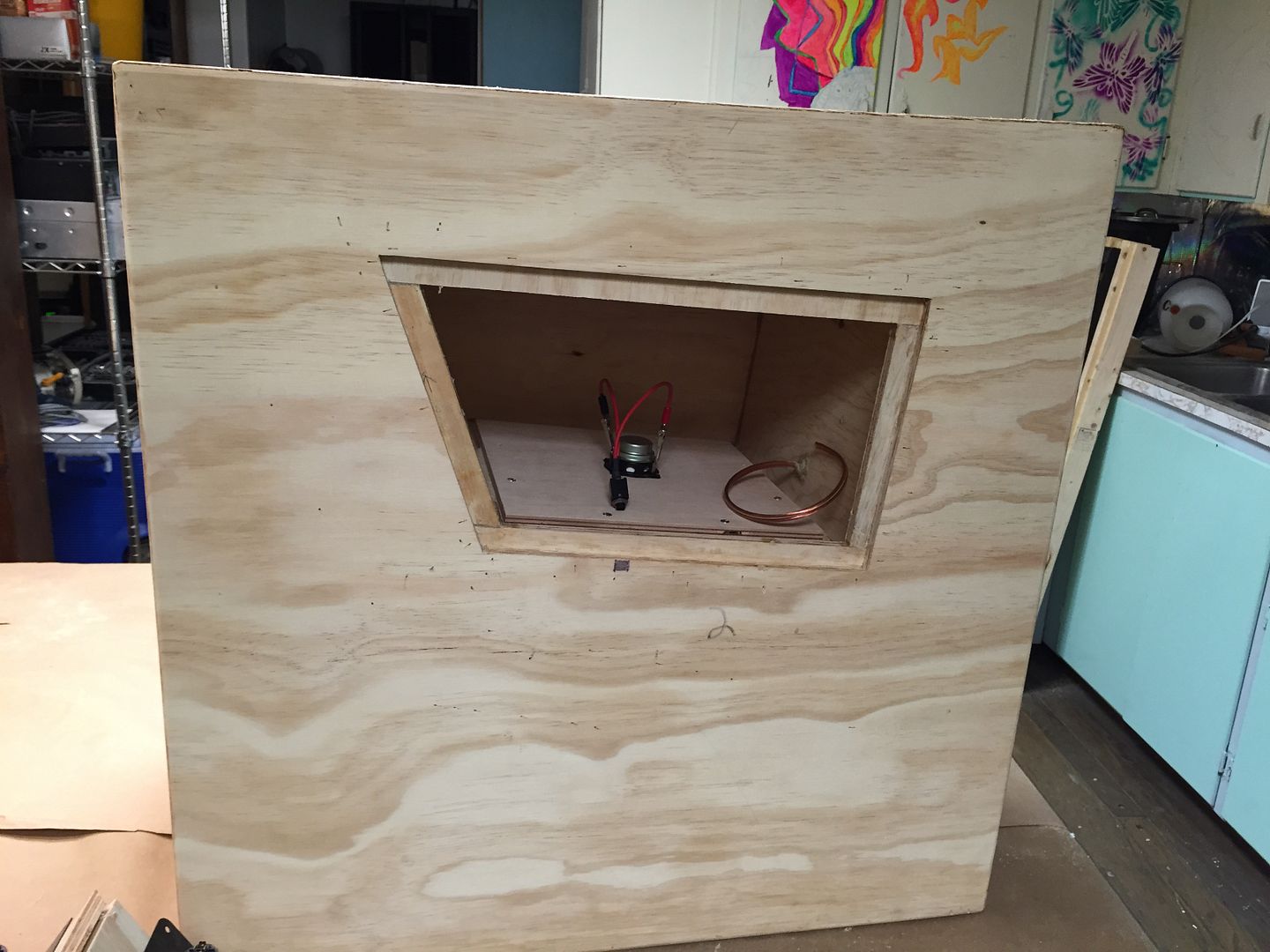

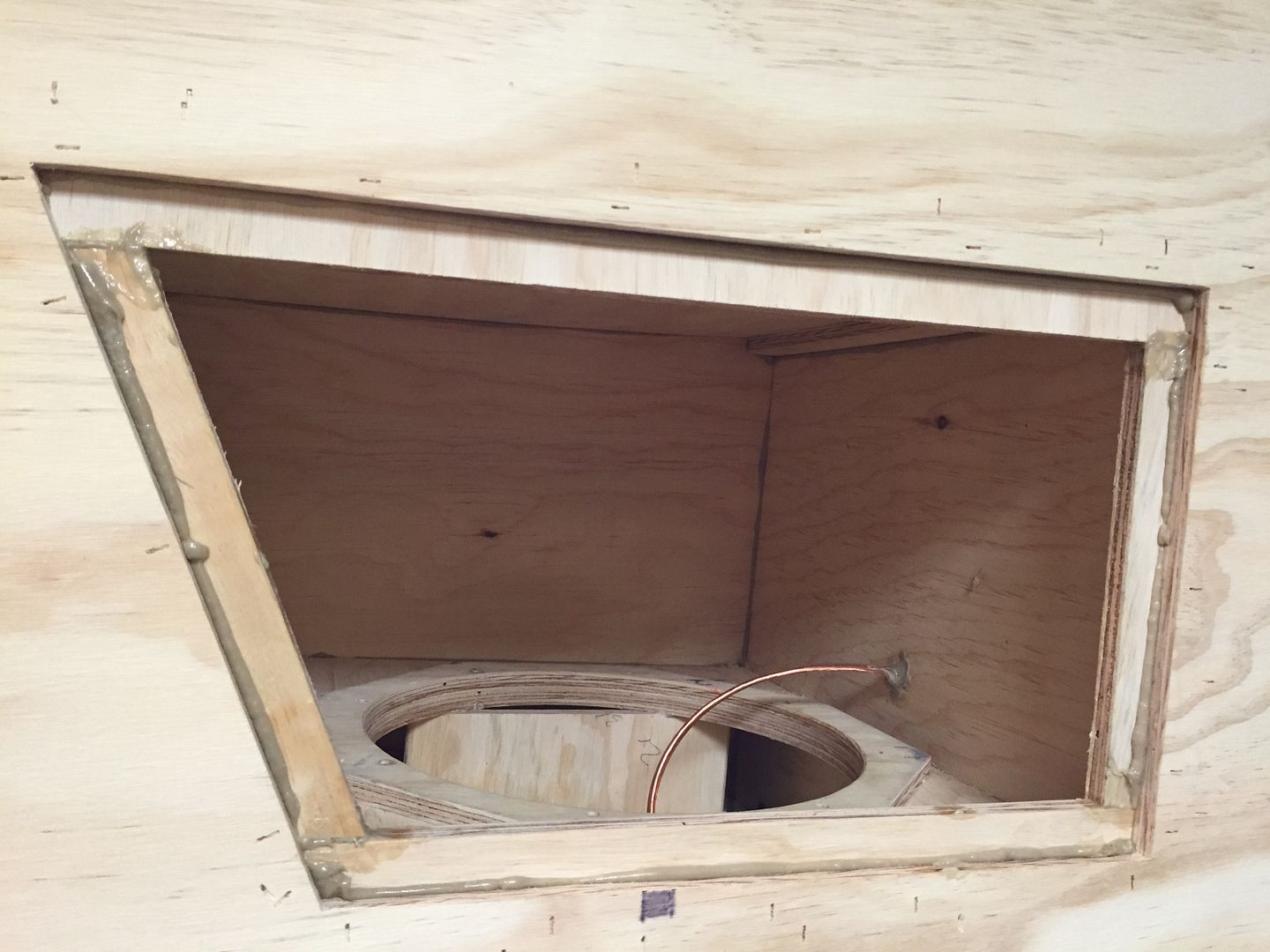

Wired and sealed, flanges installed! Waiting for glue to dry to scrape out the excess.



Sucess!



That's where I am for now. Next step is t-nuts for the access hole, sand and finish. I'm pretty set on staining these cabs with a dark stain. Every time I see Jim separating his speakers that were finished with duratex, I'm convinced I don't want the same head ache. 4 years later it's still soft and his cabs stick together after being stacked for a short period. I'll post some final pics when I complete the rest!
