I was visiting my local hardwood supplier, and much to my surprise, they had BB ply!
Sourced a fresh new Delta Lite II 2515.
This should be another fun build.
J15 Build
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
J15 Build
I'm back for another J15 build (woofer only).

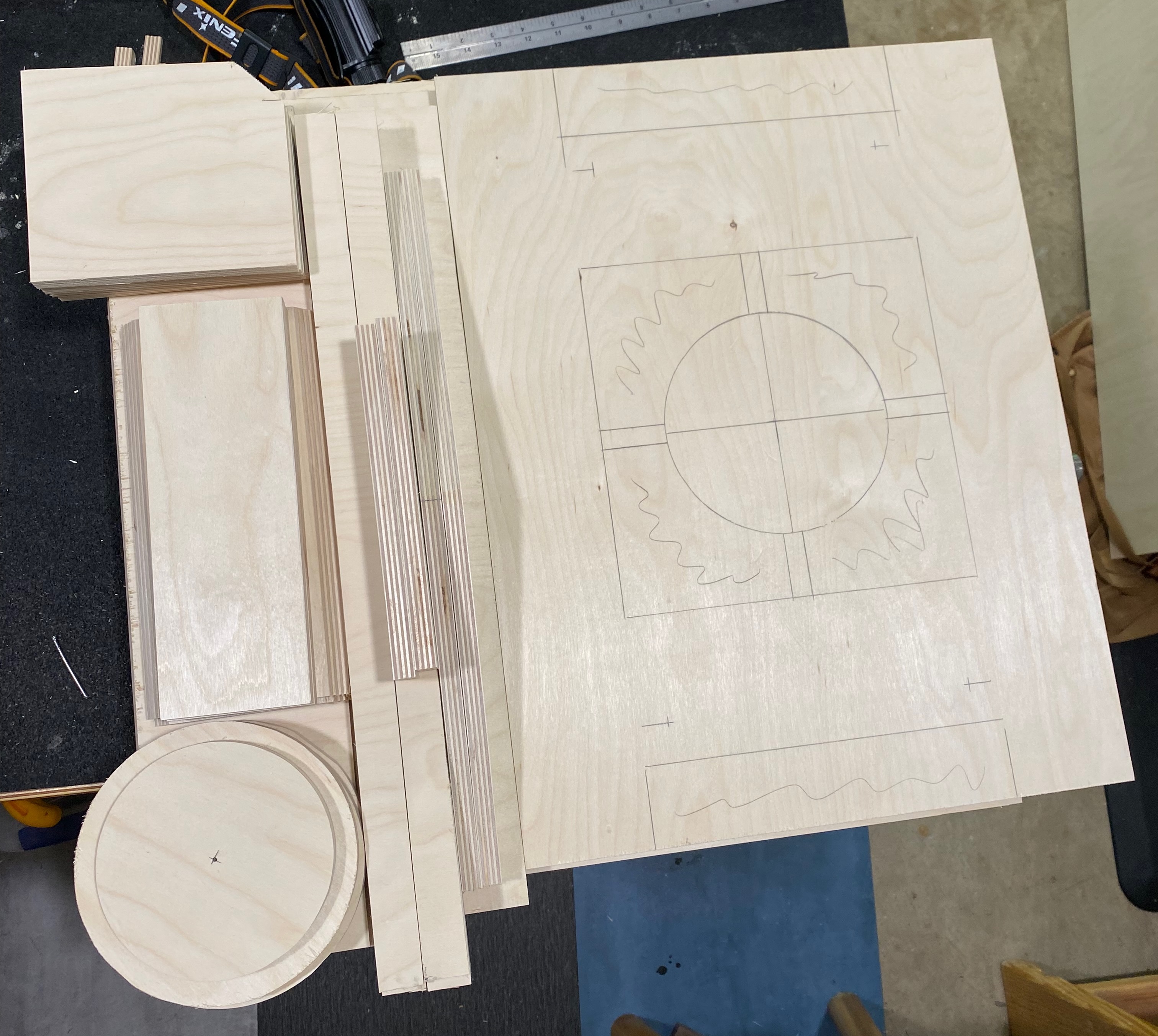

I was visiting my local hardwood supplier, and much to my surprise, they had BB ply!
Sourced a fresh new Delta Lite II 2515.
This should be another fun build.
I was visiting my local hardwood supplier, and much to my surprise, they had BB ply!
Sourced a fresh new Delta Lite II 2515.
This should be another fun build.
- Attachments
-
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
Re: J15 Build

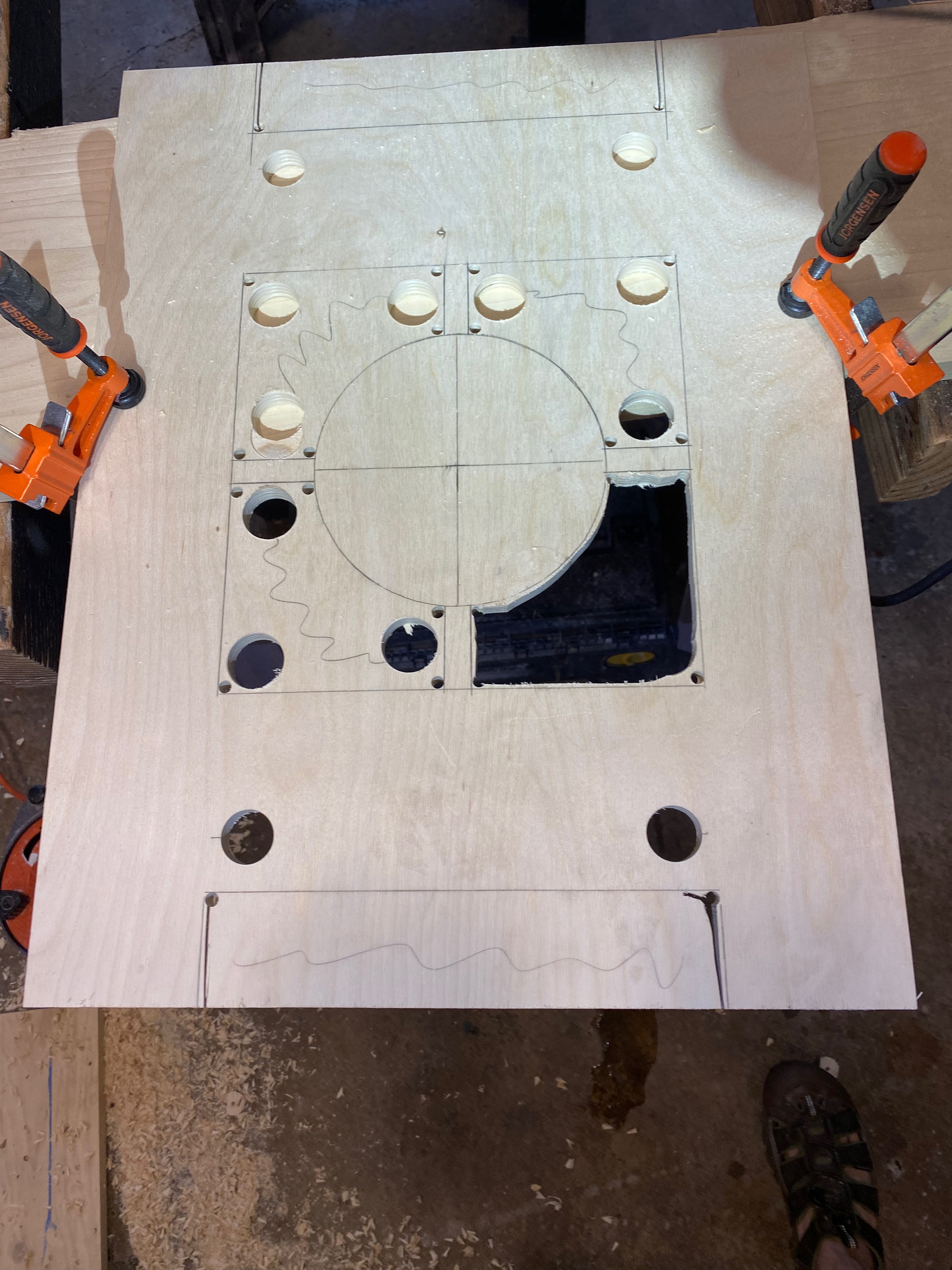

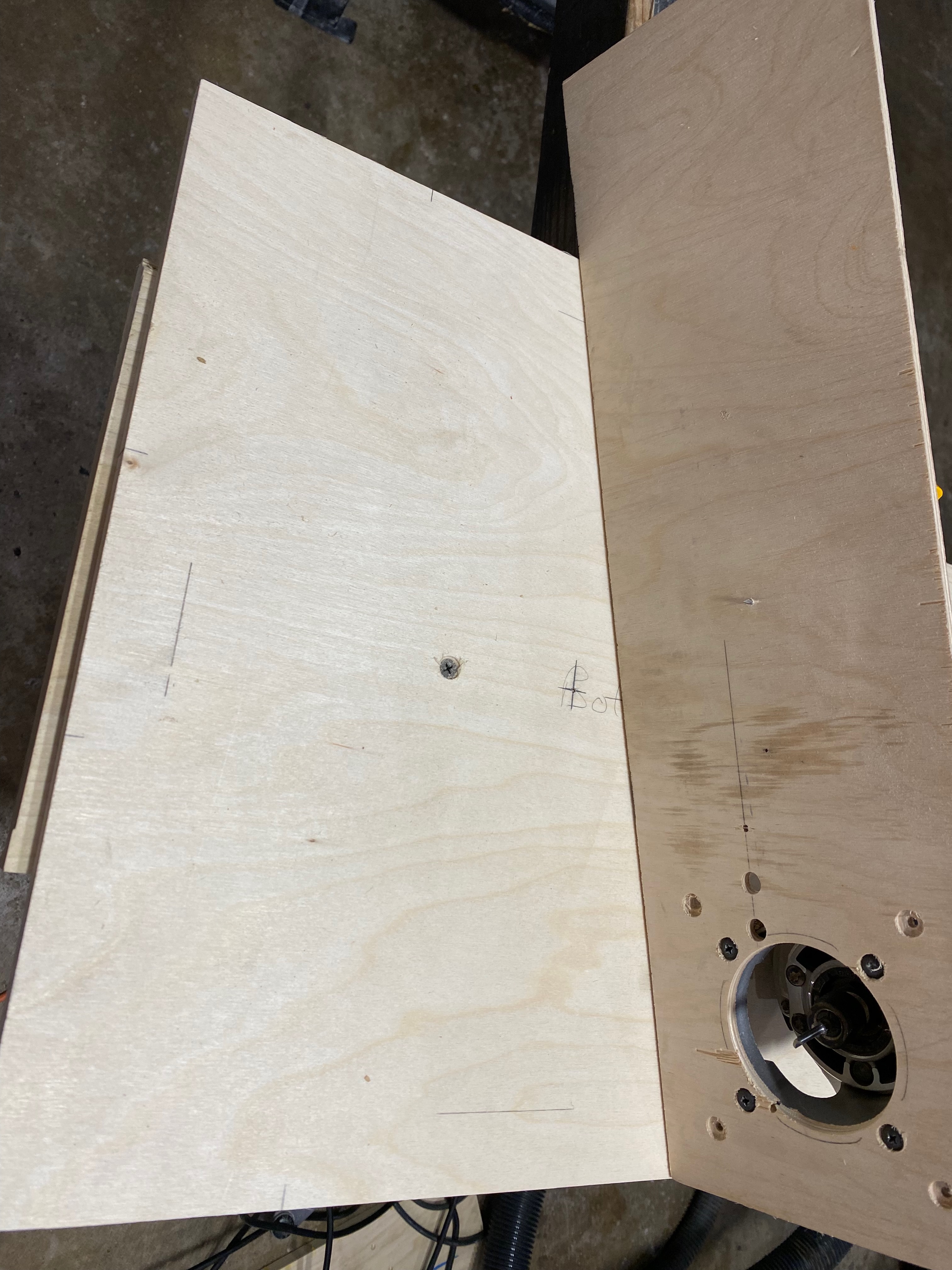

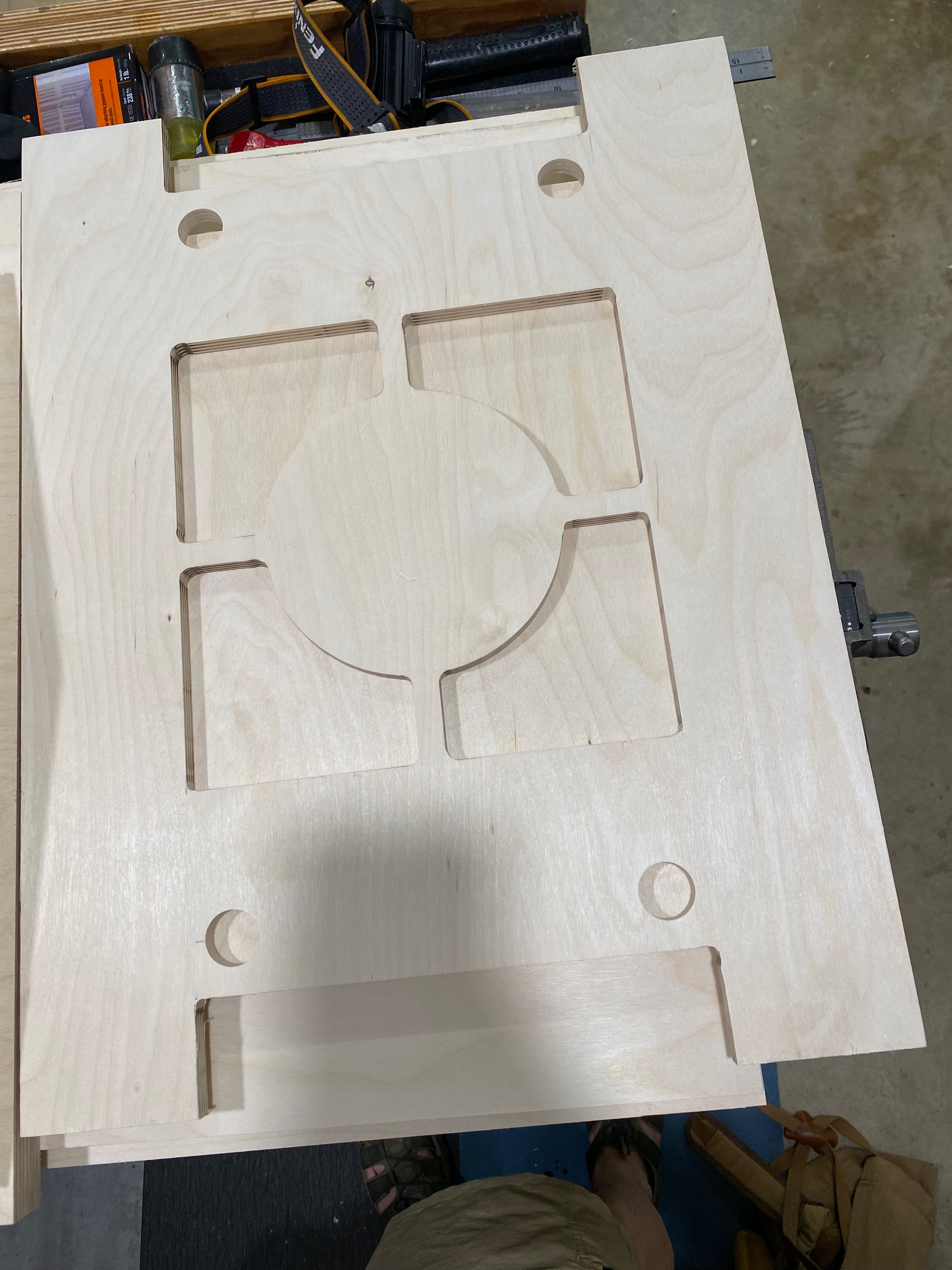

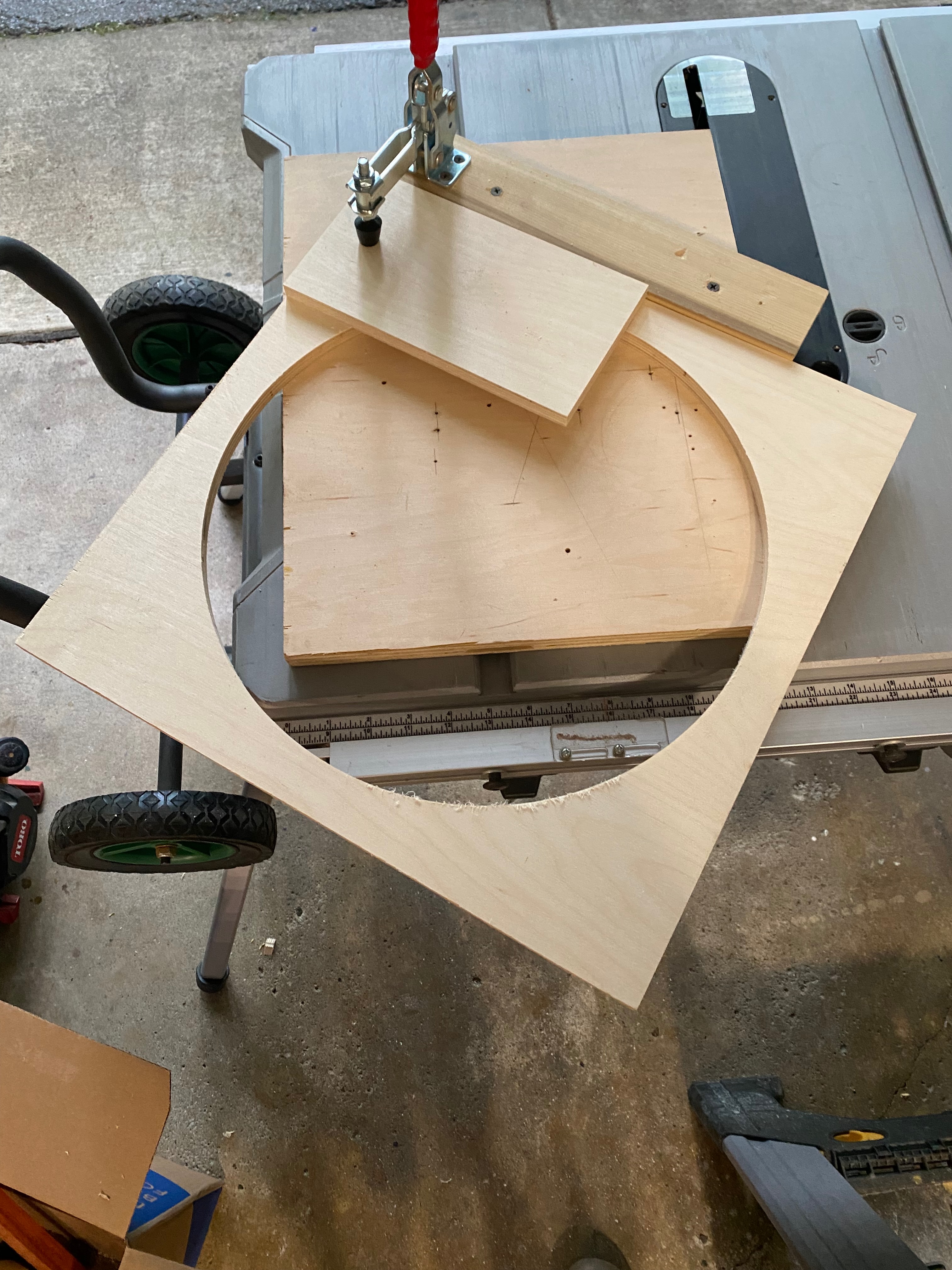

Making some slow progress. Pilot drilled radiuses in the corners, jig saw cut most of the waste, the set up a flush trim router for the rest of it. Clamped the six" diameter plug to the center, followed with the router. Then clamped straight edge across the length then the width of the baffle for all of straight cuts to finish. Getting closer to the glue up!!
- Attachments
-
-
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
-
Bruce Weldy
- Posts: 8538
- Joined: Fri Nov 27, 2009 11:37 am
- Location: New Braunfels, TX
Re: J15 Build
Nice work!
6 - T39 3012LF
4 - OT12 2512
1 - T24
1 - SLA Pro
2 - XF210
"A system with a few knobs set up by someone who knows what they are doing is always better than one with a lot of knobs set up by someone who doesn't."
-
Scott Brochu
- Posts: 2473
- Joined: Sat Mar 10, 2007 11:53 pm
- Location: Maine
- Contact:
Re: J15 Build
Looking clean and nice.
Drumming is a way of life.
ME LIKE TO HIT THINGS!
http://billfitzmaurice.info/forum/viewt ... 26&t=11232
ME LIKE TO HIT THINGS!
http://billfitzmaurice.info/forum/viewt ... 26&t=11232
Re: J15 Build
Yeah baby! That's looking really clean. Nice job!
Build in process - 2 WH6, one Alpha 6a loaded, one PRV Audio 6MB250-NDY loaded
Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421
Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
Re: J15 Build

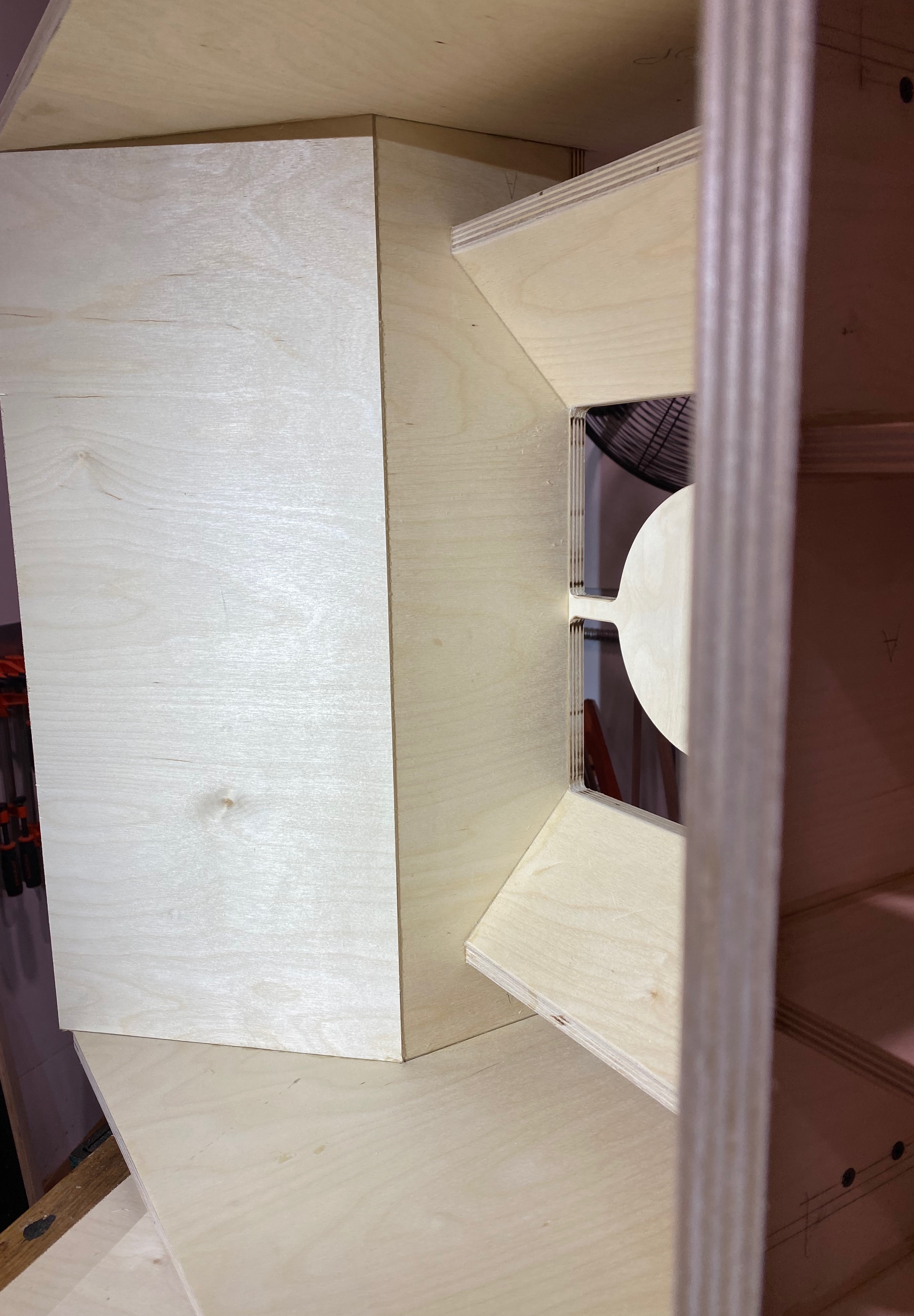

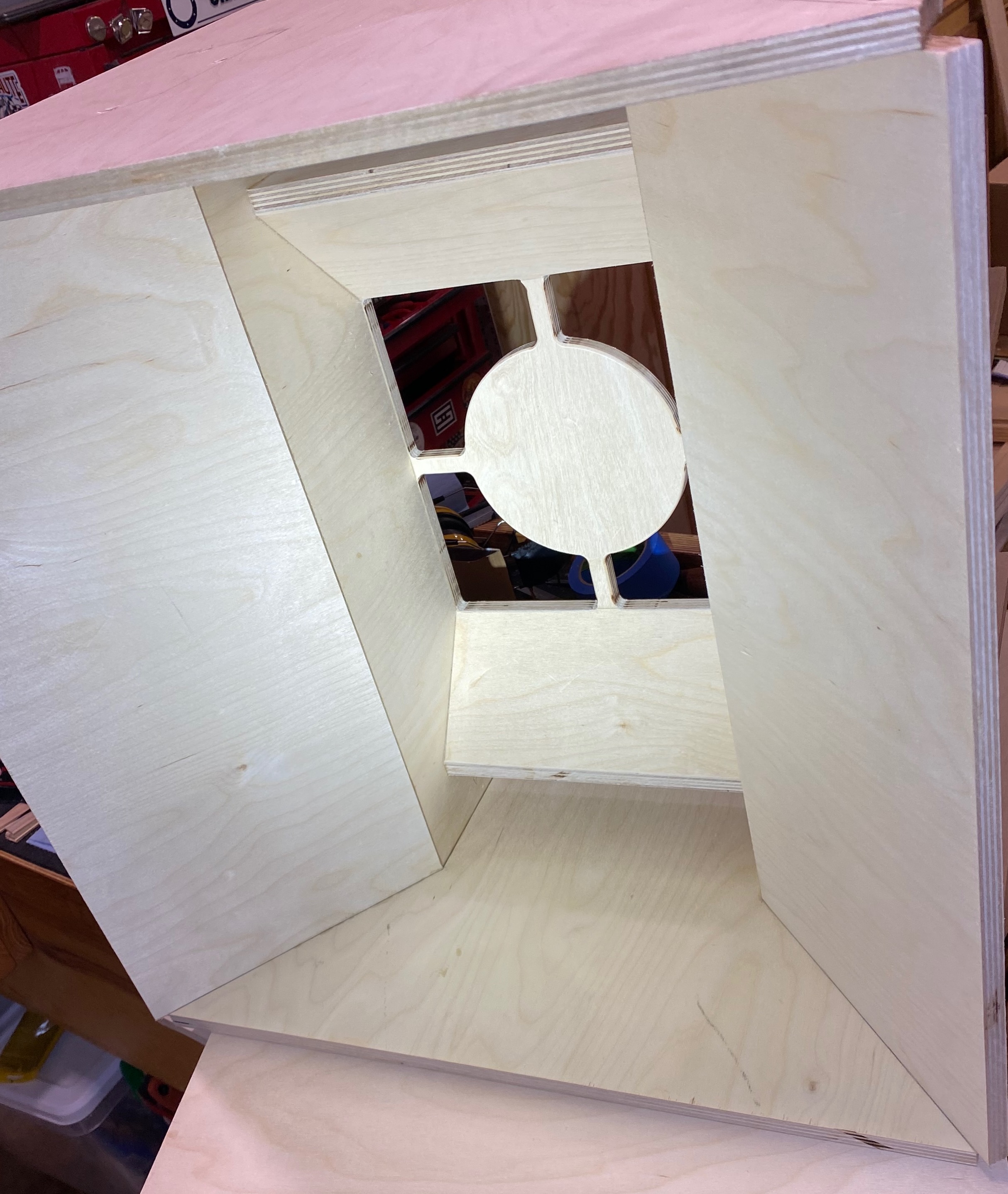

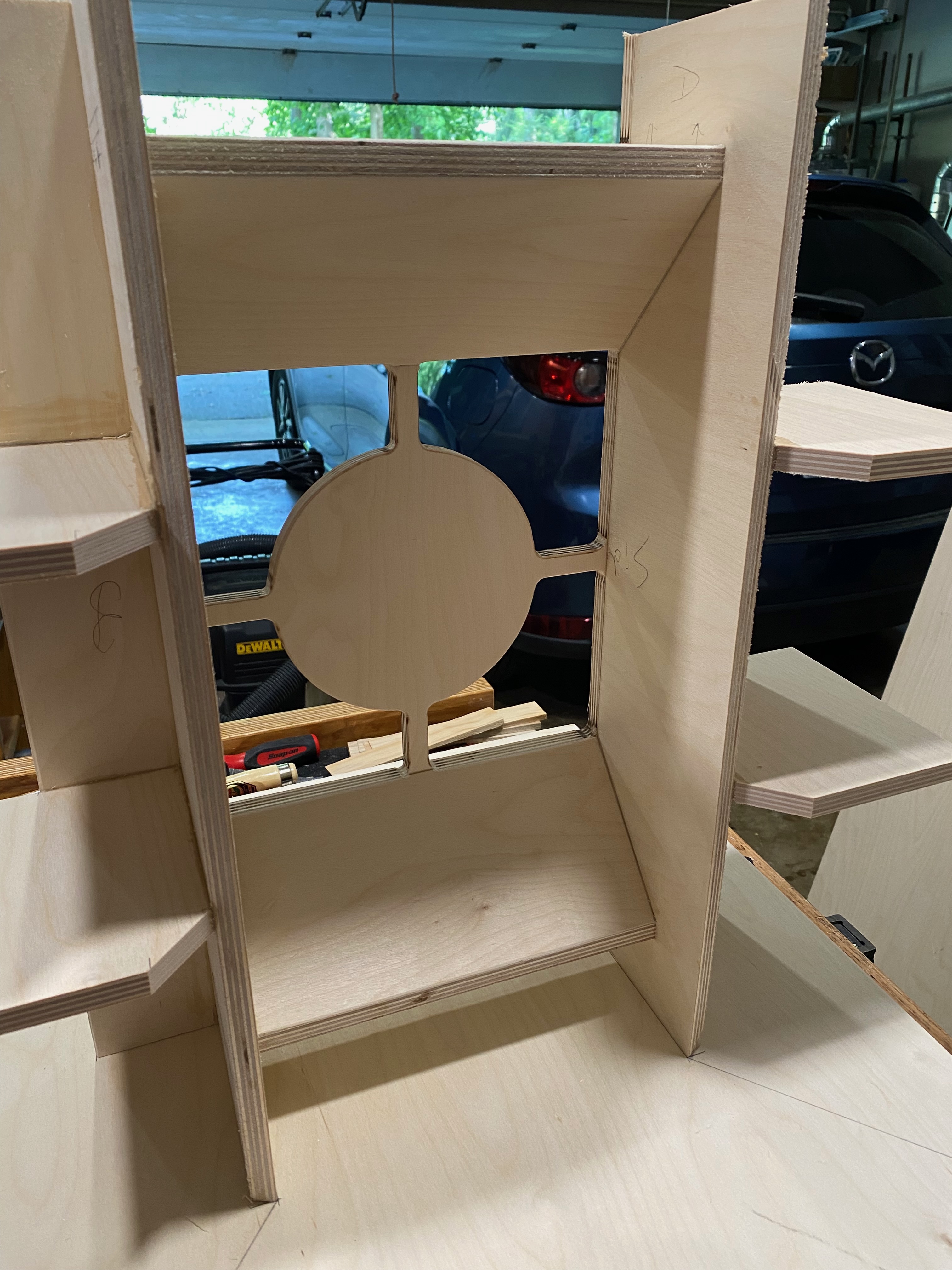

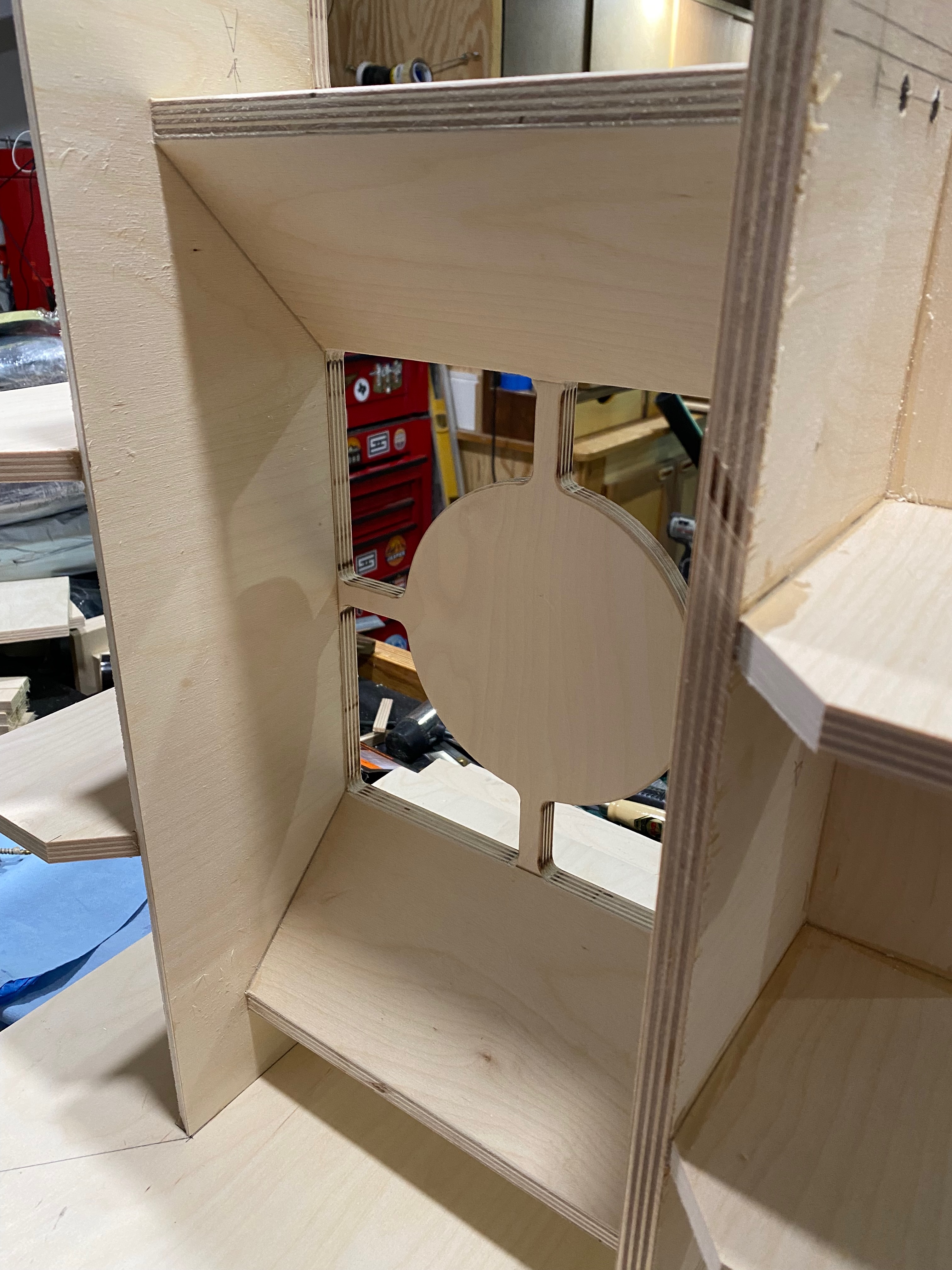

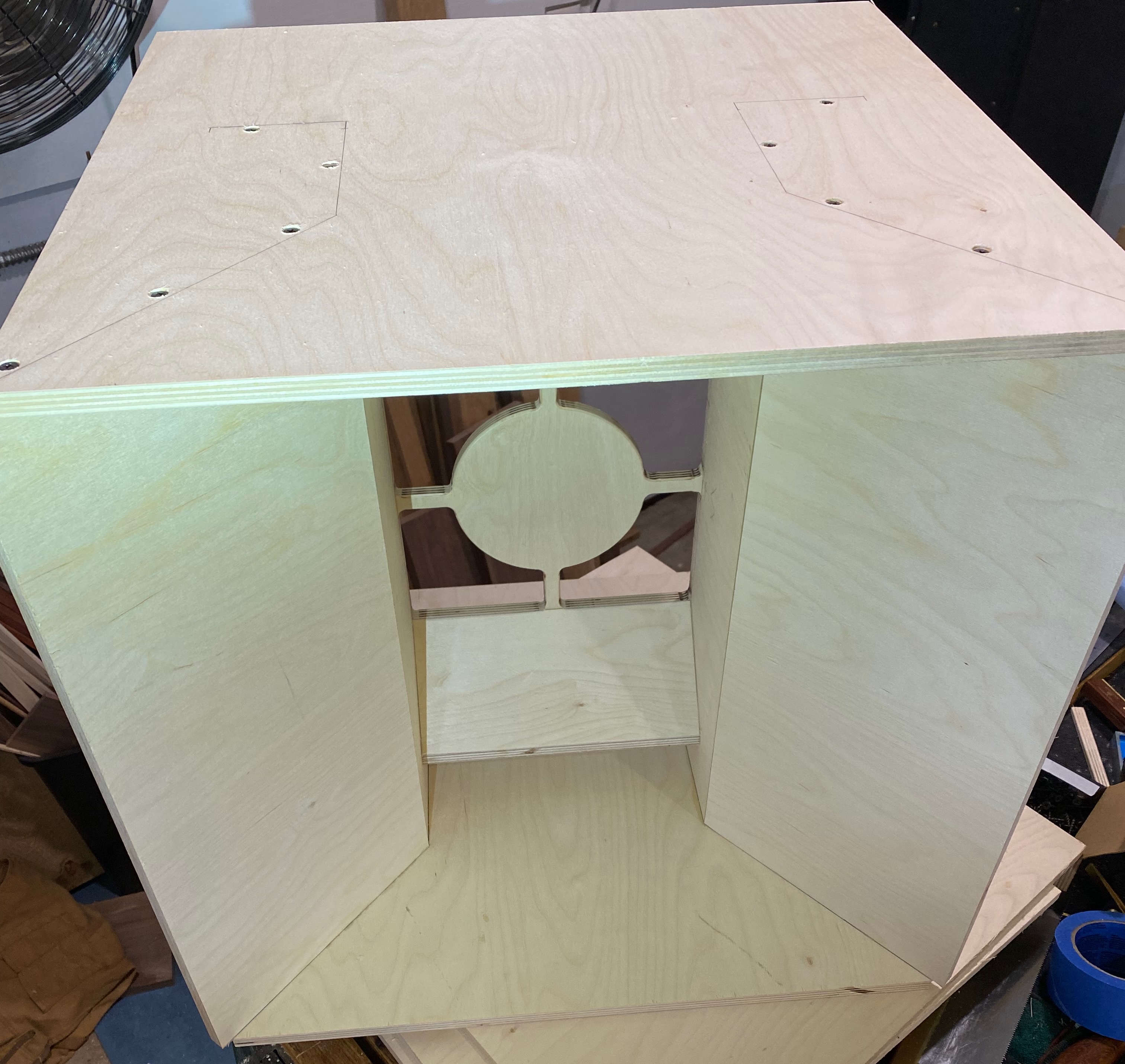

I got a lot of the glue up done for the middle part and have the baffle glued to the bottom. I'm ready for the mouth panels before the top. I'm going to lay it up, clamp, and drill for pilots. Then disassemble, glue, and finish with 1" countersunk #6 screws to hold them tight in place for the PL dwell time. So far, so good
I'm also taping off all of the exterior glue joints to keep the PL off of the panels.
I'm also taping off all of the exterior glue joints to keep the PL off of the panels.
- Attachments
-
-
-
-
-
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
Re: J15 Build

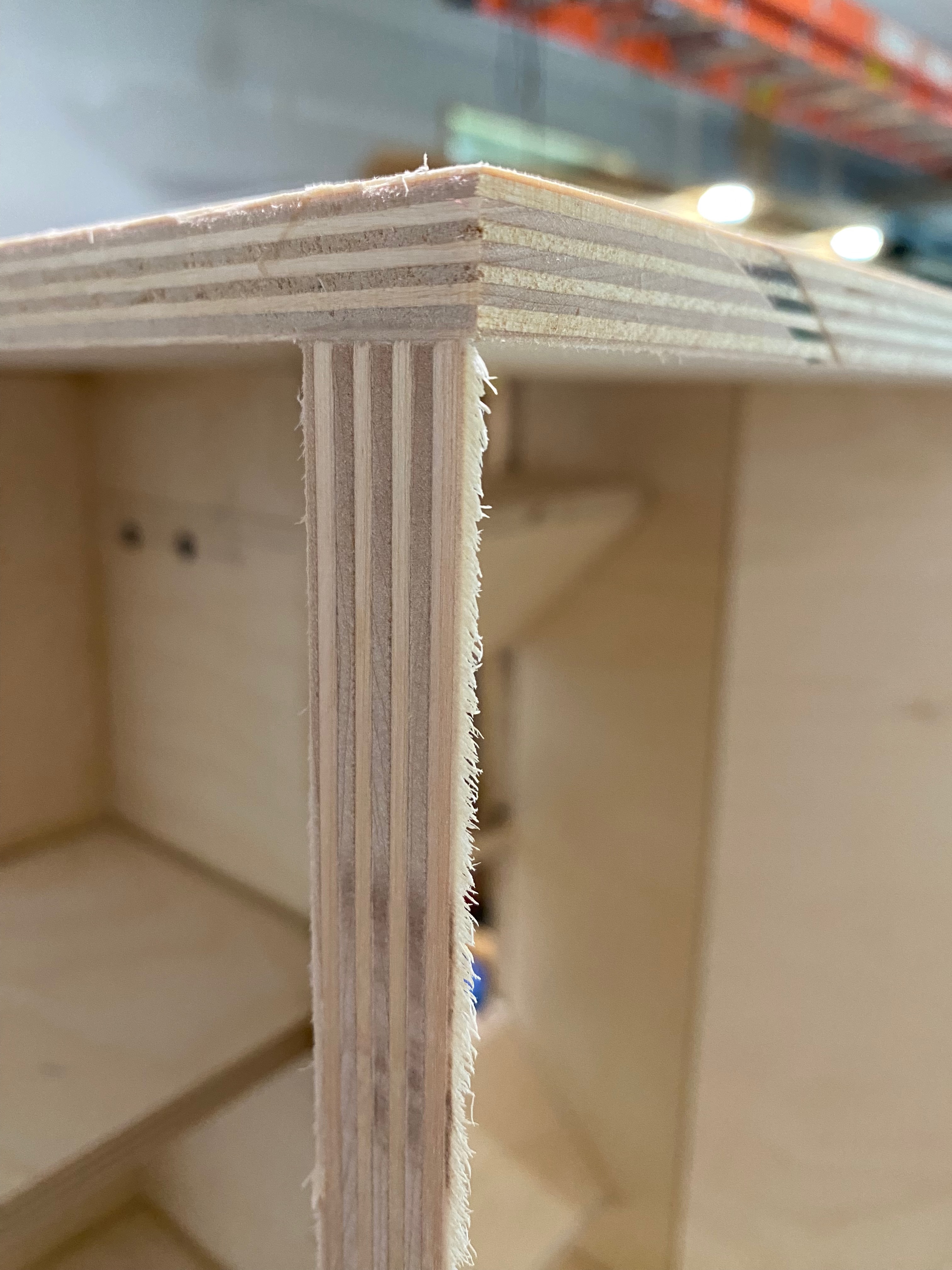

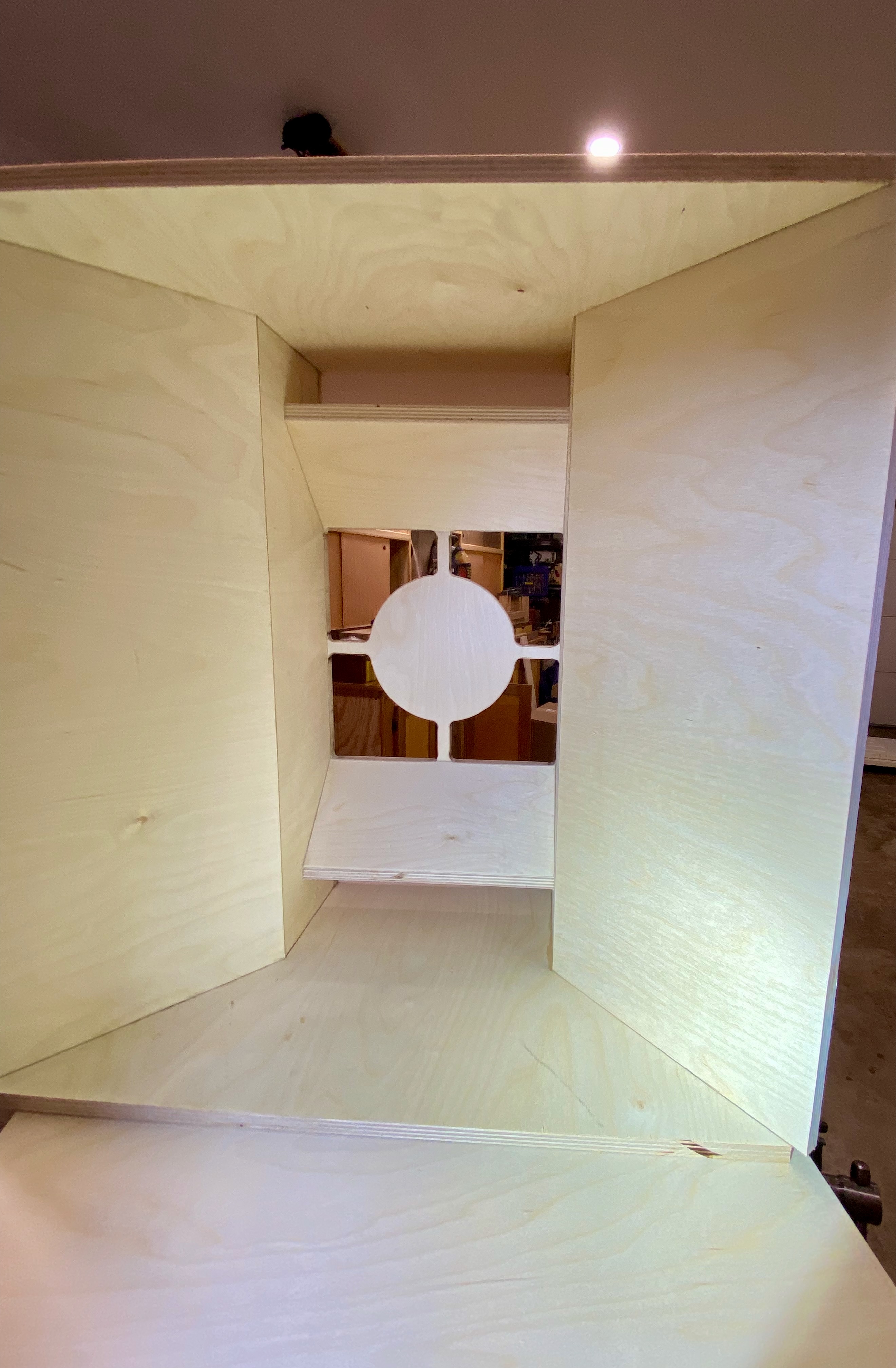

Just checked up on it after the PL cured and man, this thing is rock solid!
Re: J15 Build
Everything looks surgical and perfect. Really nice job.
Build in process - 2 WH6, one Alpha 6a loaded, one PRV Audio 6MB250-NDY loaded
Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421
Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
-
Clef's of Bass
- Posts: 89
- Joined: Sat Dec 26, 2020 4:21 pm
-
Bruce Weldy
- Posts: 8538
- Joined: Fri Nov 27, 2009 11:37 am
- Location: New Braunfels, TX
Re: J15 Build
Love that BB ply.....so fun to work with and then look at. Too bad we always end up covering it up.
6 - T39 3012LF
4 - OT12 2512
1 - T24
1 - SLA Pro
2 - XF210
