#46 Post by himhimself » Sat Apr 03, 2021 8:54 am

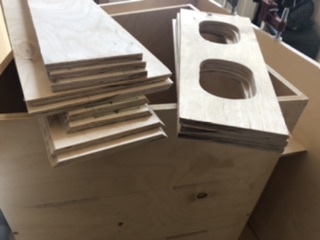

Panel 7s are in. Time to cut 8s and some more braces.
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

Seth
Posts: 1571
Joined: Thu Sep 10, 2009 8:06 pm
Location: Sacramento, California, USA
Contact:

Re: Things that go boom

#47 Post by Seth » Sat Apr 03, 2021 9:38 am

Coming right along :thumbsup:
Build in process - 2 WH6, one Alpha 6a loaded, one PRV Audio 6MB250-NDY loaded

Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#48 Post by himhimself » Sat Apr 03, 2021 10:16 am

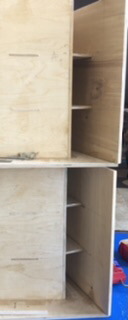

4/7 braces PL’d and pinned. Picture makes them look a little wonky but they are dead straight so far.
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#49 Post by himhimself » Sat Apr 03, 2021 11:46 am

Cut my panel 8s. Had some annoying tearout on the exterior side of the angle that meets up with panel 7 :cussing: Oh well, nothing that can't be filled, just a little more work. One is now installed but I used all 4 of my big clamps, so that's it for a while. Maybe will go make the little corner panel 9s to be ready for later. Happy with the progress though.
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#50 Post by himhimself » Sat Apr 03, 2021 1:53 pm

Sun’s out. Saw’s out. On a roll, so got all the corner panels cut, plus all the braces except the big ones. Not sure if I’ll do something different there or just copy my first two. Time to clean up for the day and enjoy a gift from some friends :wink: :wink:
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#51 Post by himhimself » Mon Apr 05, 2021 4:57 pm

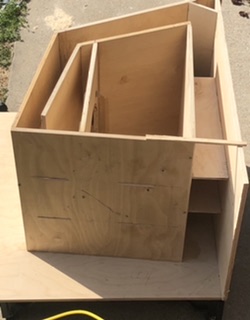

Panel 8s are in, as well as panel 9 corners and 8/2 braces.
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#52 Post by himhimself » Mon Apr 05, 2021 5:03 pm

Used a pattern following router bit and a template to cut hand holds into the top edge of the panel 7s. Such a clean, easy way to cut those in. I put a piece of quarter round behind in the corner, and little triangles at the ends so crap can't fall down in there (or kids stick candy wrappers and boogers inside...). I only put the cutout on 7, since that's where I reach over and grab when tilting them back onto the wheels. Will probably retrofit the same onto Tuba's 1 and 2.
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#53 Post by himhimself » Mon Apr 05, 2021 5:10 pm

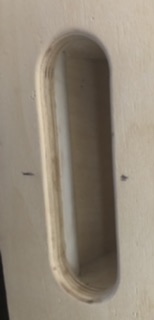

Pic of the panel 7 grips.
Also, Amazon delivered a roll of ofc 14g for the internal wiring, plus a pack of speakons. I have feet, corner casters, corners, driver screws, black latex and duratex. Might have to see if I have any gasket tape for the access door, otherwise I think I have everything I’ll need to finish these in a few weeks.
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

Seth
Posts: 1571
Joined: Thu Sep 10, 2009 8:06 pm
Location: Sacramento, California, USA
Contact:

Re: Things that go boom

#54 Post by Seth » Mon Apr 05, 2021 9:08 pm

I'm a sucker for clean looking and comfortable hand holes. Yours look awesome!
Last edited by Seth on Mon Apr 05, 2021 10:21 pm, edited 1 time in total.
Build in process - 2 WH6, one Alpha 6a loaded, one PRV Audio 6MB250-NDY loaded

Two 2x6 shorty SLA Pro's
One T39, 16", 3012LF loaded
Tall AutoTuba, 20" wide, 2x 8" MCM 55-2421
TruckTuba, 8½" wide, 2x 8" MCM 55-2421

Rich4349
Posts: 696
Joined: Wed Jul 30, 2008 10:18 am
Location: Kankakee, IL

Re: Things that go boom

#55 Post by Rich4349 » Mon Apr 05, 2021 9:59 pm

Seth wrote:
Mon Apr 05, 2021 9:08 pm
I'm a sucker for clean looking and comfortable hand holes. You're look awesome!
8)
2 DR250s, 2 27" Lab15 T-60s, 2 30" Neo Titan 39s, 1 Autotuba...and looking for more!

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#56 Post by himhimself » Tue Apr 06, 2021 6:47 pm

Just a bit of progress tonight, straightening up panels 10 and 12.
So when I bought my 5x5 sheets of 1/2" BB for my first two tubas a few years back in Indy, I picked up enough sheets to make a total of four that I ultimately wanted. They were cheap at the time, around $20 I think at DSI - great place. Based on some posts I read recently, seems ply has gone up!
Anyway, the 20x20 panels I had grabbed from Menards were perfect and square for using as my middle panels, and I didn't want to jack that up so left them as they were. However, 60" can't quite make 3x20" with the saw cuts out of the 5x5 sheets, so I used by jigsaw to cut the 30x60 chunks into 3 20x30 pieces for panels 8, 10 and 12. The jigsaw's thin blade let me keep the maximum amount of ply, but the cuts weren't perfectly straight, so I strapped on a guide and used my trim router to get them square. Should be good to go now. I can't seem to get truly perfect cuts with my circular saw, jigsaw, or table saw (they're all pretty cheap tools), even using jigs, but the router was the bomb for fixing up the janky cuts.
Everything else on my assemblies has cured, and they are sooo freaking solid. BB with bracing makes for a stupid strong box!!!
I know, I know, PL can fix a multitude of sins with regard to the cuts, but it still bugs me if the pieces don't join up square.
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#57 Post by himhimself » Wed Apr 07, 2021 5:20 pm

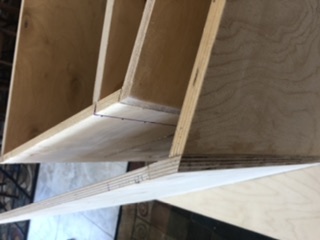

One panel 10 and braces in. Not enough big clamps for the other cab. Still really square :hyper: Used a few 23g pins for the initial alignment, then cranked on the clamps and pumped in some 18g brads. Super solid.
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#58 Post by himhimself » Wed Apr 07, 2021 5:44 pm

Another worthy tip, I believe from Bruce: when mating up the outside corners, leave the overlapping panel long, and then cut it later. I scribed nice lines to show the where the butt joint goes, then bring them together and clamp and brad nail. Having the extra meat there makes clamping easier, and if something is off a little bit, it will get masked when trimming off the excess. Great idea.
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

himhimself
Posts: 513
Joined: Fri Nov 13, 2015 9:34 pm
Location: Bloomington IN

Re: Things that go boom

#59 Post by himhimself » Wed Apr 07, 2021 6:24 pm

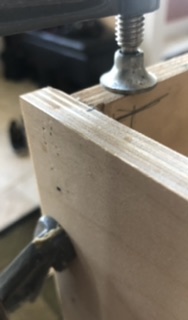

Here’s a pic in case my description wasn’t the best...
Attachments
2xT30 (20", 3012LF)
2xT30 (21", 3012LF)
4xOtop J-array (Beta12, melded/straight piezos)
Truck Tuba (MCM)
Next up: 2xJack12 or family of table tubas

Seth
Posts: 1571
Joined: Thu Sep 10, 2009 8:06 pm
Location: Sacramento, California, USA
Contact:

Re: Things that go boom

#60 Post by Seth » Wed Apr 07, 2021 7:13 pm

That's a great little piece of advice. I've had a couple edges/joints like that, that for whatever reason, ended up less than flush and I've had to add filler or glue on a strip of scrap trimmings on to makeup for the shortcoming. Always turns out okay, but to intentionally make it a little proud is genius. It's all getting a flush cut and round-over anyway. And it always looks so darn good afterward, like a clean shave. Thanks for passing that along :thumbsup:
