Jack 12

#1 Post by Bill Fitzmaurice » Sun Jul 05, 2009 2:14 pm

Jack 112 loaded with a Deltalite II 2512 and melded array.



Jack 112 loaded with Deltalite II 2512 and Kappalite 3012HO, woofer only.



Jack 112/2512 and dual ASD1001 HF drivers, compared to a Yorkville U15.




Jack 110/2510 and Jack 112/2512, woofer only.



Jack 112/2512/2xASD1001 and Omni 12.

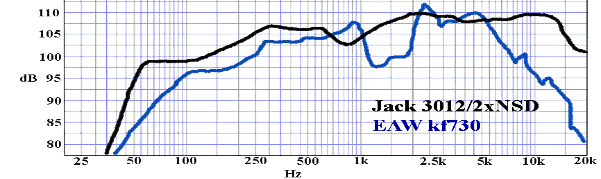

Jack 112/3012/2xNSD2005 compared to the $4900 EAW KF730.

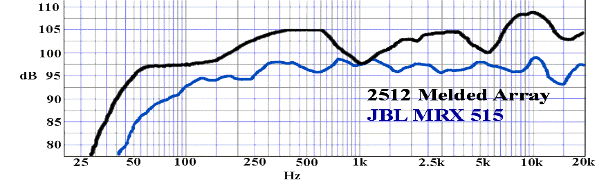

Jack 112/2512/Melded and JBL MRX 515.
