Well I will post this in parts, do to time and laziness. Here is my center channel design, I have hidden the fronts so the two bass drivers can be seen. I will also post picts of the GW 4028 so you can judge vs the Dayton drivers on another date.

Well, I just got my GW-4028, dam they are ugly. After thought, I should have bought the HiVi. Flush mounting is outa the question. So maybe mount them from the back of the baffle. Any one else have an idea?

To the regular helpers in the forum, I had to look at the original post and refresh my memory of what his intentions are. It's a modified design. Might be worth a peek again. Could i use a dsp instead of the designed crossover? Thinking about using Dayton Audio KABD-4100 4 x 100W. or simular amp to...

First and most important, Thank you for responding and giving me input. I am asking will there be any major, auditable effect to increasing the height of the cabinets interior dimension to 8" keeping all other dimensions the same? It won't make any appreciable difference. The stock dimension is...

Feel like I'm in english back in High school, Yes, I am asking will there be any major, auditable effect to increasing the height of the cabinets interior dimension to 8" keeping all other dimensions the same?

not sure,, that helped, but thank you for reply. Always amazed by forums designed to help. well then i guess i will go off what believe would work. Use the 8" internal dimension and adjust the depth to make the Vas the same.

Ok, next question while I'm waiting for the last one. Could i use a dsp instead of the designed crossover? Thinking about using Dayton Audio KABD-4100 4 x 100W. or simular amp to drive the bass and sla. Never used one of these and not sure of setup, so any help would be appreciated and needed.

Its been awhile, Rodeos in Los Vegas and work. I am about to cnc my parts and wanted to check the tweaks I made.
I designed the cabinet to be 8" interior height vs the 7". Do I need make sure its 7". I believe I read in a post that the vas is not critical for this design.

Roger.. check out "MiniDSP" for signal, and I also like "Sure Hifi" for board amps & power source I have planned to use the miniDSP for my outside stereo system, and thought about using it with this but was going to need help with that. I was kinda looking into the Dayton am...

Would putting a shelf under the shelf produce the same effect if it were 5cm under the speaker? Not really, unless the shelf was the same size as the floor. You see, it's the floor plane that's allowing loading. Floor loading would add some (say 3) dB in some of the sub frequencies. That would be m...

First off Thank you very much for all your input. :hyper: I was working at the cabin this weekend, sorry for the late response. Hi, and welcome! :) It/they would need to be horn loaded, but if you were prepared to lower the bottom of your sub cabinets to say 5cm from the floor, you would at least ge...

If it makes a difference the 8" is a sealed box design of .63 ft^3 not ported.

Is there a sub you would recommend size 6"-8" that would work in a cabinet of that size. I am just looking to get additional low end.

Well yes I like to tinker, and no it does not always work out. I am in the process of build a cabin,,"4 yrs" and I am close to furniture, stage. I am very European Modern design, All cabinetry Kitchen and bathroom are a floating design, and I would like as well to have this shelf be the sa...

final look

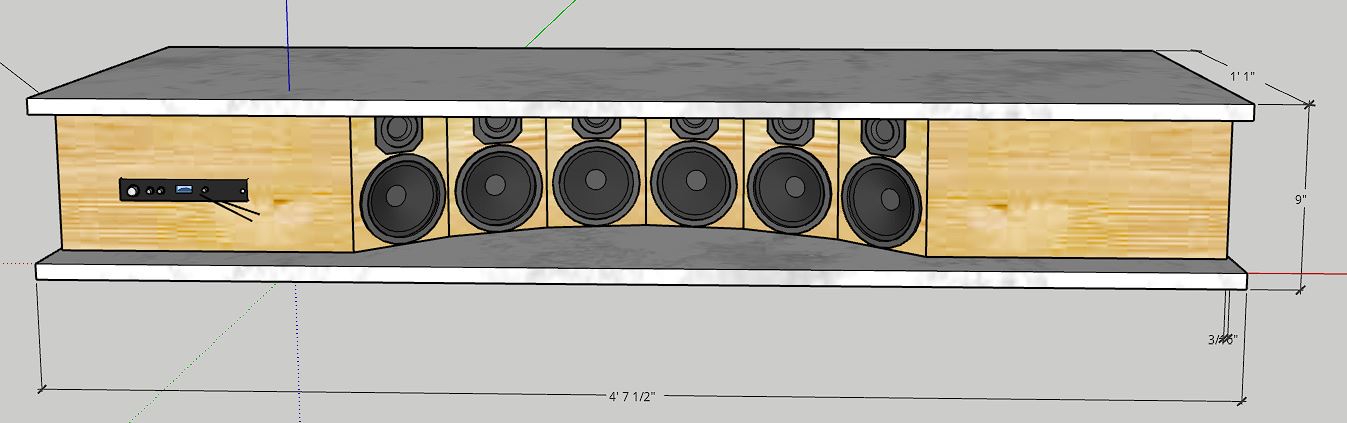

I am designing/making a floating center channel shelf. The center channel is a SLA design from Bill Fitzmaurice. I am also making a portion of the cabinet a 8" subwoofer. I would like to make sure that i have selected the correct bass for the cabinet space. I will be attaching 4 satellite speak...
